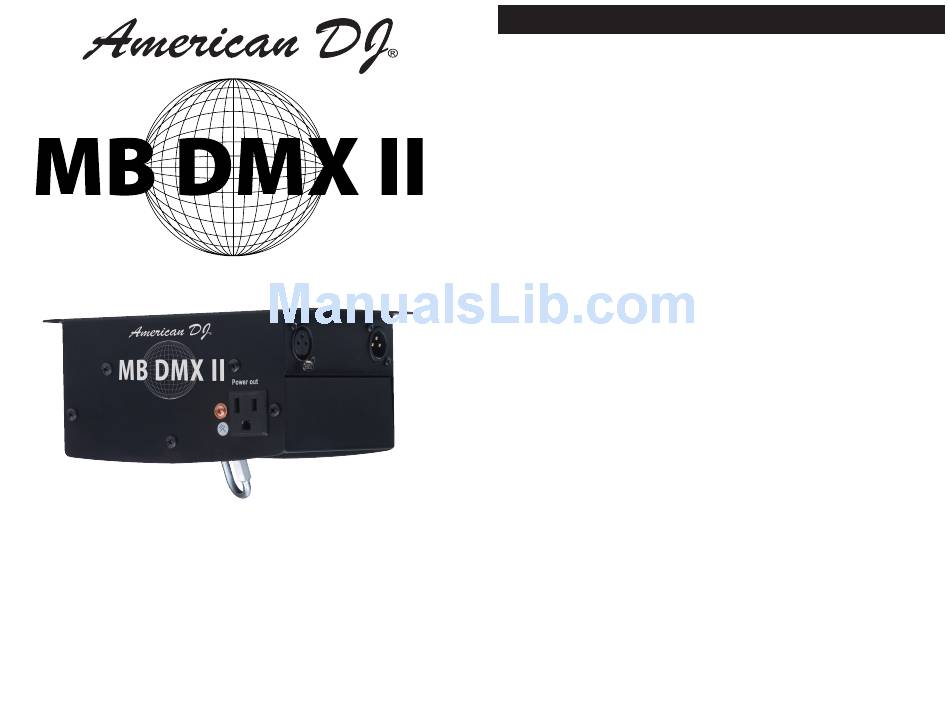

User Instructions
4/08
American DJ
®
6122 S. Easterns Ave.
Los Angeles Ca. 90040
www.americandj.com

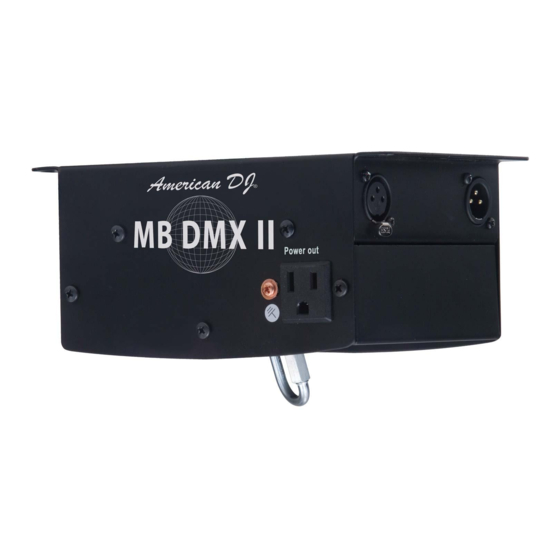

MB DMX II™
Unpacking.....................................................................................3
Introduction..................................................................................3
Customer Support.............................................................................3
Safety Precautions...............................................................................4
Features.........................................................................................5
Registration..............................................................................5
DMX Linking...................................................................................6
Data Cable Requirements............................................................6
Termination................................................................................7
5 Pin Conversion.........................................................................7
Linking...........................................................................................8
Operating Modes
Stand Alone.................................................................................10
Master/Slave..................................................................................10
DMX ......................................................................................11
Mounting...................................................................................12
Breaker Reset.....................................................................................12
DMX Traits......................................................................................13
Master/Slave Quick Reference Chart.................................................14
Warranty.........................................................................................15
Specifications..............................................................................16
©American DJ Supply® - www.americandj.com - MB DMX II™ Instruction Manual Page 2
General Information

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MB DMX II and is the answer not in the manual?

Questions and answers

Summary of Contents for American DJ MB DMX II

  • Page 1: Table Of Contents

    DMX ..................11 Mounting...................12 Breaker Reset..................12 DMX Traits..................13 Master/Slave Quick Reference Chart..........14 Warranty..................15 Specifications................16 User Instructions American DJ ® 6122 S. Easterns Ave. Los Angeles Ca. 90040 www.americandj.com 4/08 ©American DJ Supply® - www.americandj.com - MB DMX II™ Instruction Manual Page 2...
  • Page 2: Mb Dmx Ii

    Slave. The MB DMX II™ allows you to control the operation of a mirror ball • D uring long periods of non-use, disconnect the unit’s main power motor as well as the lamps via DMX operation. You may also link several •...
  • Page 3: Features

    MB DMX II™ Product Registration different manufactures to be linked together and operate from a sin- The MB DMX II™ carries a one year (365 days) limited warranty. gle controller, as long as all fixtures and the controller are DMX com- Please fill out the enclosed warranty card to validate your purchase.
  • Page 4: Termination

    Pin 3 Pin 3 Blackout Button Not Used Do Not Use Not Used Do Not Use ©American DJ® - www.americandj.com - MB DMX II™ Instruction Manual Page 7 ©American DJ® - www.americandj.com - MB DMX II™ Instruction Manual Page 8...
  • Page 5: Operation

    DMX controller to access the different traits associated with the operating mode. Failure to disconnect the power supply after chang- MB DMX II. A reference of different DMX traits is printed on page 21 ing the operating mode may cause the unit to function improperly.
  • Page 6: Mounting

    1. The MB DMX II™ uses two DMX channels. Channel one controls until you hear it “pop” back in to place. If the breaker continues to pop, power sockets located on the side of the unit. Channel two stop using the unit and contact our customer support team, the unit control the motor’s rotation speed and direction.
  • Page 7: Dmx Traits

    The optional MINI/C may be used during Master/Slave operation to stop motor rotation and to blackout the electrical sockets ©American DJ® - www.americandj.com - MB DMX II™ Instruction Manual Page 13 ©American DJ® - www.americandj.com - MB DMX II™ Instruction Manual Page 14...
  • Page 8: Warranty

    This warranty is the only written warranty applicable to American DJ and American Audio Products and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published. MANUFACTURER’S LIMITED WARRANTY PERIODS: • All American Audio Products = 1-year (365 day) Limited Warranty (except V-Plus Series Ampli- fiers) • All American Audio V-Plus Series Amplifiers = 3-year (1095 day) Limited Warranty ©American DJ®...
