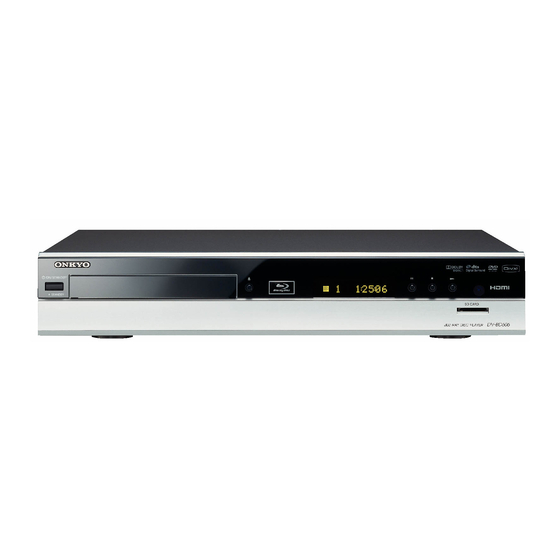

Onkyo DV-BD606 Quick Start Manual

Blu-ray Disc Player
Quick Start Guide
DV-BD606
Playable Discs and Files
This unit is compatible to play back the following discs / files.
Playable discs Logos
Blu-ray Disc
- BD-video
(single / double layer)
- BD-RE* ver. 3.0
(single / double layer)
(recorded in BDMV format)
- BD-R ver. 2.0 (single / double layer)
(recorded in BDMV format)
(unclosed discs may not be played back.)
DVD-video
DVD+RW (single layer)
DVD+R (single/double layer)
(finalised video mode discs only)
DVD-RW (single layer)
(finalised video mode discs only)
DVD-R (single/double layer)
(finalised video mode discs only)
CD-DA (audio CD)
CD-RW
CD-R
DTS-CD -
* Due to the intentional progression of the Blu-ray Disc format by its standard
setting authority, the company cannot guarantee or warrant the playability
of future extensions of the Blu-ray Disc format with this product.
Region Codes
This unit has been designed to play back BD-video with region "B" and DVD-video with region "2" or "ALL". You
cannot play back BD-video or DVD-video that are labelled for other regions. Look for the symbols on the right on
your BD-video or DVD-video. If these region symbols do not appear on your BD-video or DVD-video, you cannot
play back the disc in this unit. The letter or number inside the globe refers to region of the world. A BD-video or
DVD-video labelled for a specific region can only be played back in the unit with the same region code.
© Copyright 2008 ONKYO CORPORATION Japan. All rights reserved.
EN
Playable files Media
MP3 DVD, CD-RW/-R, SD Memory
Card (including SDHC),
JPEG miniSD Card, microSD Card
® DVD, CD-RW / -R
DivX
Readable cards Playable files / data
SD Memory Card (8MB - 2GB)
MP3, JPEG, picture-in-picture
SDHC Memory Card (4GB)
commentary, subtitles or
other extras for BD-ROM
miniSD Card (8MB - 2GB)
Profile 1 ver.1.1
microSD Card (8MB - 2GB)
For miniSD Card and microSD Card, the adapter is necessary.
miniSD Card adapter
miniSD Card
microSD Card adapter
microSD Card
"Blu-ray Disc" and are trademarks.
is a trademark of DVD Format/Logo Licensing Corporation.
DVD-video BD-video
2
E5J50ED_E5J51ED
1VM328578/
SN 29344909

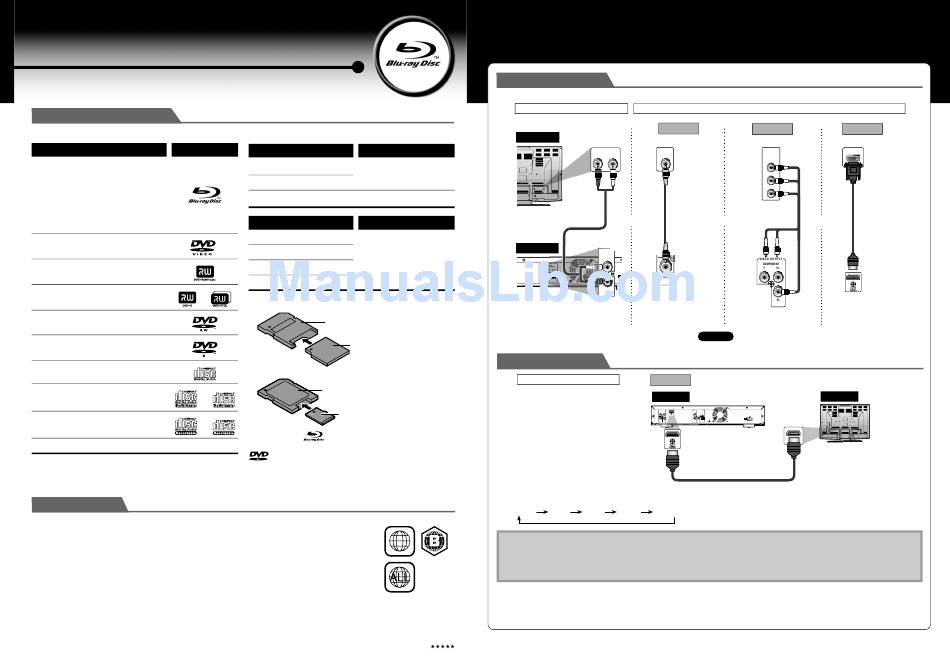

Basic Connections
Make one of the following connections, depending on the capabilities of your existing device.
AUDIO CONNECTION
Method 1
TV
analogue audio standard picture
AUDIO IN
VIDEO
R L IN
RCA video cable
RCA audio cable
(supplied)
and
(supplied)
this unit
AU
ANALOG
L
AUDIO OUTPUT IO OUT
ANALOG DIGITAL DIG
(PCM//BITSTREAM) (PCM//BI
L
COAXIAL COAXIAL
R
R
AUDIO OUTPUT VIDEO OUTPUT
(ANALOG L/R) (VIDEO)
HDMI Connection
AUDIO/VIDEO CONNECTION
Method 4
best audio/picture
this unit
VIDEO OUTPUT
COMPONENT
Y PR
OUT
HDMI HDMI
VIDEO PB
Press [RESOLUTION] to change the resolution of the video signal being output from HDMI OUT jack.
The video resolution changes as follows every time [RESOLUTION] is pressed.
480p/576p 720p 1080i 1080p 1080p24
Note
• You cannot select the video resolutions which are not supported by the connected TV.
• In order to get natural and high quality film reproduction of 24-frame film material, use an HDMI cable (High Speed HDMI Cable is
recommended) and select "1080p24" if the connected TV is compatible with 1080p24 frame input.
• "480p" will be displayed only when an NTSC disc or a 1080p / 24 frame material is being played back.
VIDEO CONNECTION
Method 3
Method 2
best picture
better picture
COMPONENT
DVI IN
VIDEO IN
Y
(Green)
P /C
B B
(Blue)
P /C
R R (Red)
component video cable
HDMI-DVI cable
(not supplied)
or or (not supplied)
(Green) (Red)
(Blue)
VIDEO OUTPUT HDMI OUT
(COMPONENT)
OR
TV
AUDIO OUTPUT
ANALOG (PCM//BITSTREAM) DIGITAL
L
COAXIAL OPTICAL
R
AC INLET
HDMI IN
HDMI cable
(not supplied)
EN
