EU155N Series - 230V 50Hz
Ice and Water Dispensers
Installation, Operation and Service Manual

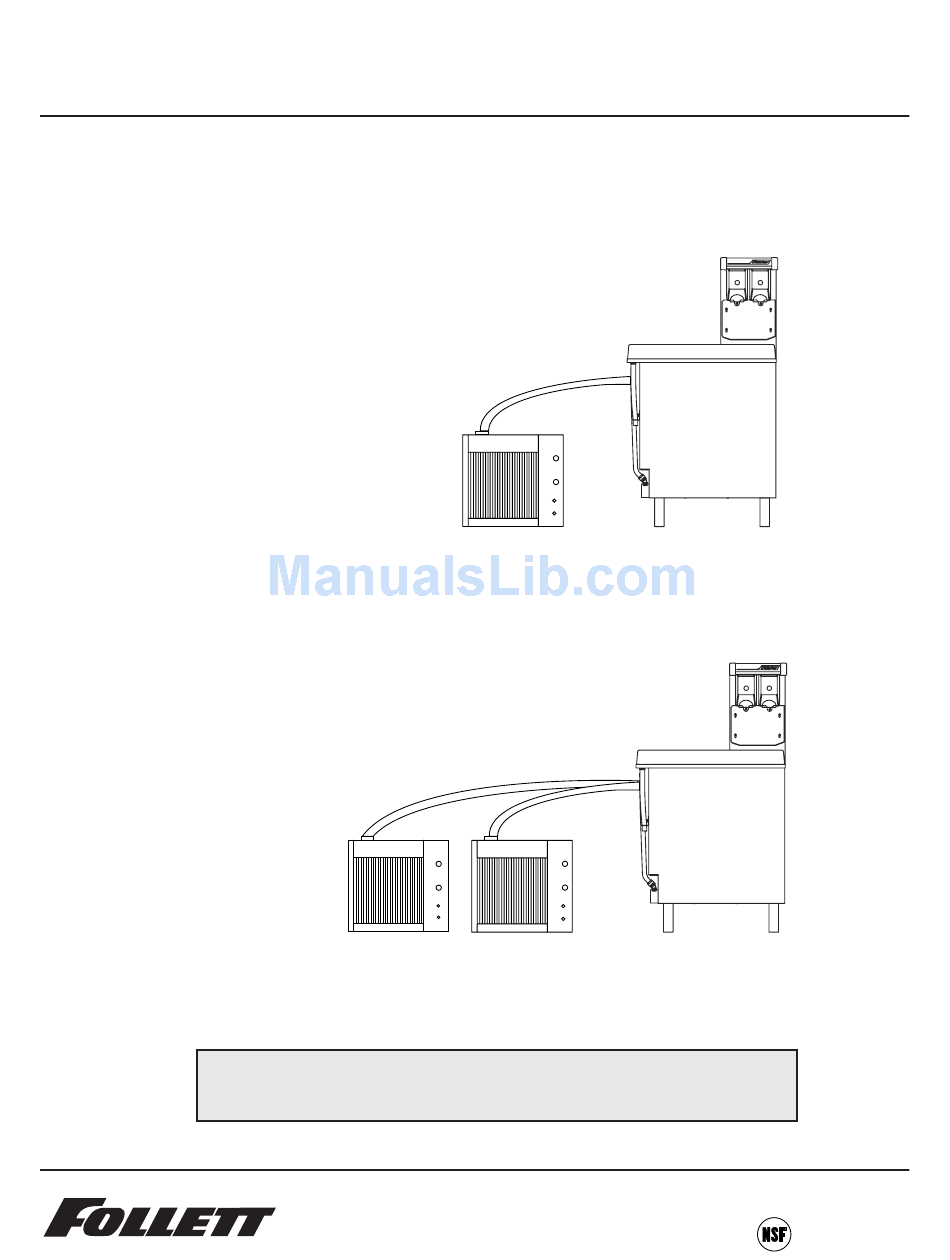

Automatic load units
with one icemaker
Automatic load units
with two icemakers
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • PO Box D, Easton, PA 18044
(610) 252-7301 • FAX (610) 250-0696 • www.follettice.com
®
00120303R00
Cool Ideas For Ice Management
Advertisement
Table of Contents
Related Manuals for Follett 230V 50Hz
Summary of Contents for Follett 230V 50Hz
