Morel HR35 Installation Manual

HARMONY BRICK WALL MOUNTING CABINET
SR35 / HR35

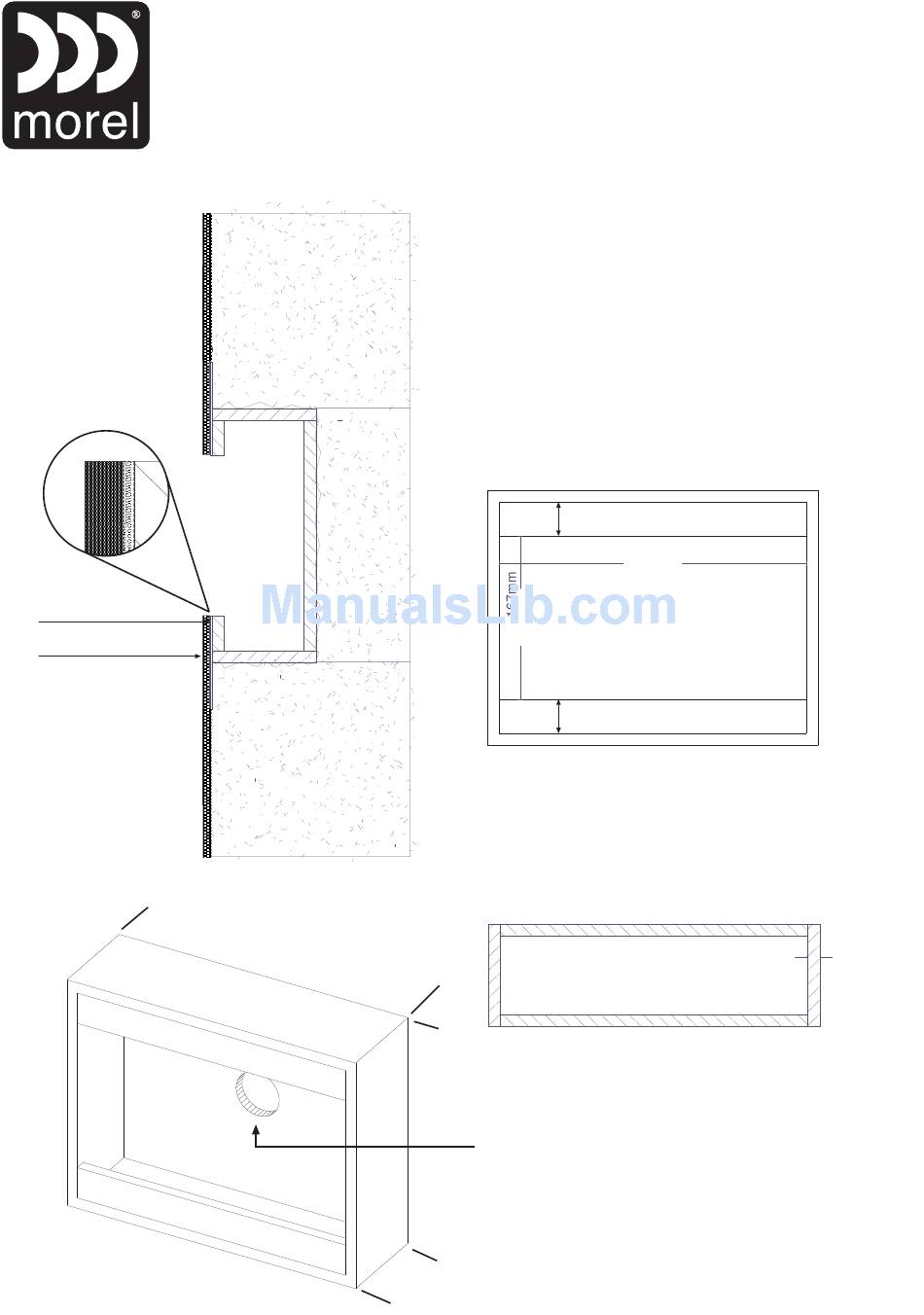

SIDE VIEW / ILLUSTRATION NO 1
Plaster net
Plaster & Paint
BRICKS
334mm
WIDTH
261mm
HEIGHT
105mm
DEPTH

MATERIALS

12 mm playwood
Plaster net

INSTRUCTION

A. Cabinet must be mounted flush with the naked wall (as
seen in illustration 1).
B. To avoid creaks in the finished wall or paint use plasterer
net (as seen in illustration 1).
FRONT VIEW / ILLUSTRATION NO 2
Playwood 35mm height
Opening
Playwood 35mm height
TOP VIEW / ILLUSTRATION NO 3

CABLES INLET

Make a hole 35 - 50 mm
in diameter for the speakers cables.
310mm
12 mm
playwood
