HARMONY BRICK WALL MOUNTING CABINET
SQ21 / HQ21

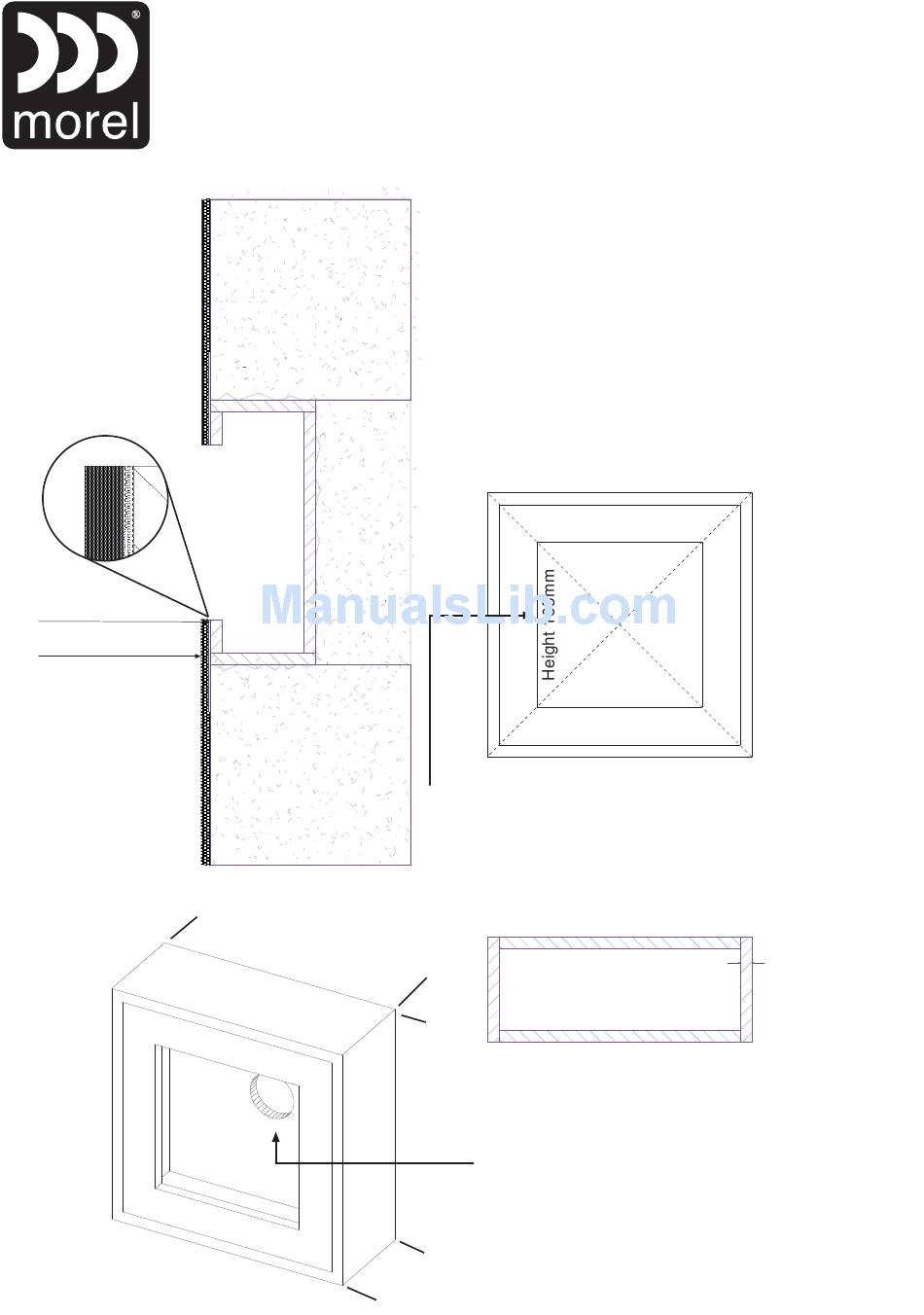

SIDE VIEW / ILLUSTRATION NO 1
Plaster net
Plaster & Paint
BRICKS
264mm
WIDTH
264mm
HEIGHT
105mm
DEPTH
MATERIALS
12 mm playwood
Plaster net
INSTRUCTION
A. Cabinet must be mounted flush with the naked wall (as
seen in illustration 1).
B. To avoid creaks in the finished wall or paint use plasterer
net (as seen in illustration 1).
FRONT VIEW / ILLUSTRATION NO 2
Width 164.5mm
Opening
Use Template to mark cutout.
TOP VIEW / ILLUSTRATION NO 3
CABLES INLET
Make a hole 35 - 50 mm
in diameter for the speakers cables.
12 mm
playwood
