Morel HO34 Installation Manual

HARMONY BRICK WALL MOUNTING CABINET
SO34 / HO34

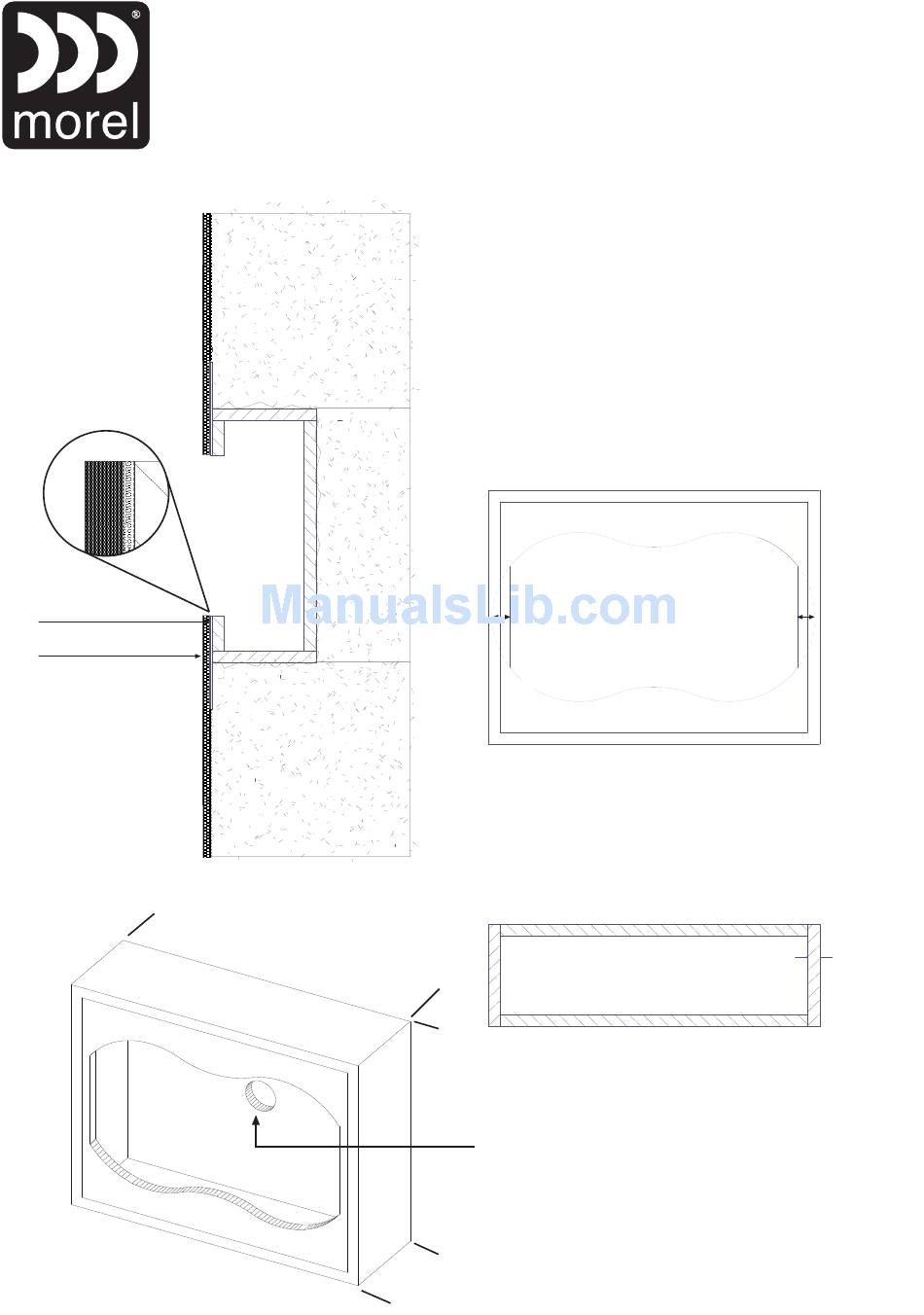

SIDE VIEW / ILLUSTRATION NO 1
Plaster net
Plaster & Paint
BRICKS
334mm
WIDTH
261mm
HEIGHT
105mm
DEPTH

MATERIALS

12 mm playwood
Plaster net

INSTRUCTION

A. Cabinet must be mounted flush with the naked wall (as
seen in illustration 1).
B. To avoid creaks in the finished wall or paint use plasterer
net (as seen in illustration 1).
FRONT VIEW / ILLUSTRATION NO 2
Use Template to mark a hole.
Trim 10 mm from left & right side
10
of the cardboard template
before marking the cabinet
front cutout.
TOP VIEW / ILLUSTRATION NO 3

CABLES INLET

Make a hole 35 - 50 mm
in diameter for the speakers cables.
10
12 mm
playwood
