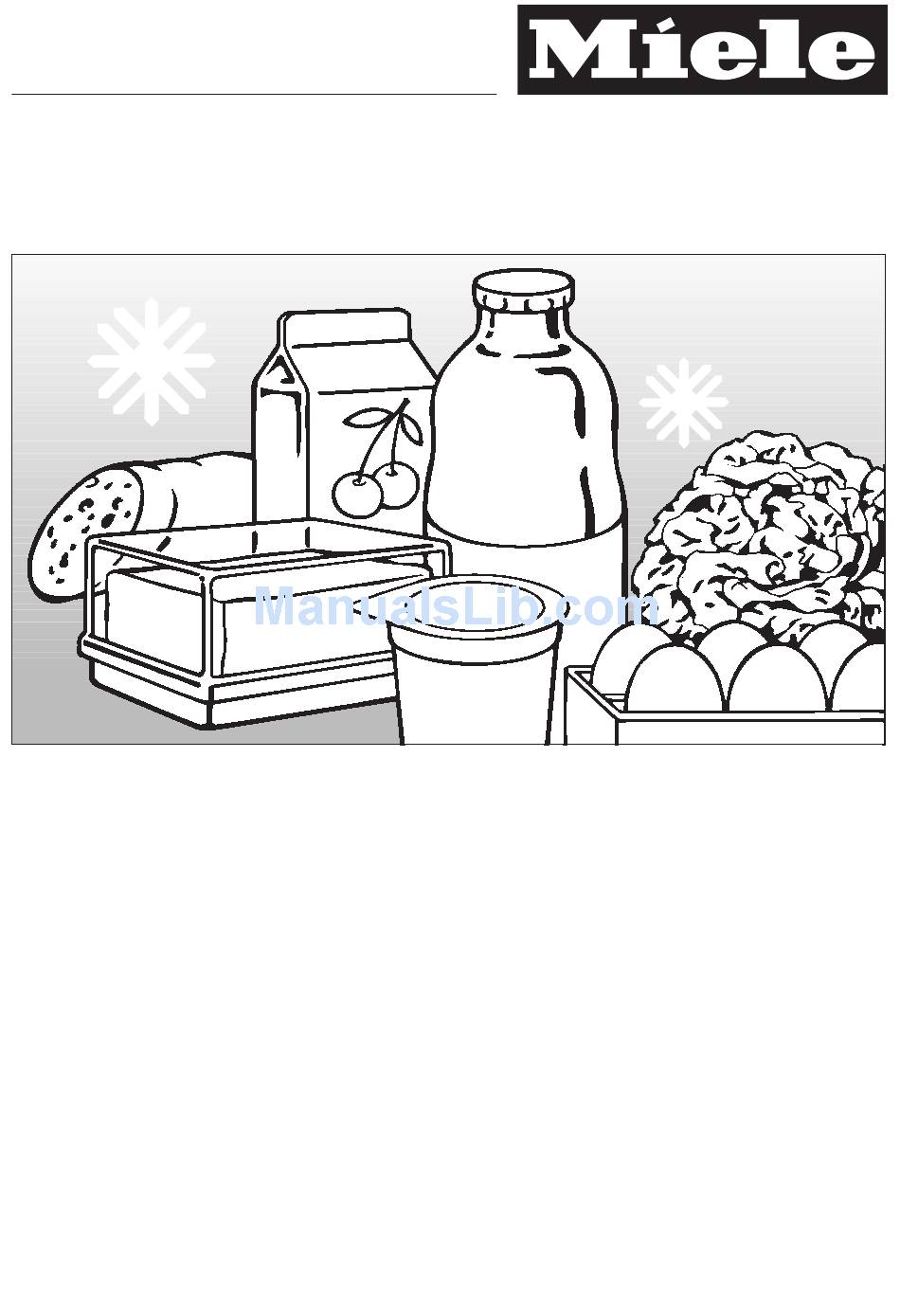

Operating and installation instructions
Refrigerator
with PerfectFresh zone
and Dynamic cooling
K 14827 SD
K 14827 SD ed/cs
en - GB
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time.
M.-Nr. 07 937 090

Advertisement

Table of Contents
loading

Related Manuals for Miele K 14827 SD

Summary of Contents for Miele K 14827 SD

  • Page 1 Operating and installation instructions Refrigerator with PerfectFresh zone and Dynamic cooling K 14827 SD K 14827 SD ed/cs en - GB To avoid the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time.

  • Page 2: Table Of Contents

    Contents Guide to the appliance ..........4 Caring for the environment .
  • Page 3 Contents Adjusting the interior fittings ........28 Moving the shelves .

  • Page 4: Guide To The Appliance

    Guide to the appliance a On/Off sensor e Temperature display b Super cool sensor f "Cooling" symbol c Sensor for setting a lower g Sensor for setting a higher temperature (X) temperature (Y) d Safety lock indicator light h Alarm off sensor (only visible when the Safety lock is (only visible when the door alarm activated)
  • Page 5 Guide to the appliance a Dynamic cooling fan b Interior lighting c Butter and cheese compartment d Universal container e Egg tray/Condiment tray f Bottle rack g Active charcoal filter holder h Adjustable shelves i Bottle shelf j Bottle divider k Condensate channel and drain hole l PerfectFresh zone, dry compartment...

  • Page 6: Caring For The Environment

    Caring for the environment Disposal of the packing Disposal of your old appliance material Electrical and electronic appliances often contain materials which, if The transport and protective packing handled or disposed of incorrectly, has been selected from materials which could be potentially hazardous to are environmentally friendly for human health and to the environment.

  • Page 7: Warning And Safety Instructions

    Any other usage is not supported by This appliance complies with all the manufacturer and could be relevant safety requirements. dangerous. Miele cannot be held liable Improper use can, however, present for damage resulting from incorrect or a risk of both personal injury and improper use or operation of the material damage.

  • Page 8: Technical Safety

    Warning and Safety instructions Technical safety The more coolant there is in an appliance, the larger the room it should Before setting up the appliance, be installed in. In the event of a check it for any externally visible leakage, if the appliance is in a small damage.
  • Page 9 The appliance must be isolated from the electricity supply during installation, maintenance and repair work. Faulty components must only be replaced by genuine Miele original spare parts. The manufacturer can only guarantee the safety of the appliance when Miele replacement parts are used.
  • Page 10 Warning and Safety instructions Correct use Do not use defrosting sprays or de-icers, as they might contain Do not store explosive materials in substances which could damage the the appliance or any products plastic parts or which could cause a containing propellants (e.g.

  • Page 11: Disposal Of Your Old Appliance

    Warning and Safety instructions Stainless steel appliances The manufacturer cannot be held Do not use sticky notes, transparent liable for damage caused by adhesive tape, masking tape or other non-compliance with these Warning types of adhesive on the surface of the and Safety instructions.

  • Page 12: How To Save Energy

    How to save energy Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not near to a heat source (radiator, Near to a heat source (radiator, oven).

  • Page 13: Switching On And Off

    ^ On stainless steel appliances also The appliance will start to cool, and the treat the side panels with the Miele interior lighting will come on when the stainless steel conditioning agent door is opened.

  • Page 14: Settings Mode

    Switching on and off Switching off Settings mode Certain settings on the appliance can only be selected in settings mode. How to select settings mode and how to change settings is described in the ^ Touch the On/Off sensor until all of relevant section of these instructions.

  • Page 15: Switching The Sensor Tones On/Off

    Switching on and off Switching the sensor tones on/off Activating or de-activating the safety lock The sensor tone which sounds each time a sensor is touched can be The safety lock can be activated to deactivated. prevent the appliance being switched off inadvertently.

  • Page 16: Switching Off For Longer Periods Of Time

    Switching on and off You have now left settings mode. The safety lock indicator will light up in the temperature display when the safety lock has been activated. Switching off for longer periods of time If the appliance is not going to be used for a longer period of time, e.g.

  • Page 17: The Correct Temperature

    The correct temperature Dynamic cooling It is very important to set the correct temperature for storing food in the The dynamic cooling fan automatically appliance. Micro-organisms will cause switches on when the cooling system food which is not stored at the correct for the refrigerator switches on.

  • Page 18: Temperature Range

    The correct temperature – Leaving a finger on the sensor, adjusts the temperature continuously. When the highest or lowest ^ Touch and leave your finger on the X temperature in the range is reached, the X or Y sensor disappears. sensor.

  • Page 19: Temperature Display

    The correct temperature ^ Leave your finger on the X sensor for § 5 is the default setting for the another 5 seconds until c appears in PerfectFresh zone. If a setting of § 1 the display. to § 4 is selected, the temperature ^ Touch the X sensor repeatedly until d can fall below 0°C.

  • Page 20: Alarm

    Alarm To switch off the door alarm Your appliance has been fitted with an alarm to avoid energy being wasted if whilst the door is still open the door is left open and to prevent If you want to keep the door open stored food becoming too warm.

  • Page 21: Super Cool

    Super cool The Super cool function The Super cool function can be used to rapidly reduce the temperature in the refrigerator to its lowest setting (depending on the room temperature). Switching on Super cool Super cool is particularly recommended for the faster chilling of large amounts of fresh food or drink.

  • Page 22: Storing Food In The Refrigerator

    Storing food in the refrigerator Different storage zones – pre-packed vegetables and other fresh food with a label stating it Due to the natural circulation of the air should be kept at a temperature of in the appliance, there are different approx.

  • Page 23: Food Which Is Not Suitable For Storing In The Refrigerator

    Storing food in the refrigerator Food which is not suitable for Storing food correctly storing in the refrigerator Food should generally be stored covered or packaged in the refrigerator Not all food is suitable for storing in a (there are some exceptions to this rule refrigerator at temperatures below 5 °C, in the PerfectFresh zone - see below).

  • Page 24: Storing Food In The Perfectfresh Zone

    Storing food in the PerfectFresh zone Food is stored at a lower temperature in longer period, as the water content of the PerfectFresh zone than in the the food is largely retained. refrigerator section. The humidity in the PerfectFresh zone compartment can Storing food in the also be regulated to suit the food being PerfectFresh zone...

  • Page 25: Humidity-Controlled Compartment

    Storing food in the PerfectFresh zone , = low humidity. Always keep these foods covered or wrapped. The regulator opens the vents to the Exception: Meat. The surface of the compartment and the humidity can meat dries out slightly, helping to escape.
  • Page 26 Storing food in the PerfectFresh zone Examples of fruit and vegetables which produce a large amount of this natural gas are: Apples, apricots, pears, nectarines, peaches, plums, avocados, figs, blueberries, melons and beans. Examples of fruit and vegetables which react strongly to the natural gases given off by other types of fruit and vegetables are: Kiwis, broccoli, cauliflower, Brussels...
  • Page 27 Storing food in the PerfectFresh zone The following tips may help if you find that food you have stored does not keep well (e.g. food becomes limp or wilts after only being stored for a short time): ^ Only use the appliance for storing fresh food. The condition of the food when it is first placed in the appliance is an important factor in determining how long it stays fresh.

  • Page 28: Adjusting The Interior Fittings

    Adjusting the interior fittings Moving the shelves To move the split shelf: ^ Take both halves of the split glass The shelves can be adjusted according to the height of the food. shelf out, ^ Raise the shelf, and pull it forwards slightly until the notch at the side is in line with the shelf support.

  • Page 29: Adjusting The Condiment Tray/Bottle Shelf

    Adjusting the interior fittings PerfectFresh zone Adjusting the condiment compartments tray/bottle shelf ^ Lift the tray/shelf up and out of the The compartments in the PerfectFresh zone are on telescopic rails, and can stainless steel frame to remove. be removed for filling, emptying or ^ Push up the stainless steel frame, cleaning purposes.

  • Page 30: Universal Container

    Adjusting the interior fittings Universal container Moving the bottle divider (depending on model) The bottle divider can be moved to the left or right to ensure that bottles are The universal container can be used held securely in position when the door both to store and serve food.

  • Page 31: Automatic Defrost

    Automatic defrost Refrigerator section and PerfectFresh zone The refrigerator section and the PerfectFresh zone defrost automatically. Condensate and frost can build up on the back wall of the refrigerator section and the PerfectFresh zone whilst in use. You do not need to remove this, as it will defrost and evaporate automatically with the warmth generated by the appliance.

  • Page 32: Cleaning And Care

    Cleaning and care A range of Miele branded cleaning and Unlike stainless steel cleaning conditioning products is available to agents, the conditioning agent does order from Miele or from www.miele-shop.com. not contain any abrasive substances and will gently remove soiling. Each...

  • Page 33: Cleaning The Interior And Accessories

    Cleaning and care ^ The bottle shelf and condiment tray in the door can be removed from their stainless steel frames for cleaning. To remove the stainless steel trim from the lid of the butter and cheese compartment (in the top of the door), proceed as follows: ^ Take the butter and cheese ^ Pull the dividing plate out with both...

  • Page 34: Appliance Door, Side Panels

    ^ It is important to treat the stainless steel frames and trim with Miele stainless steel conditioning agent each time they are cleaned. This will protect the surface and help prevent...

  • Page 35: Ventilation Gaps

    The metal grille at the back of the appliance (heat exchanger) should be – Side panels dusted at least once a year. A build-up ^ Use Miele stainless steel conditioning of dust will increase the energy agent to remove any soiling. consumption of the appliance.

  • Page 36: Active Charcoal Filters

    If you do not have new active charcoal filters, you can order them from your Miele dealer or from Miele. You can switch off the Change active charcoal filter indicator early, if you would prefer not to have the red indicator showing.
  • Page 37 – and place more active charcoal filters (in holders) in the appliance. Active charcoal filters and holders ^ At the same time, briefly touch the can be obtained from your Miele On/Off sensor (without letting go of dealer or from Miele. the X sensor).

  • Page 38: Problem Solving Guide

    Miele Service department. ^ Check that the door has been closed . . . the appliance does not get cool properly.
  • Page 39 . . . the Change active charcoal filter indicator is red. ^ Replace the active charcoal filters. You can order replacement filters via your Miele dealer or Miele.."_F" appears in the temperature display. There is a fault. Call Miele Service.

  • Page 40: Noises

    Noises Normal noises What causes them Humming noise made by the motor (compressor). This noise can Brrrrr... get louder for brief periods when the motor is switching on. Blubb, blubb..A gurgling noise can be heard when coolant is circulating through the pipes.

  • Page 41: After Sales / Guarantee

    – your Miele Dealer – Miele (see back cover for contact details). When contacting your Dealer or Miele, please quote the model and serial number of your appliance. This information is given on the data plate inside your appliance.

  • Page 42: Information For Dealers

    Information for dealers Demo mode The appliance can be demonstrated in the showroom or at exhibitions in "demo mode". In this mode the controls and interior lighting are functioning but the compressor remains switched off. To activate/deactivate demo mode ^ Switch on the appliance. ^ Touch and leave your finger on the X sensor.

  • Page 43: Electrical Connection

    Electrical connection Electrical connection U.K. Non-rewireable plugs (BS 1363) All electrical work should be carried out The fuse cover must be re-fitted when by a suitably qualified and competent changing the fuse, and if the fuse cover person in strict accordance with current is lost, the plug must not be used until a local and national safety regulations suitable replacement is obtained.

  • Page 44: Installation

    Installation Climate range Do not place any appliance which The appliance is designed for use gives off heat, such as a toaster or within certain climate ranges (ambient microwave oven, on top of this temperatures), and should not be used appliance, as this would increase outside this range.

  • Page 45: Installation

    Installation Installation Levelling the appliance door ^ Remove the cable clip from the back of the appliance. ^ Check that all parts at the back of the appliance are unhindered. Carefully remove any hindrance. ^ Carefully push the appliance into position with the back against the wall.

  • Page 46: Appliance Dimensions

    Installation Appliance dimensions K 14827 SD 1850 mm 600 mm 630 mm K 14827 SD ed/cs...

  • Page 47: Changing The Door Hinging

    Changing the door hinging To change the door hinging you will need the following tools: – a cross-slotted screwdriver, – a flat-bladed screwdriver, – a selection of Torx screwdrivers, – a spanner. Two people are needed for changing the door hinging. Removing the door handle ^ Pull door handle a towards you.
  • Page 48 Changing the door hinging ^ Fit restraining clip b (supplied with Removing the soft-close door the appliance) onto soft-close mechanism mechanism c. The soft-close door mechanism is at the bottom of the door. The restraining clip stops the hinge from snapping shut. Do not remove the ^ Open the appliance door.
  • Page 49 Changing the door hinging Changing over the door Make sure the door shelves are empty. ^ Close the appliance door. ^ Slide soft-close mechanism bracket f as far as it will go towards the handle side of the door, and undo screws g on the soft-close mechanism.
  • Page 50 Changing the door hinging ^ Then separate retaining plate f from cover e, by pushing it slightly to the left. Then pull the cover forwards and off. ^ Rotate retaining plate f by 180°. ^ Then fit cover e from the front over retaining plate f, and slide it over to the right.
  • Page 51 Changing the door hinging ^ Screw hinge plate f into position on Changing over the hinge brackets the opposite side using the two outer Important! The height of the door long slots only. To make it possible to on stainless steel appliances can align the door later, do not replace be adjusted.
  • Page 52 Changing the door hinging ^ Unscrew part i from hinge plate g, ^ Screw hinge plate g into position on rotate it by 180° and refit into the hole the opposite side using the two outer on the opposite side of the hinge long slots only.
  • Page 53 Changing the door hinging To refit the door Replacing the soft-close door mechanism: ^ Place the door onto the hinge pin from above. ^ Close the appliance door. ^ Remove cover a from panel b, rotate it by 180° and refit it on the other side.
  • Page 54 Changing the door hinging The screw holes on the left and right must line up perfectly. ^ First fix the soft-close mechanism onto the appliance side, then onto the handle side c, pushing it firmly towards the appliance. ^ Replace panel b onto the soft-close mechanism from above, clicking it back into place first at the bottom and then at the top.
  • Page 55 Changing the door hinging Refitting the handle It is important to check that the side section of the handle d does not Please make sure you follow the instructions below carefully when come into contact with the door seal you refit the handle. The door seal when opening the door, as this will be damaged if the handle is would damage the door seal...

  • Page 56: Aligning The Appliance

    Aligning the appliance The appliance door can be aligned Stainless steel appliances retrospectively to the housing using the (height adjustable door) outer long slots in the lower hinge plate. The appliance door can be aligned retrospectively at the side of the lower In the following illustration the door hinge plate: is not shown in the closed position to...

  • Page 57: Building In The Appliance

    Building in the appliance The air inlet and outlet must not be covered or blocked in any way. They should be dusted on a regular basis. When built into a kitchen run (max. depth 580 mm) the appliance can be installed directly next to a kitchen furniture housing unit.
