Page 1: Operating Instructions
Operating instructions for dishwashers It is essential to read these operating instructions before installing or using the machine, to avoid risk of accident or damage to the machine. M.-Nr. 04 988 090... -
Page 2: Table Of Contents
Contents Contents Guide to the appliance..........3 Warning and safety instructions. -
Page 3: Guide To The Appliance

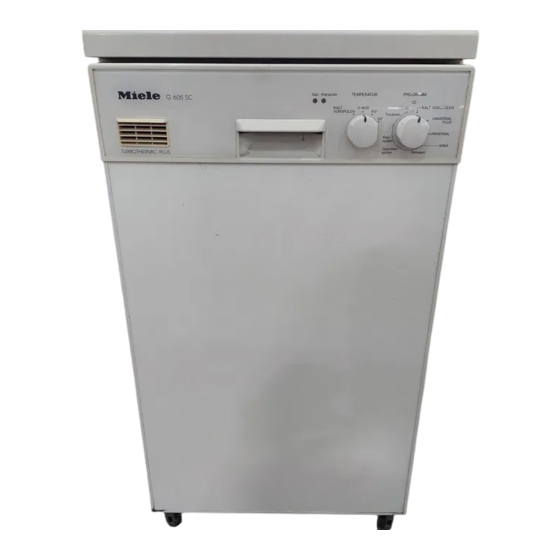

Guide to the appliance Guide to the appliance Miele dishwashers are available in 3. “U“ dishwashers three versions: The built-under(“U“) dishwashers use the integrated (“i“)-dishwashers as the 1. “Freestanding“ dishwashers basic machine. “Freestanding“ dishwashers do not re- By using a decor set (GDU) the “i“ dish- quire any special installation fixings in washer can be converted into a “U“... - Page 4 Guide to the appliance View of the machine Control panel (facia)
- Page 5 Guide to the appliance 1 Upper spray arm (not visible) 2 Cutlery tray (standard depending on model) 3 Inlet funnel for middle spray arm 4 Upper basket 5 Middle spray arm 6 Water hardness selector 7 Lower spray arm 8 Four height adjustable screw feet 9 Filter combination 10 Salt reservoir 11 Dual compartment detergent...
-
Page 6: Warning And Safety Instructions
Warning and safety instructions Warning and safety instructions not be held responsible for damage This appliance conforms to current caused by the lack or inadequacy of safety requirements. Inappropriate an effective earthing system, (electric use can however lead to personal shock for example). - Page 7 Warning and safety instructions Dishwasher detergents contain irri- The following notes should help to tant or corrosive ingredients. They avoid material damage can cause burning in the mouth and The voltage and frequency shown throat if swallowed, or inhibit breathing. on the data plate must match the Keep children away from detergents mains supply in the house.
- Page 8 Warning and safety instructions The Miele Waterproof System of- Disposal of your old machine fers protection from water damage, When disposing of an old dish- provided the following conditions are washer first make it unusable. Dis- met: connect, cut off the cable and the plug from the cable.
-
Page 9: Caring For The Environment
Caring for the environment Caring for the environment Disposal of the packing material Energy saving washing The transport and protective packing These dishwashers are exceptionally ef- has been selected from materials ficient in their use of water and elec- which are environmentally friendly for tricity. -
Page 10: Before Using For The First Time
Before using for the first time Before using for the first time Load the crockery correctly Before using for the first time please note the following points: Load the crockery so that water will come into contact with all surfaces. See the relevant chapters for detailed This ensures that they will be properly information on the points below. -
Page 11: Opening And Closing The Door
Opening and closing the door Opening and closing the door To open the door Child safety lock The child safety lock is designed to Press the release catch inside the deter children from opening the dish- door grip. washer door. If the door is opened during operation all functions are automatically inter- Use the key provided to turn the... -
Page 12: Water Softener/Reactivation
Water softener Water softener It is not necessary to reactivate with Setting the water hardness level salt if the degree of hardness in the selector in the wash cabinet local supply is permanently under There are six settings on the selector. 70 mg/l, (0.7 mmol/l, or 4 °d German scale). -
Page 13: Filling The Salt Reservoir
Water softener Filling the salt reservoir Please only use special coarse grained dishwasher salt for reactivation, as other salts may contain insoluble addi- tives which can impair the functioning of the softener. The salt reservoir holds approx. 1.2 kg of salt. Inadvertently filling the salt reservoir with dishwasher detergent always causes serious damage to the... -
Page 14: Add Salt Indicator Light
Water softener Note Salt indicator With very soft water, i.e. constantly at a level below 70 mg/l (4 °d), the reservoir does not have to be filled with salt and although the salt light does come on, this can be disregarded. When the salt reservoir is empty the “Salt”... -
Page 15: Adding Rinse Aid
Adding rinse aid Adding rinse aid Rinse aid is necessary to ensure that water does not cling and leave marks on crockery during the drying phase. Rinse aid is poured into the storage reservoir and the amount set is dis- pensed automatically. -
Page 16: Rinse Aid Dosage Setting
Adding rinse aid Setting the dosage The dosage adjuster (see arrow) in the Add rinse aid only until it is visible on the surface of the filter in the open- opening has settings from 1 to 6. It is set to 3 at the factory, as the recom- ing. -
Page 17: Loading The Dishwasher
Loading the dishwasher Loading the dishwasher Some foodstuffs may contain natural Note dyes, e.g. carrots, tomatoes or ket- Load the crockery so that water will chup. Plastic items in the dishwasher come into contact with all surfaces. may discolour if large quantities of This ensures that they will be these foodstuffs find their way into properly cleaned. -
Page 18: Loading Examples
Loading the dishwasher Loading examples Upper basket Bottom basket Small, lightweight, delicate items such Larger and heavier items such as as cups, saucers, glasses, dessert plates, serving platters, saucepans, bowls, etc. bowls. Preferably do not place glasses in the bottom basket, but especially not long stemmed glasses. - Page 19 Loading the dishwasher Cutlery tray The cutlery tray insert is removable (depending on model). The deeper part of the cutlery tray, for larger spoons etc must always be positioned above the flap up rack. For best results cutlery should be grouped in zones, one for knives, one for forks, one for spoons etc.
-
Page 20: Flap Up Racks
Loading the dishwasher Flap up racks Cutlery with round or oval handles Can either be used for a second row of should be placed with the heads in the cups or raised upwards to make room grips as this prevents them slipping. for tall items. -
Page 21: Adjusting The Upper Basket
Loading the dishwasher Depending on the setting of the upper Adjusting the upper basket basket the following dimensions can be (depending on model) accommodated: In order to win more space for taller Upper plates Ø in cm pieces of crockery in the bottom or basket Upper Lower... -
Page 22: Not Suitable For Dishwashers
Items not suitable for dishwashers Items not suitable for dishwashers – cutlery with wooden or horn handles, Please note – wooden or plastic chopping boards, – Silver- and aluminium items can suf- fer some discolouration. – glued items, e.g. old knives with handles which have been glued on, –... -
Page 23: Adding Detergent
Should you experience difficulties when Please note using these types of products, please Dishwasher detergents contain irri- contact Miele Customer and Technical tant or corrosive ingredients. They Services Department, or the detergent can cause burning in the mouth manufacturer’s own Advisory Service. - Page 24 Adding detergent 3. If results are still not to your satisfac- Preventive measures: tion, you should revert back to using 1. If you wish to continue using the new conventional detergents containing chlorine and phosphate-free pro- both chlorine and phosphate. ducts, the following is recommended: –...
- Page 25 Adding detergent Dishwasher detergent must be added The amount to dispense will depend on before each programme (except PRE- the type of load and the programme se- WASH). lected. See the programme chart on the next – Pour powder or liquid detergent into pages for advice on amounts to dis- the dispenser.
- Page 26 Adding detergent For information: Compartment I takes max. 25 ml, Com- partment II max. 80 ml. There are hori- zontal markers to assist with dispensing in compartment II, indicat- ing the level in ml. Press the opening catch on the con- tainer flap.
-
Page 27: Programme Selection
Programme selection Programme selection Choose your programme according to the type of load and how dirty it is. In most cases this will be a UNIVER- SAL - programme. UNIVERSAL 55 ° or 65 ° (with one pre-wash) or UNIVERSAL PLUS 55 ° or 65 ° (with two pre-washes). -
Page 28: Programme Chart
Programme chart Programme chart Programme When to use Detergent Compart- Compart- Compart- ment ment ment (Pre-wash) (Wash (Wash cycle) cycle) Universal Programmes UNIVERSAL This programme is for normal everyday 20 % 100 % loads 55 ° UNIVERSAL as UNIVERSAL 55 °, but higher 20 % 80 % 100 %... - Page 29 Programme cycle Consumption Time Energy Water Minutes (approx.) Main Interim- Final- Drying- Water Water Litres Water Water Preliminary Pre-wash wash rinse rinse phase cold cold pre-wash (15 °C) (55 °C) (15 °C) (55 °C) 55 ° 65 ° 65 ° 65 °...
-
Page 30: Switching On And Off
Switching on and off Switching on and off Switching on If you turn the selector past the “start point“ by mistake: Close the door Turn the temperature selector switch Open the stopcock (if it is closed). to “0-Off“. Turn the programme selector switch in a clockwise direction to the re- quired start point. -
Page 31: Programme Sequence Display, Interrupting A Programme
Switching on and off Programme sequence indication Programme interruption During the programme the programme A programme is interrupted as soon as selector switch moves around the dial the door is opened. to show which stage has been reached: If the door is closed again the pro- gramme will continue from the position –... -
Page 32: Removing Load
Remove load Remove load Hot crockery will chip and break more easily. After switching off let it cool down in the dishwasher until it is comfortable enough to handle, before you unload If you open the door fully after switch- ing off, the crockery will cool down much faster. -
Page 33: Cleaning And Care
Cleaning and care Cleaning and care Cleaning the filters in the wash cabinet The dishwasher must not be used without all the filters in place! The filter combination in the base of the wash cabinet should be regularly in- spected and cleaned if necessary. Turn the handle anti-clockwise to re- lease the filters. - Page 34 Cleaning and care Cleaning and care Turn the filter combination over and Replace the filter combination so open the coarse filter by pulling that it lies flat in the base of the wash back on the locking device. cabinet. Secure the filter by turning the handle in a clockwise direction.
-
Page 35: Cleaning The Spray Arms
Cleaning and care Cleaning and care Cleaning the spray arms Particles of food can lodge in the spray arm jets. The spray arms should be inspected and cleaned regularly (approx. every 6 months). To do this remove the spray arms as fol- lows. - Page 36 Cleaning and care Cleaning and care Cleaning the drain pump and non-return valve If water has not been pumped away at the end of a programme the drain pump or the non-return valve might be blocked. They are, however, easy to clean.
-
Page 37: Cleaning The Filter In The Water Inlet
These filters can be obtained from the Turn off the stopcock and unscrew Miele Spares Department (Part No.: the inlet hose. 75577). Carefully remove the rubber seal. Withdraw the filter using pointed pliers and clean by rinsing under run- ning water. -
Page 38: Cleaning The Wash Cabinet
Cleaning and care Cleaning and care Cleaning the wash cabinet The facia panel In general the wash cabinet is self- This should only be wiped with a cleaning, provided that the correct damp cloth, or a suitable plastic amount of dishwasher detergent is cleaner. -
Page 39: Checking The Water Level/Increasing The Water Intake Time
Checking the water level Checking the water level Checking the water level If the water pressure (flow rate at the take-off point) is too low, i.e. less than 1,0 bar, too little water will flow into the wash cabinet. To ensure an accurate assessment open the stopcock fully and run the PRE-WASH programme once (with- out crockery) to bring water into the... -
Page 40: Increasing The Water Intake Time
Checking the water level Increasing the water intake time Using a 4-5 mm wide screwdriver Position the right hand switch verti- turn the adjuster mechanism to the cally and then pull it off. right hand side of the spindle carefully in an anti-clockwise direc- tion until it checks into position. -
Page 41: Dealing With Minor Faults/After Sales Service
– The spray arms are obstructed by tory notes, minor faults can be cor- items in the baskets. rected without contacting the Miele Ser- – The opening in the middle of the cut- vice Department. lery tray is blocked by a piece of cut- lery. -
Page 42: Special Accessories
Special accessories Special accessories Bottle holder Installation - special situations (depending on model) Brackets to fix the dishwasher under a marble-type worktop. Decor frame for freestanding dish- washers (GDR) to match kitchen fronts in colour and style, (available with some models). Decor frame adapter strip for free- standing dishwashers for decor pa- nels 1 to 4 mm thick. -
Page 43: Comparison Tests
Comparison tests Comparison tests Test standard: IEC 436 / DIN 44990 / IEC 704 / prEN 50242 Programme tested: UNIVERSAL 55 ° Amount of detergent: If using a detergent containing chlorine: 4 g in compartment I, 17 g in compartment II. If using a chlorine-free detergent: 21 g only in compartment II. - Page 44 Comparison tests Cutlery tray...
-
Page 45: Installation Instructions
Installation instructions... - Page 46 Contents Contents Installing a freestanding dishwasher ....... . . 47 Installation integrated "i"...
-
Page 47: Installing A Freestanding Dishwasher
Installing “Freestanding” dishwashers Installing “Freestanding” dishwashers “Freestanding” dishwashers The dishwasher must be installed and levelled. Any unevenness in the floor level can be compensated for by adjust- ing the four screw feet. The adjustment range is approx. 1 cm (85-86 cm total height). Decor frame and decor panel “Freestanding”... -
Page 48: Installation Integrated "I" Dishwashers
Installing integrated “i” Dishwashers Installing integrated “i” Dishwashers The “i” model dishwashers are spe- Dimensions: cially designed for building under a continuous worktop. The front can be fitted with a base unit front to match the kitchen furniture. By using a decor set GDU “i” model dishwashers can be converted into a built-under “U”model dishwasher. -
Page 49: Fit Worktop Protection ("Niro" Stainless Steel Coverplate)
Installing integrated “i” Dishwashers 1. Fit worktop protection A stainless steel “niro” coverplate is supplied with the machine to protect the underside of the worktop against steam rising from the machine. The coverplate is supplied as standard with "i" models. Squeeze sealant from the tube sup- plied into the angle of the “niro”... -
Page 50: Building The Dishwasher Into A Niche
Installing integrated “i” Dishwashers 2. Building the dishwasher into a niche Connection to water and drainage should be sited beside and not behind the dishwasher for accessibility. Con- nections are usually made in the area under the sink. Many kitchen unit manu- facturers provide a cutout in the base of the sink base unit for the hoses to be fed through. - Page 51 Installing integrated “i” Dishwashers The slides make installation of the dish- washer easier and protect the floor from possible damage when moving the appliance into and out of the re- cess. They are also used for adjusting the height of the rear screw feet. Adjust the height manually before in- stalling the dishwasher.
- Page 52 Installing integrated “i” Dishwashers Adjust the rear screw feet to the re- Adjust the front screw feet manually quired height. or with a flat blade screwdriver. Higher = turn clockwise It is easier to adjust the screw feet if the weight of the dishwasher is not bearing Lower = turn anti-clockwise down on them.
-
Page 53: Fitting The Facia Panel
Installing integrated “i” Dishwashers 3. Fitting the facia panel The facia panel is delivered separately Only applicable when using the GDU in the colour ordered with the relevant decor set (to convert an "i" version to a accessories. built-under "U" version) It has to be fitted to the dishwasher If the GDU decor set is being used, the when it is being installed. -
Page 54: Matching The Facia Panel To The Dimensions Of The Adjacent Drawer Fronts
Installing integrated “i” Dishwashers Adjustment range: 4. Matching the facia panel to the dimensions of the from 112 mm: facia panel without spacer bars adjacent drawer fronts to 145 mm: facia panel with four The facia panel can be aligned with the spacer bars, drawer fronts of the kitchen units by ad- justing the spacer bars. -
Page 55: Fitting The (Matching) Door Front
Installing integrated “i” Dishwashers 5. Fitting the (matching) door front The door of the kitchen base unit (with- out the drawer facia or fittings) is nor- mally used for the door front. The door front is fixed to the machine door outer panel using a fixing bracket which has to be pre-mounted on the rear of the door front. - Page 56 Installing integrated “i” Dishwashers Installing integrated "i" Dishwashers Adjust the fixing bracket Lay the bracket on the rear side of The long holes in the machine door the door front and adjust so that: outer panel must be aligned with the –...
- Page 57 Installing integrated “i” Dishwashers Installation integrated “i” Dishwashers Drill the fixing holes to a depth of Open the dishwasher door slightly. about 10 mm, using a 2.5 mm drill bit. Adjust the door front for the height Secure the fixing bracket to the door on one side and lightly screw in a front using the flat-head screws sup- T20 Torx screw on this side.
-
Page 58: Adjusting The Door Springs
Installing integrated “i” Dishwashers 6. Adjusting the door springs 7. Level and secure the dishwasher The door springs are correctly adjusted when a half opened door (approx. 45° To ensure the stability of the dish- opening angle) remains in that position washer it must be screwed to the con- when released. - Page 59 Installing integrated “i” Dishwashers For “Corian” or granite worktops there is a special accessory to fix the dish- washer to an adjacent kitchen unit. Screw the countersunk screws (3.9 x 22) upwards through the se- curing pieces on the left and right hand sides into the work surface to Pull the dishwasher approx.
-
Page 60: Matching The Plinth Facia Of A Kitchen Run
Installing integrated “i” Dishwashers 8. Matching the plinth facia of a kitchen run The plinth area of the dishwasher is nor- Place the plinth facia directly in front mally covered with a plinth run match- of the kitchen run but do not attach. ing the kitchen furniture. -
Page 61: Electrical Connection
Please contact your ifying the terminals in your plug, pro- Miele dealer or the Miele Spare Parts ceed as follows: department. The wire which is coloured green and... - Page 62 BS 1362 should be fitted. Replace- ment fuse covers may be purchased from your local electrical suppliers, or Miele Service Agent. (The German standard version is sup- plied with a 2 m long cable and moulded plug for connection to a 230 V single phase supply.
-
Page 63: Plumbing
The inlet hose is approx. 1.5 m long; a longer hose (4 m) may be bought from the Miele Spare Parts Dept. Connect the inlet hose with the “Water- A stopcock with a 3/4" male thread proof-System”... - Page 64 Lay the hose in such a way that it does not rise above the bottom of the “Waterproof” unit casing (see il- lustration). If the stopcock is situated in the worktop, a special angle connector can be ordered from the Miele Spare Parts Dept. (Part No. 2078910).
-
Page 65: Drainage
Plumbing Drainage Venting the drainage system Open the dishwasher door fully. The machine drainage system is fitted with a non-return valve, which If the site drain connection is situated prevents dirty water from flowing lower than the guide path for the bot- back into the machine via the drain tom basket rollers in the open door the hose. -
Page 66: Technical Data
Technical Data Technical Data Height Freestanding 85 cm (adjustable + 1.0 cm) Height U- and i-models 82 cm (adjustable + 5.0 cm) Width 44.8 cm Width of building in recess 45 cm Depth 60 cm (Freestanding model) 57 cm (U- and i-models) Depth with door open 118.5 cm (Freestanding model) 115.5 cm (U- and i-models) - Page 68 Alteration rights reserved (G605/G607) /000 4097 This paper consists of cellulose which has been bleached without the use of chlorine.
