Adaptec AFM-600 Installation Instructions

Installation Instructions

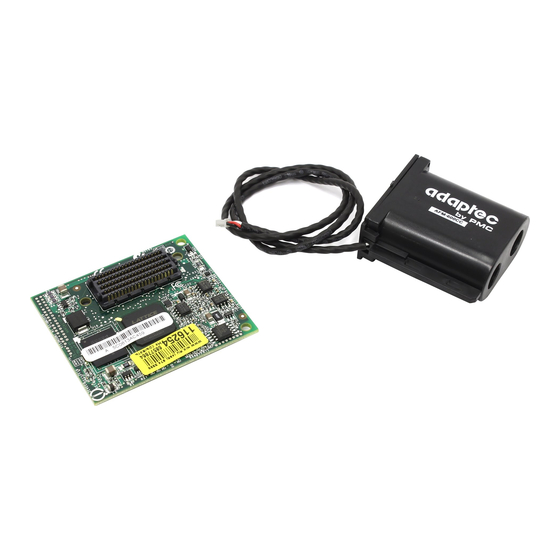

Adaptec Flash Backup Module AFM-600 for Adaptec Unified Serial
Using the appropriate static protection, remove the controller from your computer.
1

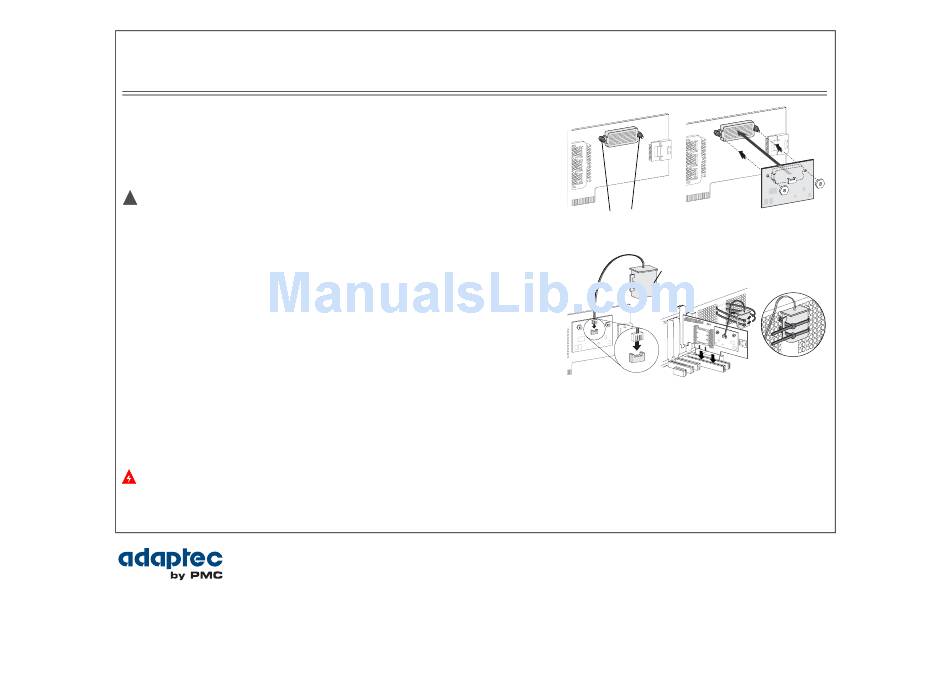

Insert screws through the bottom of the controller board, as shown in Figure 1.
Then, insert spacers on the screws.
2
Attach the AFM-600DB (daughterboard) to the controller by mating the two black
connectors. Affix a hex nut to the end of each of the screws, as shown in Figure 2.
Caution:
The torque should be less than 0.06Nm to avoid deformation. Do not use a
!
tool to hold the nut in place to avoid damaging the semi-conductor components on the
daughterboard near the screw holes. Be sure that the controller is not bent after
attaching the daughterboard to the controller card.
3
Attach the AFM-600CC supercapacitor module to the controller by inserting the
connector into the socket on the AFM-600DB
attaches to the socket in only one direction.
4
Choose a location on the chassis or in the system to fix the tethered supercapacitor
module using the included cable-ties such that (i) the cable (18.5") reaches the
mating location on the controller when it is installed in the expansion slot;
(ii) wiring is routed and secured so that it does not contact any moving parts (fans,
for instance); and (iii) the supercapacitor module is protected from heat.
5
Thread the cable-ties through the slots on the supercapacitor module and fix to the
selected location on the computer chassis. The cable-ties should completely encircle the supercapacitor module to ensure that it is held
in place securely, as shown in Figure 4. Be careful not to restrict air-flow in your system.
6
Reinstall the controller, and restart your computer.
7
The supercapacitor starts charging automatically. It should reach full charge in 3-4 minutes.
Warning:
(i) Do NOT remove or insert a fully charged supercapacitor module. Always discharge the unit first to avoid damage to the controller or
flash backup module. The factory ships with discharged units, so they are safe to install when you receive them. To ensure that an installed unit
is discharged, switch the system OFF, then wait 5 minutes. After a dirty shutdown, wait 3 minutes after backup is complete, then remove the
unit. (ii) There is a risk of explosion if the supercapacitor module is replaced by an incorrect type.
Copyright © 2011 PMC-Sierra, Inc. All rights reserved. Adaptec and the Adaptec by PMC logo are trademarks of PMC-Sierra, Inc., which may be registered in
some jurisdictions.
Part Number: MAN-00260-01-A Rev B
,
as shown in Figure 3. The connector
™
RAID Controllers
Spacers
Figure 1 Figure 2
Supercapacitor module
Figure 3 Figure 4
