Page 1

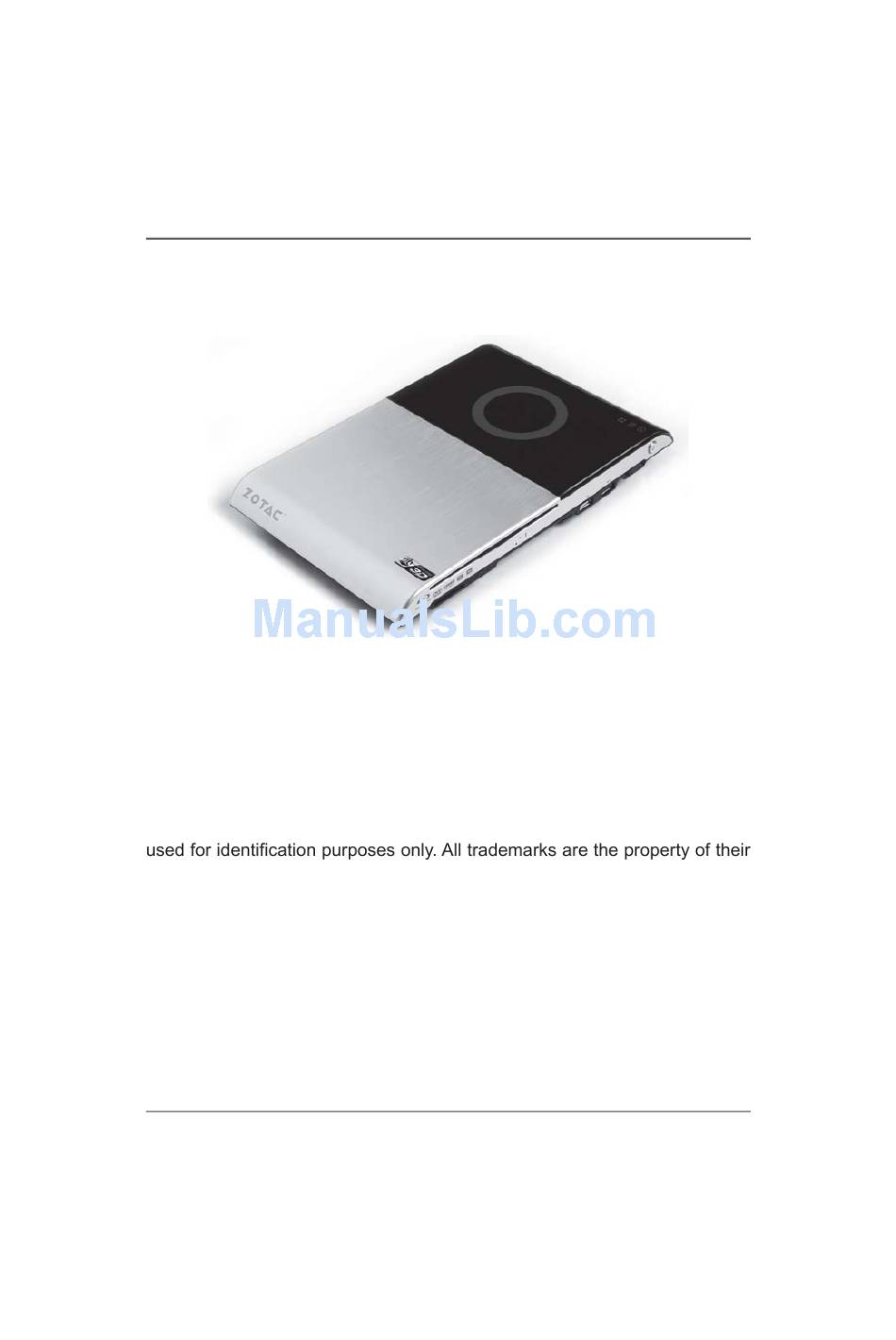

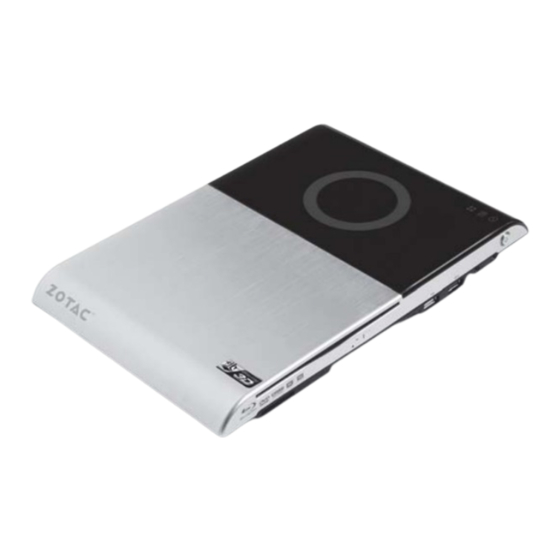

ZOTAC ZBOX Blu-ray ZOTAC ZBOX Blu-ray User’s Manual No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means,except documenta- tion kept by the purchaser for backup purposes, without the express written permission of ZOTAC.
Installing a hard disk -------------------------------------------------------------------------- 15 Installing a Mini-PCIe card ------------------------------------------------------------------- 16 ------------------------------------------------------- 17 ------------------------------------------------------ 18 Mounting the ZOTAC ZBOX Blu-ray to a wall------------------------------------------- 18 --------------------------------------------------------------- 20 Installing an operating system -------------------------------------------------------------- 20 Installing system drivers ---------------------------------------------------------------------- 20 ------------------------------------------------------------ 21...
Page 3
ZOTAC ZBOX Blu-ray ro u t s e at ons ® NM10 Express ® Atom D525 (Dual-core, 1.8 GHz) ® Atom D510 (Dual-core, 1.66 GHz) (Optional) ® ION GPU, CUDA cores up to 16 WiFi Audio ® ®...
Technology for Burning) function Safety information Your ZOTAC ZBOX is designed and tested to meet the latest standards of safety for infor- mation technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.
ZOTAC ZBOX Blu-ray Welcome Congratulations on your purchase of the ZOTAC ZBOX Blu-ray mini-PC. The following illustration displays the package contents of your new ZOTAC ZBOX Blu-ray. Please contact your retailer If any of the below items are damaged or missed.
ZOTAC ZBOX Blu-ray Getting to know your ZOTAC ZBOX Blu-ray Front view Refer to the diagram below to identify the components on this side of the system cards used in devices such as digital cameras, MP3 players, mobile phones and PDAs.
ZOTAC ZBOX Blu-ray Rear view Refer to the diagram below to identify the components on this side of the system. The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards maximum performance with USB 3.0 compatible devices as external hard drives, Blu-ray drives, and USB 2.0 devices.
BIOS setting. Refer to the next chapter for more details. How to disable the blue ring LED indicator Turn on the ZBOX Blu-ray mini-PC, then press <Delete> to enter the BIOS SETUP UTILITY. Use the arrow keys to navigate to the...
Page 9
ZOTAC ZBOX Blu-ray Press <Enter> to display the navigate to LOGO LED indicator. Press <Enter> and select...
ZOTAC ZBOX Blu-ray Blu-ray disc The ZOTAC ZBOX Blu-ray features a Blu-ray combo drive that can read Blu-ray Ejecting a disc There are two ways to get the disk to eject. 1. Right-click on the and left-click on 2. Press the eject button.
Page 11
ZOTAC ZBOX Blu-ray Customizing the ZOTAC ZBOX Blu-ray Please follow the instructions below to remove the cover of the ZOTAC ZBOX Blu- ray before customizing. 1. Remove the 6 screws securing the bottom cover into place. 2. Gently remove the cover as shown on the image below.
ZOTAC ZBOX Blu-ray Removing a memory module 1. Locate the SO-DIMM memory slot and gently press the two arms securing the memory module outwards, as shown in the image below, to release the memory module. 2. Remove the memory module from the slot at a 45-degree angle.
ZOTAC ZBOX Blu-ray Installing a memory module 1. Locate the SO-DIMM memory slots and insert a SO-DIMM memory module into the slot at a 45 degree angle. 2. Gently press down on the memory module until it locks into place by the arms of the memory slot.
ZOTAC ZBOX Blu-ray Removing a hard disk 1. Locate the hard disk bracket, remove the 4 screws, and remove the cover as shown in the image below. 2. Gently slide the hard disk away from the connector and remove the hard disk.
ZOTAC ZBOX Blu-ray Installing a hard disk 1. Locate the hard disk bracket, remove the 4 screws, and remove the hard disk cover as shown in the image below. 2. Insert a 2.5-inch SATA hard disk into the socket and gently slide into the connector.
ZOTAC ZBOX Blu-ray Installing a Mini-PCIe card 1. Locate the Mini-PCIe slot and insert a Mini-PCIe card into the slot at a 45 degree angle. screws.
Page 17
ZOTAC ZBOX Blu-ray Setting up the ZOTAC ZBOX Blu-ray Please connect the peripherals before using the ZOTAC ZBOX Blu-ray. the USB 3.0 port on the system rear panel. Connect one end of a network cable to the LAN port on the system rear panel and the other end to a network hub, switch or router.
Secure the VESA mount to the wall using screws (not included). Align the ZOTAC ZBOX mounting holes to the VESA mount attachment pegs. Attach the ZOTAC ZBOX to the VESA mount and gently press down to secure the ZBOX to the mount.
Install system drivers to gain full functionality of the ZOTAC ZBOX Blu-ray hardware and features. Installing system drivers Before you can use the full features of the ZOTAC ZBOX Blu-ray, the system drivers must be installed. The following types of operating systems are supported by the ®...
ZOTAC ZBOX Blu-ray Each driver must be installed individually to ensure proper operation of the ZOTAC ZBOX Blu-ray. Select the driver you want to install. The driver installer should launch. Follow the onscreen instructions for the selected driver to install.
Con guring audio output via an HDMI device Follow the steps below to enable audio output via HDMI when connecting the ZOTAC ZBOX Blu-ray to a TV or receiver via HDMI. Access the Sound settings via the system Control Panel.
Page 23
ZOTAC ZBOX Blu-ray Con guring the PCIe link state power management maximum USB 3.0 speed.
ZOTAC ZBOX Blu-ray Installing the PowerDVD for 3D movie The PowerDVD supports 3D movie. Follow the steps below to install PowerDVD. when the following interface displays. 2. Install PowerDVD.
Page 26
ZOTAC ZBOX Blu-ray 3. Right-click on the windows, and select > Stereoscopic 3D > Set up stereoscopic 3D. 4. Enable stereoscopic 3D as shown in the image below. www.nvidia.com to search Supported 3D TVs.
