Wintal VGA+3.5mm Audio+S-Video+Video Instruction Manual

VGA+3.5mm Audio+S-Video+Video Wall Plate Manual

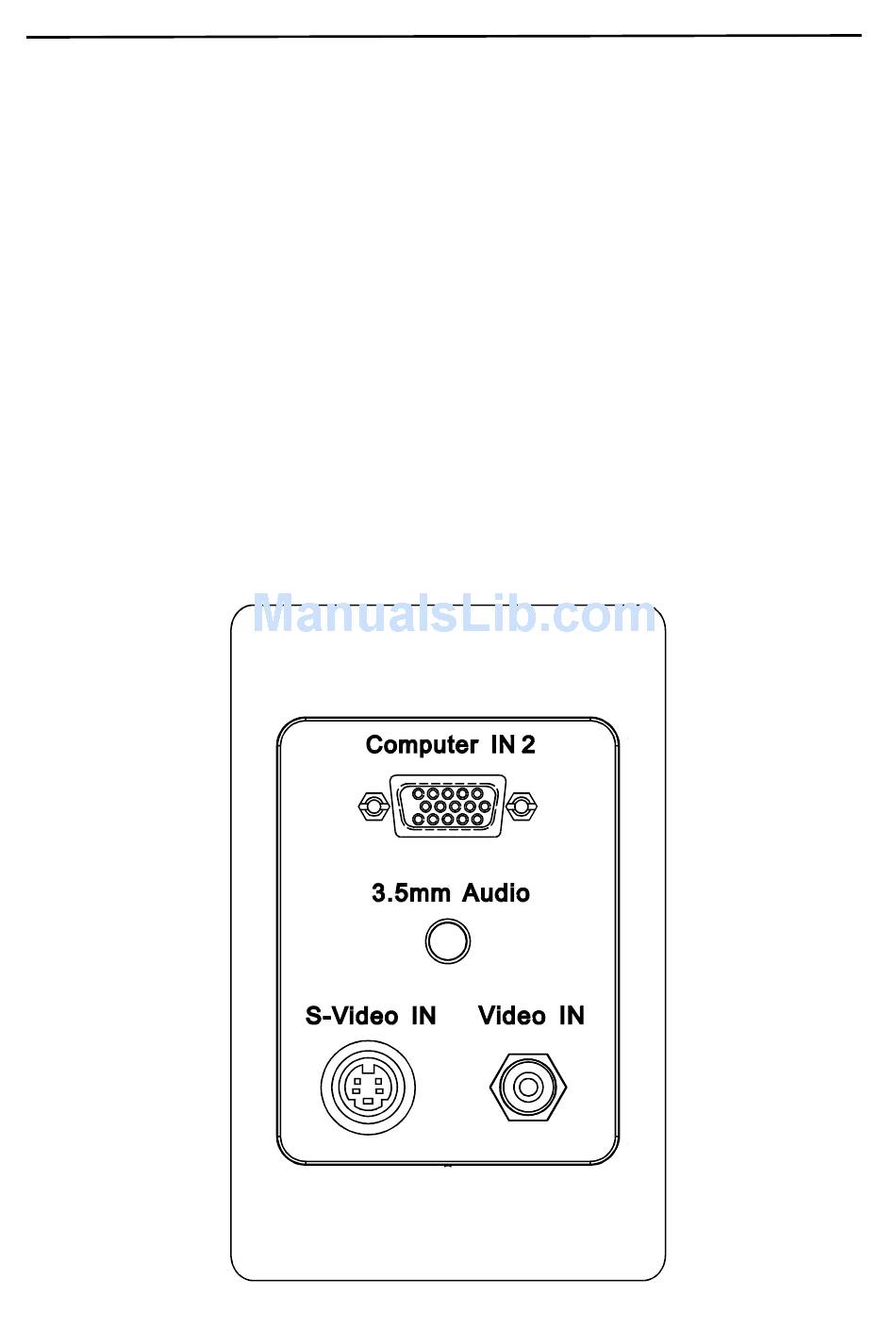

Wall Plate includes:

1 x VGA Female to Female
1 x 3.5mm Audio socket
1 x S-Video Female to Female
1 x Video RCA Female to Female yellow

INSTALLATION:

Choose a mounting location that has existing wiring or where you can easily run wire
through the wall. You must use a standard electrical box.
1. Run VGA,3.5mm Audio ,S-Video and RCA cable from the desired source through
the wall into the electrical box.
2. Plug the
VGA,3.5mm Audio ,S-Video
and RCA jack on the back of the wall plate.
S-Video
3. Put the wall plate on the electrical box, insert the supplied mounting bolts into the
top and bottom large holes on the mounting bracket, then tighten them.
4. Plug the receiving device's
3.5mm Audio,S-Video
and RCA cable into the
VGA,3.5mm Audio,S-Video
and RCA jack on the front of the wall plate.
VGA,3.5mm Audio,
and RCA cable into the
VGA,
