Wintal USB+VGA+Stereo Audio Instruction Manual

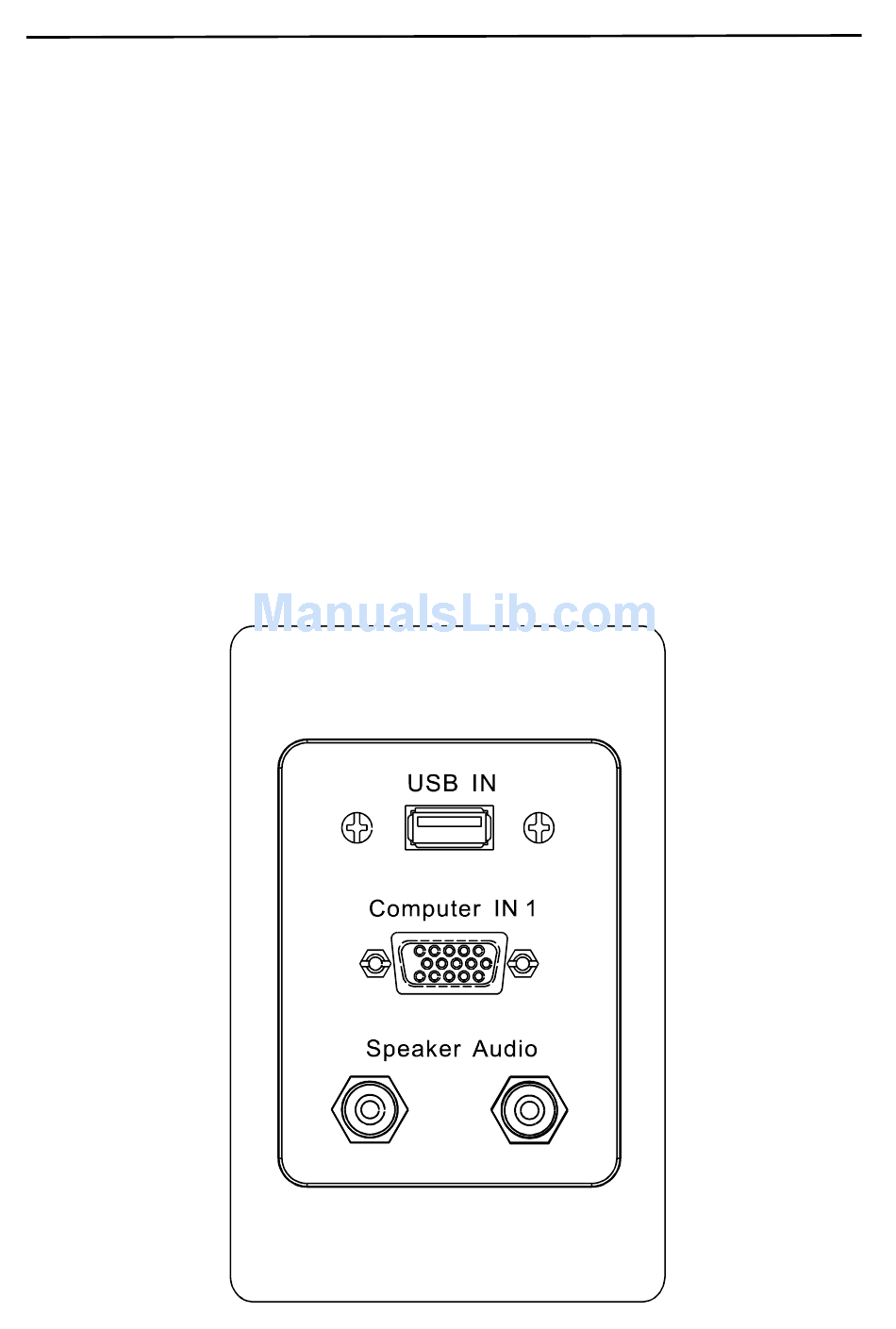

USB+VGA+Stereo Audio Wall Plate Manual

Wall Plate includes:

1 x USB Female to Female
1 x VGA Female to Female
1 x Audio RCA Female to Female white/red

INSTALLATION:

Choose a mounting location that has existing wiring or where you can easily run wire
through the wall. You must use a standard electrical box.
1. Run USB,VGA and RCA cable from the desired source through the wall into the
electrical box.
2. Plug the USB,VGA and RCA cable into the USB,VGA and RCA jack on the
back of the wall plate.
3. Put the wall plate on the electrical box, insert the supplied mounting bolts into the
top and bottom large holes on the mounting bracket, then tighten them.
4. Plug the receiving device's USB,VGA and RCA cable into the USB,VGA and RCA
jack on the front of the wall plate.
