Video+ Stereo Audio+VGA + 3.5mm Audio Wall Plate Manual

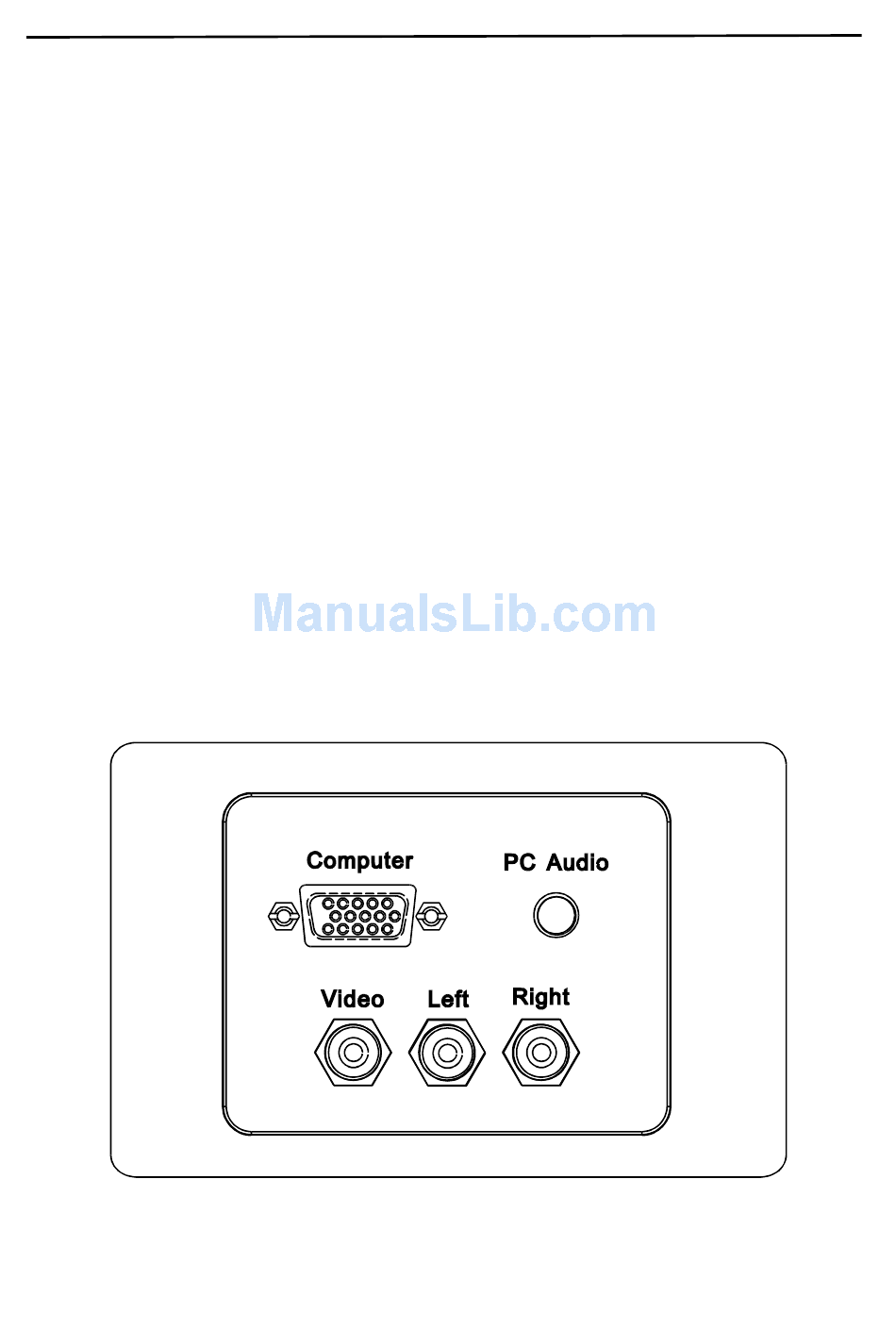

Wall Plate includes:

1 x VGA Female to Female
1 x 3.5mm Audio socket
1 x Video/Stereo Audio RCA Female to Female yellow/white/red

INSTALLATION:

Choose a mounting location that has existing wiring or where you can easily run wire
through the wall. You must use a standard electrical box.
1. Run VGA,3.5mm Audio and RCA cable from the desired source through the wall
into the electrical box.
2. Plug the
VGA,3.5mm Audio
jack on the back of the wall plate.
3. Put the wall plate on the electrical box, insert the supplied mounting bolts into the
top and bottom large holes on the mounting bracket, then tighten them.
4. Plug the receiving device's
and RCA jack on the front of the wall plate.
Audio
and RCA cable into the
VGA,3.5mm Audio
VGA,3.5mm Audio
and RCA cable into the
and RCA
VGA,3.5mm
