Use this product according to this instruction manual. Please keep this instruction manual for future reference.
MODEL NUMBER:
SPRM
SPRM-B
GENERAL:
The Remote Microphone is UL Listed under Standard 864, Control Units for Fire-Protective Signaling Systems. They are Listed for
indoor use only. The Remote Microphone is designed to be used with Wheelock's SP40S SAFEPATH4 Panel. It provides a means
for making emergency voice announcements from an auxiliary location. Only 1 Remote Microphone can be connected to the SP40S
Panel. The hand held push-to-talk microphone is supervised to ensure proper connection. It is not repairable. If it is detached from
the unit, the unit must be returned for repair.
: All
and
NOTE
CAUTIONS
WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. FAILURE TO COMPLY
WITH ANY OF THE FOLLOWING INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER
APPLICATION, INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN AN EMERGENCY SITUATION, WHICH
COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
SPECIFICATIONS:
Power Input Voltage:
Audio Output Level:
Output Impedance:
Min. Ground Fault:
Input Current:
WIRING DIAGRAM:

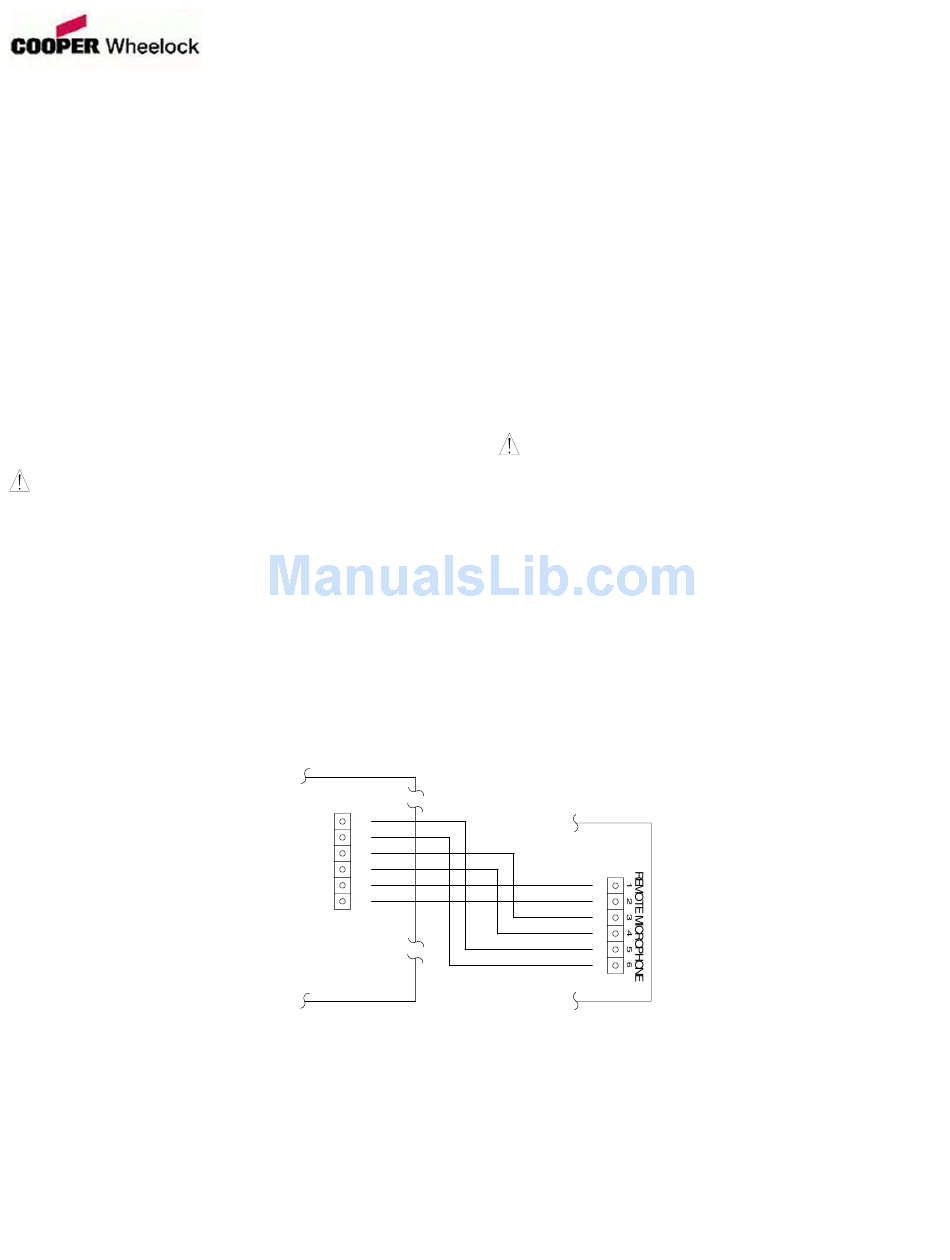

Figure 1 shows the proper wiring connections for connecting the SPRM to the SP40S.
WIRING SPECIFICATIONS:
Cable Size:
14-18 American Wire Gauge (AWG) Shielded. The shield must be connected only at the SP40S Panel.
Maximum Length:
2000 Feet
Maximum Capacitance: 0.1uF/Total Run (50pF/foot for 1000 FT.)
Copyright 2006 Cooper Wheelock, Inc. All rights reserved.
Thank you for using our products.
INSTALLATION INSTRUCTIONS
SPRM REMOTE MICROPHONE FOR USE WITH SP40S
108996
109932
are identified by the symbol
WARNINGS
24VDC
1.05V RMS
600 Ohms
20k Ohms
Standby: 23mA
Alarm: 30mA
SP40S PANEL
+
AUX IN
-
+
CC/NAC
-
+
24V OUT
-
TB6
* This wiring is power limited.
: All wiring is supervised unless otherwise noted.
NOTE
. All warnings are printed in bold capital letters.
*
*
24VDC
STATUS (CC)
RM AUDIO
Figure 1:
+
-
+
-
+
-
P84207 Rev. E
Sheet 1 of 4
