SP4-LOC
SAFEPATH4
REMOTE MICROPHONE AND LOCAL
OPERATOR CONSOLE
INSTALLATION AND OPERATION MANUAL
MASS NOTIFICATION SYSTEM
Part Number: P84767 Rev. A
Copyright 2006 Cooper Wheelock, Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAFEPATH4 SP4-LOC and is the answer not in the manual?

Questions and answers

Related Manuals for Cooper Wheelock SAFEPATH4 SP4-LOC

Summary of Contents for Cooper Wheelock SAFEPATH4 SP4-LOC

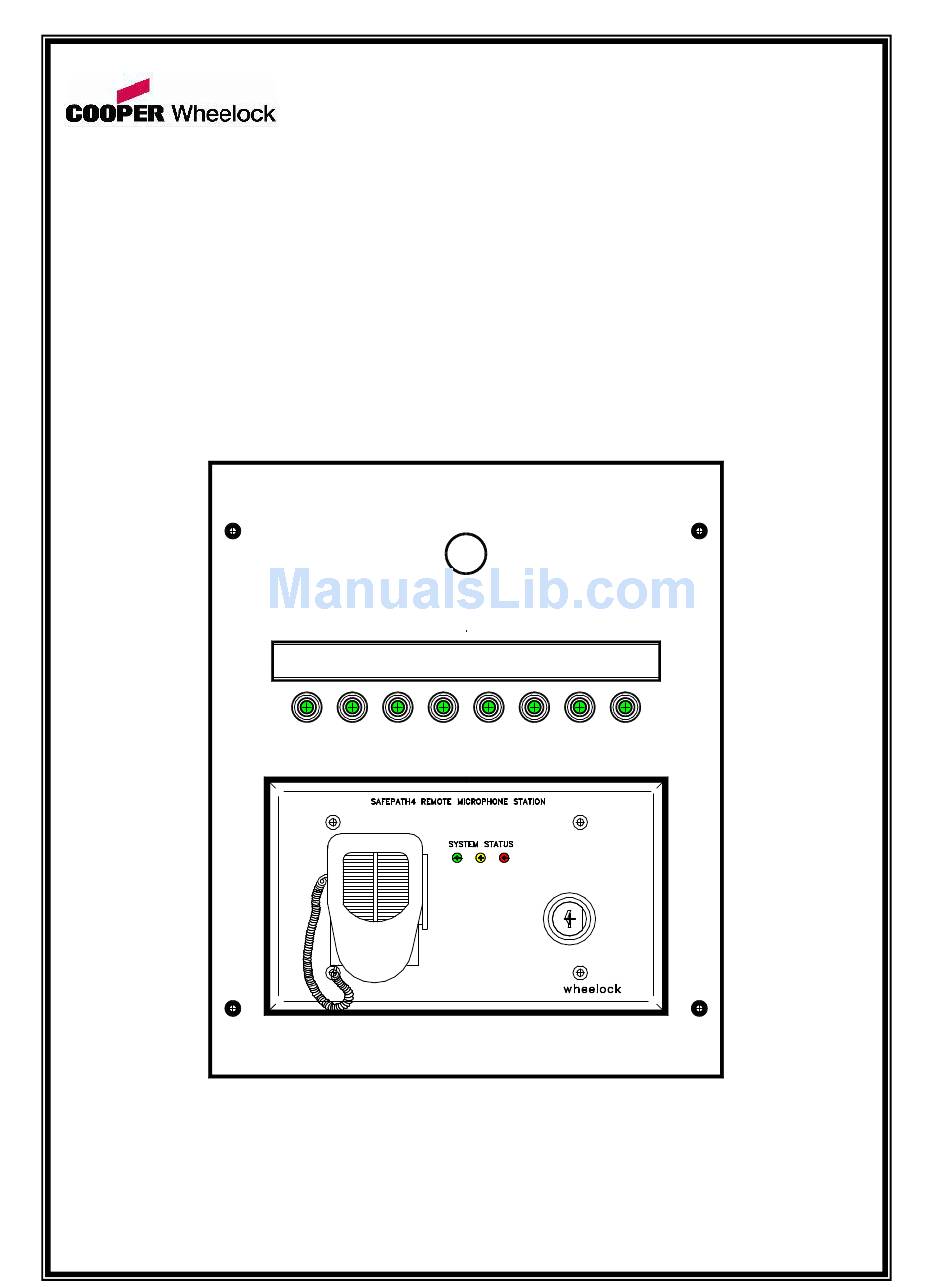

  • Page 1 SP4-LOC SAFEPATH4 REMOTE MICROPHONE AND LOCAL OPERATOR CONSOLE INSTALLATION AND OPERATION MANUAL MASS NOTIFICATION SYSTEM Part Number: P84767 Rev. A Copyright 2006 Cooper Wheelock, Inc. All rights reserved.
  • Page 3 Introduction Thank you for using our products. Use this product according to this instruction manual. Please keep this instruction manual for future reference. The SP4 –LOC Remote Microphone and Local Operator Console is designed to be used with the Facility Communications System using the SafePath4 SP40/2 and the SP40S panels.

  • Page 4: Notation Conventions

    If the HVAC Pushbutton option is being added, the circuit can contain high voltage that can cause serious injury or death to the installer. Additional copies of this manual may be obtained from www.cooperwheelock.com in the Technical Support section, or from: Cooper Wheelock, Inc. 273 Branchport Ave. Long Branch, N.J. 07740 Tel:...

  • Page 5: Technical Specifications

    Technical Specifications Mechanical Dimensions (H x W x D) Backbox: 15 1/4 x 14 1/2 x 4 in. See Figure 1. Surface Front: 15 1/4 x 14 1/2 x 1/8 in. Flush Front: 16 1/4 x 15 1/2 x 1/8 in. Weight 8 lb.

  • Page 6: Panel Door

    15.50" 14.50" MASS NOTIFICATION SYSTEM 16.25" 15.25" PANEL DOOR BACKBOX OUTLINE TRIM RING 1/2" Figure 1. Outside Dimensions for the SP4-LOC Front Mounting COMPLY WITH ALL OF THE LATEST APPLICABLE CODES, REGULATIONS, LAWS, STANDARDS, AND GUIDELINES. 1. Remove the FRONT DOOR ASSEMBLY from the backbox by removing the eight (8) nuts holding the assembly in place.
  • Page 7 MOUNTING HOLE FOR OPTIONAL HVAC EMERGENCY CUTOFF PUSHBUTTON MESSAGE NAMEPLATE MASS NOTIFICATION SYSTEM HOLDER EIGHT (8) PUSH ON/PUSH OFF BUTTON SWITCHES (WHEN THE GREEN PUSH SWITCH IS PUSHED TO THE ON POSITION, THE COLOR CHANGES TO BLACK.) SAFEPATH4 REMOTE MICROPHONE (SPRM) #8-32 TRUSS HEAD SCREWS FOR MOUNTING THE INNER DOOR Figure 2.
  • Page 8 14.50" 9.25" SURFACE FLUSH MOUNT MOUNT HOLES (4) HOLES (8) 15.25" 11.00" 1/4"x1/2" TERMINAL BLOCK MOUNTING STUDS #8-32 DOUBLE KNOCKOUT (3) TOP, BOTTOM, AND BACK 1/2"/3/4" Figure 3. Mounting Holes for Mounting the Backbox, Flush and Surface 3. Connect conduit fittings to the desired cable knockouts, and run the appropriate pushbutton and SPRM wiring into the backbox.
  • Page 9 Installing and Wiring the Inner Door 4. Place the terminal block with the wire harness pointing down, onto the terminal block studs. 5. Connect the wire tie around the harness and to the bottom terminal block stud. 6. Using the washers and nuts, fasten the terminal block to the backbox.. 7.
  • Page 10 MASS NOTIFICATION SYSTEM S1 S2 S3 S4 S5 S6 S7 S8 SP4-LOC HARNESS WIRING SP40S Figure 5. Wiring Diagram SP4-LOC to SP40S The SP40S inputs can be supervised by placing a 10K Ohm resistor across each pair of input terminals on the SP4-LOC terminal block and by switching ON the DIP switches on switch block SW7 positions 1 through 8.
  • Page 11 SP40/2 PANEL 24VDC AUDIO OUT CC/NAC STATUS (CC) AUX IN RM AUDIO Figure 6. Wiring Diagram SPRM to SP40/2 This wiring is power limited. SP40S PANEL CC/NAC 24VDC 24V OUT STATUS (CC) RM AUDIO Figure 7. Wiring Diagram SPRM to SP40S This wiring is power limited.

  • Page 12: Operating Instructions

    1/8" SECURITY MASS NOTIFICATION WIRE HOLES SYSTEM SLAM LATCH 1/2" TRIM RING ON FLUSH MOUNT MODEL FRONT RING #8-32 X 3/4" STUDS (8) ON BACK OF FRONT RING Figure 8. Front Door Layout Operating Instructions: SP40/2 Panel CC/NAC SWITCH SW4 PLACE IN CC POSITION AUXILIARY INPUT SELECTION JUMPER J4.
  • Page 13 Figure 9 shows the locations of the switches and LED’s on the SP40/2 that are required for SPRM operation. 1. Set the NAC/CC switch (SW4) on the SP40/2 PC board to the CC position. 2. Set the AUX IN jumper J2 to the 1V position. 3.
  • Page 14 Figure 11. Exploded View of the Sp4-LOC...

  • Page 15: Limited Warranty

    The liability of Cooper Wheelock, Inc. arising out of the supplying of a product, or its use, whether based on warranty, negligence, or otherwise, shall not in any case exceed the cost of correcting defects as stated in the limited warranty and upon expiration of the warranty period all such liability shall terminate.

  • Page 16: Limitation Of Liability

    Cooper Wheelock, Inc.'s liability on any claim of any kind shall cease immediately upon the installation in the product of any part not furnished by Cooper Wheelock, Inc.
