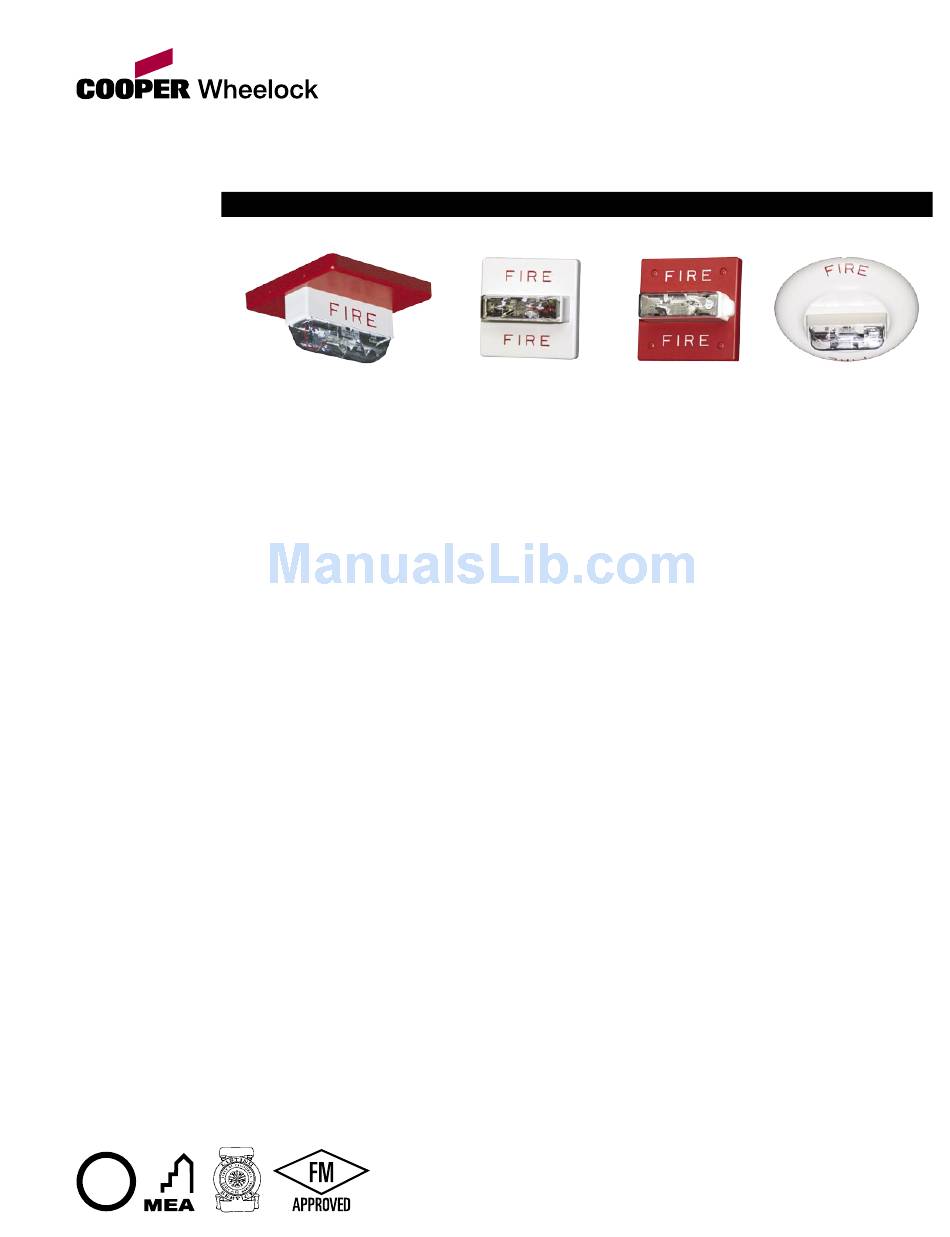

Cooper Wheelock Series RSS Specification

Description

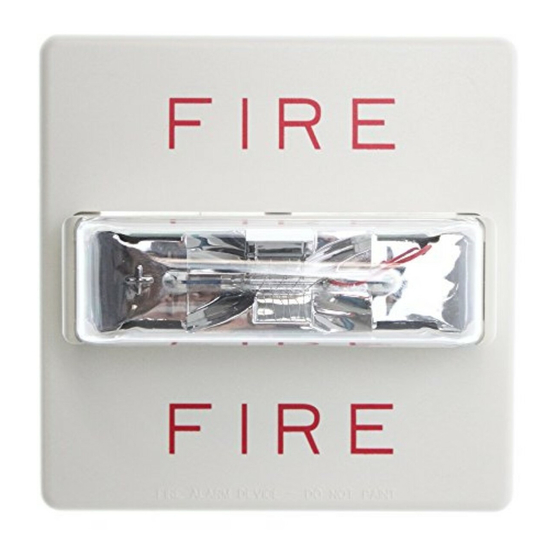

The Wheelock patented Series RSS Strobe Appliances and
Series RSSP Strobe Plates have lower current draw while
maintaining outstanding performance, reliability and cost
effectiveness. These versatile appliances will satisfy virtually all
requirements for indoor, wall or ceiling mount applications.
Strobe options for wall mount models include 1575 or the
Wheelock Patented MCW multi-candela strobe with field
selectable candela settings of 15/30/75/110cd or the high
intensity MCWH strobe with field selectable 135/185cd.
Ceiling mount models include the patented MCC multi-candela
ceiling strobe with field selectable intensities of 15/30/75/95cd
or the high intensity MCCH strobe with field selectable
115/177cd.
All models may be synchronized using the Wheelock SM,
DSM Sync Modules or the PS-24-8MC Power Supplies with
the Wheelock Patented Sync Protocol. Synchronized strobes
can eliminate possible restrictions on the number of strobes
in the field of view. Wheelock's synchronized strobes offer an
easy way to comply with ADA recommendations concerning
photosensitive epilepsy as well as meeting the requirements
of NFPA 72.
The Wheelock Series RSS Strobes employ a Patented Integral
Strobe Mounting Plate that can be mounted to a single gang,
double gang, 4" square, 100mm European backboxes or the
SHBB surface backbox. If the flush backbox has side or top
space between it and the finished wall, the NATP (Notification
Appliance Trimplate) may be used. It provides an additional .65"
of trim for the Appliance. An attractive cover plate is provided
for a clean, finished appearance on all models.
The Series RSSP Multi-Candela Strobe Plates are a cost
effective way to retrofit required wall strobe appliances to
bells, horns, chimes, multitones or speakers and easily mounts
to standard 4" backboxes or for surface mount use with the
Wheelock SBL2 surface backbox.
U
THE CITY OF
NEW YORK
L
®
DEPARTMENT OF BUILDINGS
S5391
151-92-E 7125-0785:141
7300-0785:154
Series RSS and RSSP Strobes and Strobe Plates
Series RSS
Series RSSWP
Series RSS
Features
• Approvals include: UL Standard 1971, New York City (MEA),
California State Fire Marshal (CSFM), Factory Mutual (FM), and
Chicago (BFP) See approvals by model in Specifications and
Ordering Information
• ADA/NFPA/UFC/ANSI compliant. Meets OSHA 29 Part
1910.165
• Wall mount Multi-Candela models are available with Field
Selectable Candela Settings of 15/30/ 75/110cd or 135/185cd.
Single Candela models are available in 1575cd
• Ceiling mount Multi-Candela models are
available with field selectable candela settings of 15/30/75/95cd
or 115/177cd. (Round or Square)
• Strobes produce 1 flash per second over the
regulated voltage range
• 12 and 24 VDC models with wide UL "Regulated Voltage" us-
ing filtered (DC) or unfiltered VRMS input voltage
• Synchronize using the Wheelock sync modules or power sup-
plies with built-in sync protocol
• Fast installation with IN/OUT screw terminals using #12 to #18
AWG wire
For Weatherproof Series RSS See Datatsheet S9004
RSS Round
