Cooper Wheelock E50 Installation Instructions

273 Branchport Avenue
Long Branch, NJ 07740
(800) 631-2148
www.cooperwheelock.com

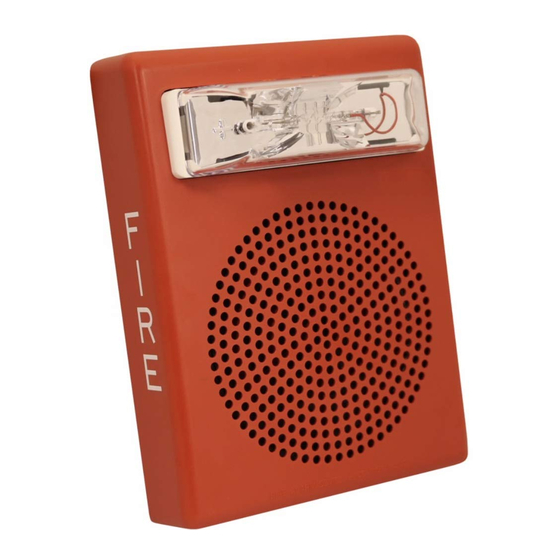

Use this product according to this instruction manual. Please keep this instruction manual for future reference.

GENERAL:

The E50 Multi-Candela Speaker Strobes are UL Listed under Standard 1971 for Signaling Devices for the Hearing Impaired and UL Standard 1480 for Speaker
Appliances. The E50 Multi-Candela Speaker Strobes with amber, blue, green or red lens are UL Listed under Standard 1638 (Visual Signaling Appliance) for Private
Mode Emergency and General Utility Signaling. They are designed for multiple power requirements with high dBA output at each power tap. All models offer a
choice of field selectable taps, 1/8W to 2W, for either 25.0VRMS or 70.0VRMS audio systems. The design incorporates a high efficiency speaker for maximum output
at minimum power across a frequency range of 400Hz to 4000Hz, and features a sealed back construction for extra protection and improved audibility. The Speaker
Strobes can provide non-synchronized strobe operation when connected directly to a Fire Alarm Control Panel (FACP), or provide synchronized strobe operation when
used in conjunction with a Sync Module (SM), Dual Sync Module (DSM), or Wheelock's Power Supplies, PS-12/24-8MP and PS-12/24-8CP. All models are UL
Listed for indoor use only with the backboxes specified in these instructions (see Mounting Options).
NOTE: All CAUTIONS and WARNINGS are identified by the symbol
CAUTION: The speaker strobe appliance is a fire alarm device. Do not paint
WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY.
INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION, INSTALLATION AND/OR OPERATION OF
THESE PRODUCTS IN AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO
YOU AND/OR OTHERS.

SPECIFICATIONS:

Model Voltage
(VRMS)
E50(X)-24MCW 25/70
E50(X)-24MCC 25/70
E50(X)-24MCWH 25/70
NOTES:
1. Strobes will produce 1 flash per second over the "Regulated Voltage" range.
2. All models are UL Listed for indoor use with a temperature range of +32ºF to +120ºF (0ºC to +49ºC) and maximum humidity of 85% RH.
3. dBA is rated per UL Standard 1480 for Speaker Appliances. Frequency range of speakers is 400-4000Hz.
4. For UL applications these appliances were tested to the operating voltage limits of 16-33 volts using Filtered (DC) or unfiltered Full-Wave-Rectified (FWR).
Do not apply 80% and 110% of these voltage values for system operation.
5. Check the minimum and maximum output of the power supply and standby battery and subtract the voltage drop from the circuit wiring resistance to
determine the applied voltage to the strobes.
6. Strobes with clear and amber lens meet the required light distribution patterns defined in UL1971.
7. Candela ratings are for clear lens. Derate approximately 25% for amber lens, 55% for green, 70% for blue and 80% for red.
UL
Voltage
DC 16-33VDC
FWR 16-33VRMS
NOTE: Candela setting will determine the current draw of the product.
NOTE: The maximum wire impendence between strobes shall not exceed 35 OHMS. The maximum number of strobes on a single notification appliance circuit shall
not exceed 47.
CAUTION: Speaker Strobes are not designed to be used on coded systems in which the applied voltage is cycled on and off.
Copyright 2007 Cooper Wheelock. All rights reserved
Thank you for using our products.
INSTALLATION INSTRUCTIONS
E50 MULTI-CANDELA SPEAKER STROBES
Table 1: UL Listed Models and Ratings
Speaker
dBA at 10 Feet
(Rated Watts)
1/8 1/4 1/2 1
77.0 79.5 82.5 85.0
77.0 79.5 82.5 85.0
77.0 79.5 82.5 85.0
(X) denotes color of lens. A=amber, B=blue, G=green, R=red.
Table 2: UL Current Rating for Strobe Only
Maximum RMS Current (AMPS)
24MCW
15cd 30cd 75cd
0.060 0.092 0.165
0.102 0.155 0.253
. All warnings are printed in bold capital letters.
FAILURE TO COMPLY WITH ANY OF THE FOLLOWING
Regulated
Voltage
2 (VDC/VRMS)
88.0 24
88.0 24
88.0 24
24MCWH
110cd 135cd 185cd
0.220 0.300 0.420
0.347 0.455 0.645
Strobe
Voltage Candela
Range (cd)
(VDC/VRMS)
16-33.0 15/30/75/110
16-33.0 15/30/75/95
16-33.0 135/185
24MCC
15cd 30cd 75cd 95cd
0.065 0.105 0.189 0.249
0.110 0.170 0.280 0.375
Mounting
Options
A,B
A,B
A,B
P84579K
1
Sheet of 5
