LEDs
There are three LEDs (Light emitting diodes) on the Actiontec Wireless Access Point.
These visual aids can help you verify proper operation.
lV

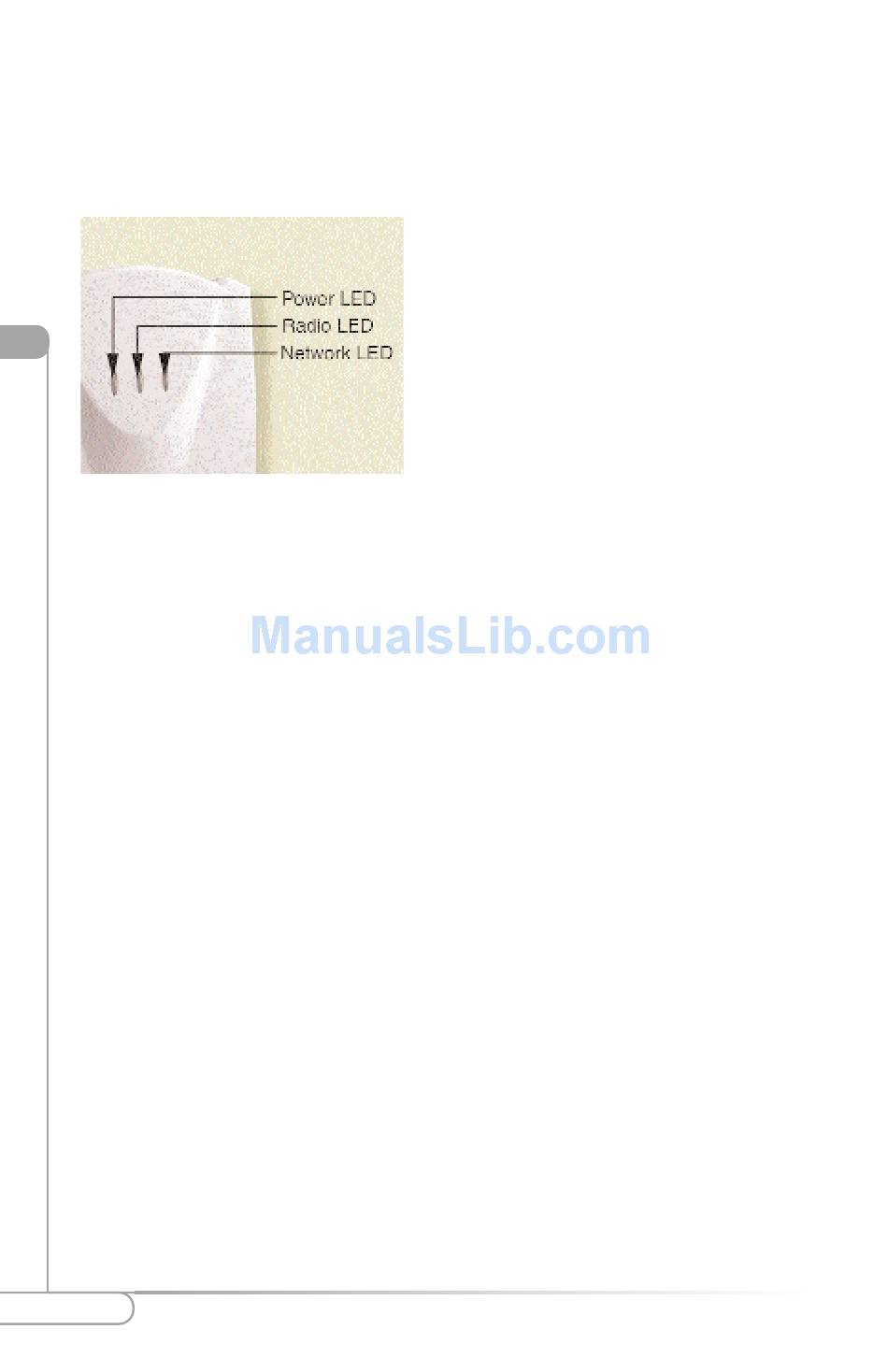

Figure 8: Actiontec Wireless Access Point LEDs
10
Installing the Actiontec Wireless Access Point
Power
The power LED lights up when
the Access Point is connected to
a power source.
Radio
The radio LED blinks when the
Access Point is actively connected
with wireless clients.
Network The network LED lights up when
the Access Point is connected or
actively exchanging Ethernet packets.
