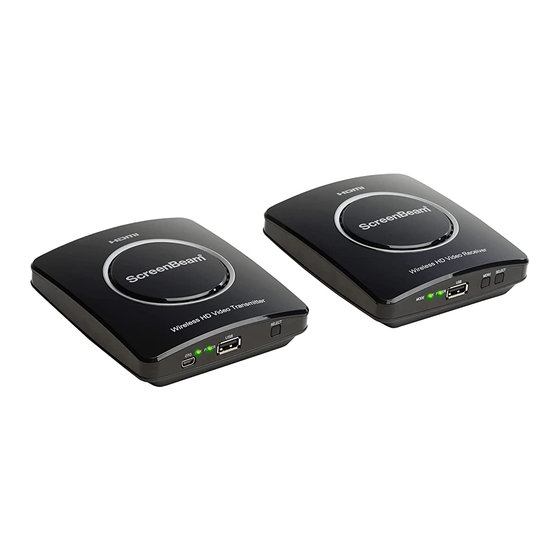

- Page 1 MyWirelessTV 2 Multi-Room Wireless HD Video Kit Model#: MWTV2TX & MWTV2RX User Manual V1.0...
-
Page 2: Table Of Contents
Features ..........................1 1.2. Minimum System Requirements ..................2 1.3. Package Contents ......................2 1.4. Getting To Know MyWirelessTV 2 ..................2 1.4.1. MyWirelessTV 2 Transmitter ................. 2 1.4.2. MyWirelessTV 2 Receiver ..................3 Part II. Connecting MyWirelessTV 2 ....................5 2.1. -
Page 3: Part I. Introduction
Part I. Introduction Thank you for purchasing MyWirelessTV 2. This product will allow you to transmit high-definition content from a set top box, gaming console, or other source with an HDMI port, to an HDTV monitor in another location, without lag or picture quality loss. It allows you... -
Page 4: Minimum System Requirements
MyWirelessTV Transmitter and Receiver. 1.4.1. MyWirelessTV 2 Transmitter The MyWirelessTV 2 Transmitter features six ports (Power, HDMI Input, HDMI Out to TV, IR Transmit, USB, and OTG), one button (SELECT), and two LEDs (LINK and POWER). Transmitter Front Panel LINK LED. -
Page 5: Mywirelesstv 2 Receiver
Transmitter, enabling the use of the source device remote control in tandem with MyWirelessTV. 1.4.2. MyWirelessTV 2 Receiver The MyWirelessTV 2 Receiver features four ports (Power, HDMI Out to TV, IR Ext, and USB), two buttons (MENU and SELECT), and three LEDs (MODE, LINK, and POWER). Receiver Front Panel MODE LED. - Page 6 SELECT button saves the setting. And you can reset the receiver by holding the MENU button for more than five (5) seconds and then releasing the button. Note: You can access the GUI menu when the receiver has connected to the transmitter or when the receiver has not paired with any transmitter.
-
Page 7: Connecting Mywirelesstv 2
Part II. Connecting MyWirelessTV 2 Connecting MyWirelessTV consists of two parts: connecting the Transmitter to a source of high-definition video, and connecting the receiver to a high-definition television monitor. This chapter will take you through both procedures, as well as setting up the IR Blaster and IR Receiver to allow you to use the remote control of the source device in the location you are watching (or playing) your content. -
Page 8: Receiver
HDMI cable into the HDMI Out to TV port on the back of the Transmitter. Otherwise, get an HDMI cable from MyWirelessTV 2 Kit box. Plug one end into the HDMI Input port on the back of the Transmitter. -
Page 9: Connecting The Mywirelesstv Receiver
2.3. Connecting the MyWirelessTV Receiver You should install the Receiver near the HDTV monitor where you intend to watch the content being streamed from the source device. Get the Wireless HD Video Receiver, HDMI cable and power supply. Go to the TV that you want to connect. -
Page 10: Connecting The Ir Receiver Extension Cable
2.4.2. Connecting the IR Receiver Extension Cable The IR Receiver Extension Cable receives signals from the source device remote control and sends them back to the source device. Get the IR Receiver Extension Cable from the MyWirelessTV kit. The IR Receiver Extension Cable has a green connector. -
Page 11: Configuring Mywirelesstv 2
Part III. Configuring MyWirelessTV 2 This chapter describes using the MyWirelessTV 2 graphical user interface, which allows you to configure various aspects of MyWirelessTV, including changing the language, adjusting video mode, and pairing. 3.1. Graphical User Interface To access MyWirelessTV's graphical user interface, press the MENU button on the Receiver when the Receiver has connected to the Transmitter or when the Receiver has not paired with any Transmitter. -
Page 12: Video Mode
Toggle to the desired language by pressing the Menu button, and press the Select button to confirm. Currently, only English is available. To return to the Main Menu screen, press the MENU button to toggle to the Back option, and press the SELECT button. 3.1.2. -
Page 13: Pairing
Toggle to the desired video mode by pressing the MENU button, and press the SELECT button to confirm. The selected video mode takes effect immediately. To return to the Main Menu screen, press the MENU button to toggle to the Back option, and press the SELECT button. -
Page 14: Exit
During the count-down period, press the Select button on your transmitter to complete this pairing. Note: If you do not press the Select button on the transmitter during the 120-second countdown, or pairing fails due to other reasons, the Cannot Detect Transmitter screen will be displayed. -
Page 15: System Information
Note: After the factory reset, you need to re-pair the two devices. 3.3. Updating MyWirelessTV Firmware Actiontec recommends that all MyWirelessTV users update their device with the latest firmware update to take advantage of recently developed performance enhancements, new features, and bug fixes. Check the current firmware version number on the Main Menu Screen (pressing the MENU button on the Receiver). - Page 16 Follow the online instructions to download the latest MyWirelessTV firmware. Extract the file and copy “aeimwtv2.bin” to a USB flash drive. Once the firmware is saved to the USB flash drive: On a Receiver, power off the device, and plug the USB flash drive into the USB ...
-
Page 17: Appendix I. Troubleshooting
Appendix I. Troubleshooting This chapter describes some problems you may encounter using MyWirelessTV 2, and possible solutions to those problems. Also included are frequently asked questions (FAQs), and the answers to the questions. FAQs Why can't I see anything on the TV next to the Transmitter? Check the cable connections from the external source (i.e., cable/satellite set top box,... - Page 18 I'm connected to a Cable box and seeing one of the following issues: snowy display, or video appears only once, or black/blank screen, or distorted green/pink image. The Cable box might be an older generation and is not fully HDCP-compliant. Please check support site for further details.
-
Page 19: Specifications
Appendix II. Specifications This chapter lists the specifications of the MyWirelessTV 2 devices. Video: H.264 video compression Supports up to 1080p60 in one Tx to one Rx setup Audio: Non-compressed LPCM Pass-through 5.1 surround A/V interface: Transmitter: One HDMI input &... - Page 20 Regulatory and compliance: FCC, IC, and UL Warranty: One (1) year limited ...
