Summary of Contents for Fisher-Price T4840

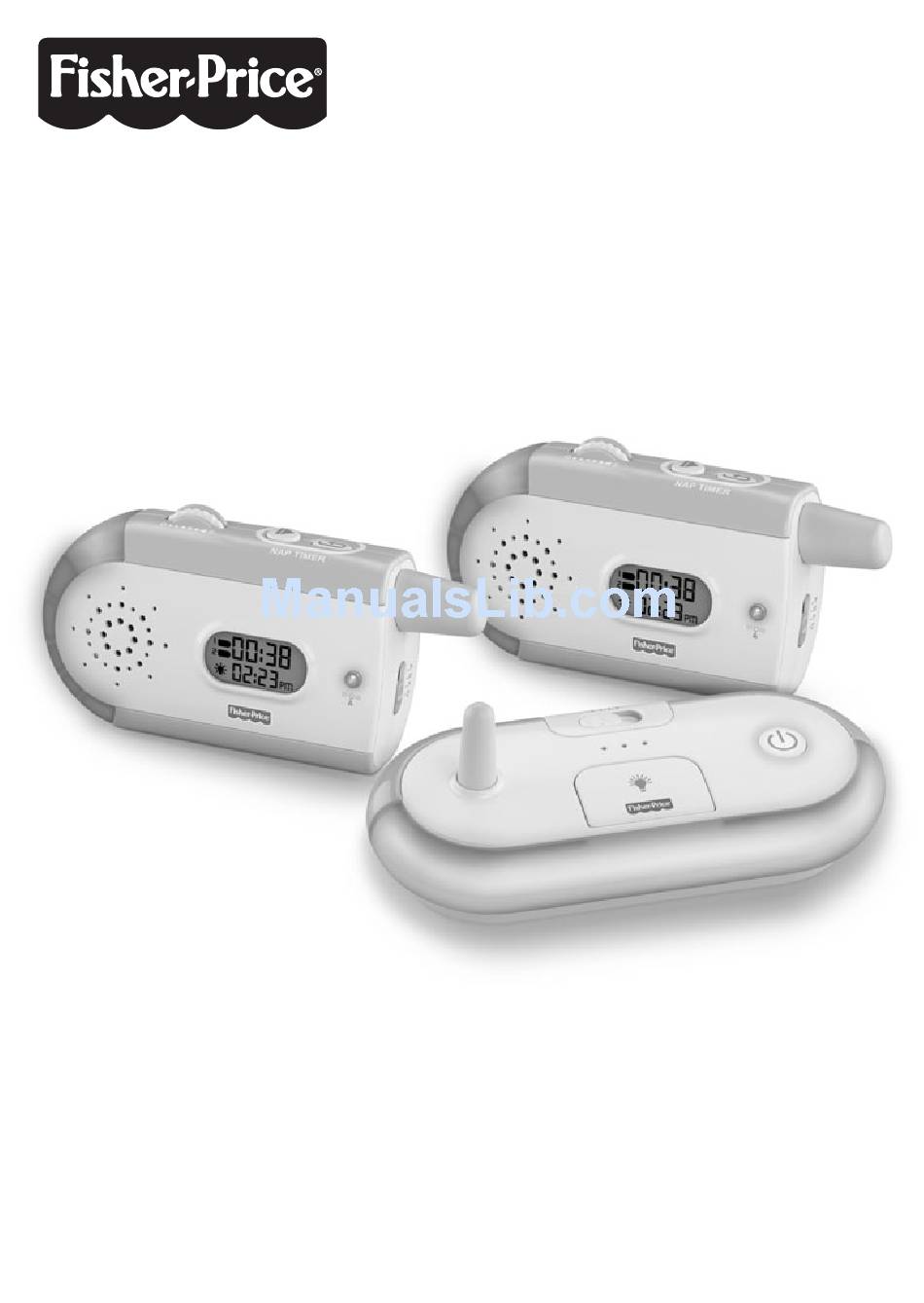

- Page 1 T4840 www.fi sher-price.com...
- Page 2 IMPORTANT! DANGER To prevent electric shock, do not immerse in water; wipe clean with damp cloth. WARNING To prevent strangulation with power cord, never place transmitter within reach of child. CAUTION This product cannot replace responsible adult supervision.
- Page 3 • An AC adaptor is not a toy. • Disconnect the AC adaptor from the transmitter and receivers before cleaning. • Fisher-Price does not recommend the use of two monitors in one house. ® • Always remember that you are using public airwaves when using your monitor. Conversations, even from rooms near your transmitter, may broadcast to other nursery monitors, radios, cordless telephones or scanners outside your home.
- Page 4 Fisher Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. ©2010 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. PRINTED IN CHINA T4840a-0920...
- Page 5 Features Transmitter BACK VIEW 2 Receivers SIDE VIEW...
- Page 6 Nightlight Button – Press to turn on a soft glow. Nightlights Power Button and L.E.D. Microphone Nightlight Timer Switch - Turn on for 30 minutes of light. Channel Switch - Choose from four different channels. Power/Volume Dial Power L.E.D. and Range Indicator - Lights when receiver power is ON; fl ashes (and you’ll hear a tone too) when the receiver is out of range of transmitter.
- Page 7 Receiver Battery Installation (Optional) Hint: We recommend using alkaline batteries for longer battery life. • Locate the battery compartment door on the back of each receiver. • Loosen the screw in each battery compartment door with a Phillips screwdriver. Remove each battery compartment door.
-
Page 8: Transmitter Battery Replacement
Transmitter Battery Replacement For best performance, we recommend replacing the batteries that came with the transmitter with four, new “AAA” (LR03) alkaline batteries. • Locate the battery compartment door on the bottom of the transmitter. • Loosen the screws in the battery compartment door. Remove the door. •... - Page 9 Testing Sound Reception Test transmitter and receiver reception each time you change location of use. • Place the transmitter in the room where you intend to use it. • Set the transmitter channel switch to the same channel as the receiver(s). •...
- Page 10 Testing Sound Reception Power/Volume Dial Sound Lights • Place a receiver in the room where you intend to use it. • Set the receiver(s) channel switch to the same channel as the transmitter. • Turn the power/volume dial to turn the power ON. Wait a few seconds to see if you have a good signal.
-
Page 11: Setup And Use
Clock Set • Turn receiver power ON. • Press and hold the start/stop button reset button to make a choice. • Press the start/stop button to scroll through hour choices. • Press the start/stop button button to scroll through minute choices. •... - Page 12 Channel Switch Channel Switch Nightlight Button Nightlight Button • Place the transmitter in the same room with child. Point the microphone towards the crib or play area. • Set the transmitter channel switch to the same channel as the receiver(s). •...
- Page 13 Sound Lights • Place a receiver where you can see and hear it. • To use AC power, unwrap and fully extend the AC adaptor cord for best reception. Insert the AC adaptor pin into the DC input jack on the receiver and plug into a standard wall outlet. Use the AC adaptor only in a wall outlet.
-
Page 14: Problems And Solutions
Hint: If, after checking all of these solutions, you believe that your transmitter power cord or AC adaptor are damaged, please contact Fisher-Price Receiver is out of range of transmitter. Move receiver closer to transmitter. Note: Range varies depending on surrounding conditions such as noise levels, physical obstructions and signal interference. -
Page 15: Fcc Statement
Monitor Model Number: T4840 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 16 ICES-003 NMB-003 ICES-003 This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. NMB-003 Cet appareil numérique de la classe B est conforme à...
