Summary of Contents for DiamondDigital DiamondDigital DV260
-

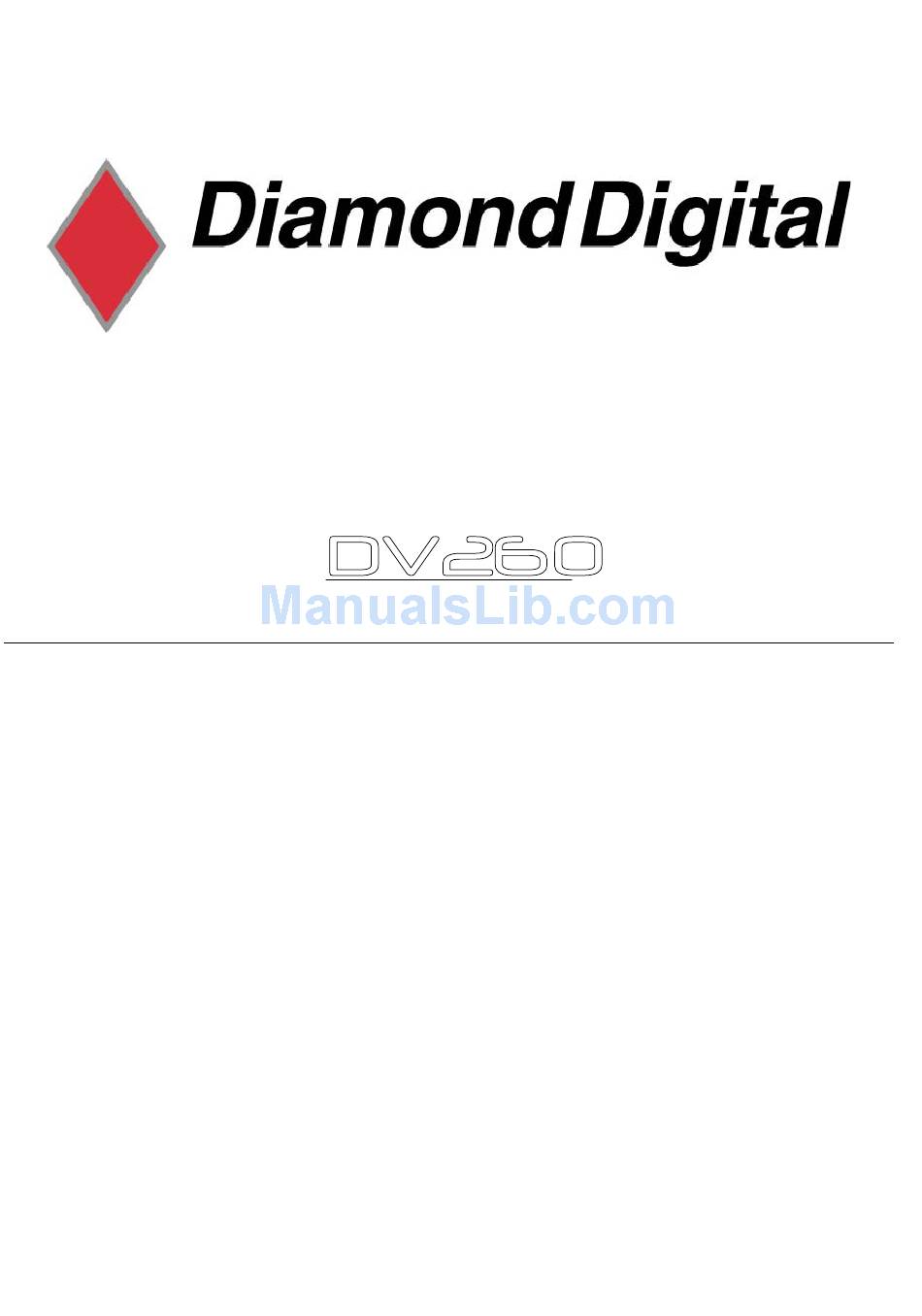

Page 1: User Manual
DV260 Wide Screen LCD Flat Panel Display 26” (66cm) LCD Panel Size User Manual... - Page 2 Color LCD TV USER'S MANUAL Thank you for purchasing the LCD TV. Before using your TV, please read the "SAFETY INSTRUCTIONS" and this "USER'S MANUAL" carefully to learn how to operate the TV properly. Keep this manual in a safe place. You will find it useful in the future.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAFETY POINTS THAT YOU SHOULD KNOW ABOUT YOUR LCD TV Our reputation has been built on the quality, performance, and ease of service of LCD TV. Safety is also foremost in our minds in the design of these units. To help you operate these products properly, this section illustrates safety tips which will be of benefit to you. - Page 4 IMPORTANT SAFETY INSTRUCTIONS Read before operating the appliance 18. The Shock Hazard Marking and Associated Graphical Symbol is Follow all warnings and instructions marked on this TV. provided on the bottom panel of the unit. 1. Read these instructions. 19. This apparatus is designed to comply with the recommended safety 2.
-
Page 5: Power Saving System
Never use acid/alkaline detergent, alcoholic detergent, abrasive cleaner, Important powder soap, Electronic equipment cleaner, car wax, glass cleaner, etc. especially because they would cause discoloration, scratches or cracks. Please read this User's Manual thoroughly, especially the Important Safety Instructions on Pages 2 to 3 and 6 to 10. Misuse may cause damage to your FEATURE LCD TV and could shorten its lifespan, or may even cause injury to yourself. -
Page 6: Table Of Contents
CONTENTS Volume Adjustment............. 19 IMPORTANT SAFETY INSTRUCTIONS......2 Audio Mute..............19 Using the Menu Screen (On-screen display system) 20 SAFETY INSTRUCTIONS ..........6 Image Settings............21 INSTALLATION INSTRUCTIONS .........10 Display Settings ............22 Desk Top Stand ............10 Advanced PC.............. 23 Anti-Tipping Prevention..........10 Audio Settings............. -
Page 7: Safety Instructions
SAFETY INSTRUCTIONS This LCD TV has been designed and manufactured to meet international safety standards, but like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. Before using this product, please read and understand the Safety Instructions thoroughly to ensure correct usage, and follow all the instructions About the Symbols Various symbols are used in this manual, the user’s manual and on the product itself to ensure correct usage, to prevent danger to the users and to prevent property damage. - Page 8 SAFETY INSTRUCTIONS (continued) WARNING Be cautious of the power cord connection. Incorrect connection of the power cord could result in fire or electrical shock. Do not touch the power cord with a wet hand. Check that the connecting portion of the power cord is clean (with no dust), before using. Use a soft and dry cloth to clean the power plug. Insert the power plug into a power outlet firmly.
-
Page 9: Installation Environment
SAFETY INSTRUCTIONS (continued) CAUTION Be careful in moving the TV. Neglect could result in an injury or damage. Do not move the TV during use. Before moving, disconnect the power plug and all external connections. Get the help of another person if you find it difficult to move the TV alone. Avoid any impact or shock to the TV;... -
Page 10: Other Precautions
SAFETY INSTRUCTIONS (continued) Prevention of an obstacle to Radio receivers This TV has been designed pursuant to the international EMI standards. This is to prevent a problem to Radio receivers. Keep the TV away from Radio. Adjust Radio antennas in order for the TV not to receive interference. The antenna cable of Radio should be kept away from the TV. -
Page 11: Installation Instructions
INSTALLATION INSTRUCTIONS Desk Top Stand Desktop stand WARNING Use one of the special mounting units to install this product. A mounting unit of insufficient strength or inadequate design can cause overturning or dropping and result in fire, electrical shock or injury. Please note that our company assumes absolutely no responsibility for personal injuries or property damage caused by use of other mounting units or improper installation. -
Page 12: Power Cord Connection
INSTALLATION INSTRUCTIONS (continued) Power Cord Connection Connect the power cord, after completing all other connections. 1. Connect the power cord to the rear of the TV. 2. Connect the power cord plug to the power outlet. main power switch is located on the side 3. -
Page 13: Connecting Antenna / Cable Tv Signal
INSTALLATION INSTRUCTIONS (continued) Connecting Antenna / Cable TV Signal Make sure that the power switch of the TV is turned off. 1. TV IN connector (Analog) Connect an antenna or a cable TV box using the coaxial cable 2. HDMI IN connector Connect devices such as a DVD player or set-top box 3.PC Audio connector for VGA Connect the audio cable from your computer 4.VGA connector Connect to the VGA cable from your computer to the TV 5. -
Page 14: Connecting To Video Components
INSTALLATION INSTRUCTIONS (continued) Connecting to Video Components 1. Make sure that the power switch of the TV is turned off. 2. Make sure that the power switch of the Video component is turned off. U.S. TV Quick Connection S-CABLE CAMCORDER Side I/O : AV3 (Option) AERIEL Earphone (Option) -
Page 15: Connecting To A Pc
INSTALLATION INSTRUCTIONS (continued) Choose an appropriate site and install the product on a level table where the stand is secure. Ensure that a power socket is readily accessible near the place where you install the TV. Make sure that the power switch of this device is turned off. Connecting to a PC 1. -
Page 16: Component Names
COMPONENT NAMES Main Unit Front Panel Cabinet (Front Frame) Control Panel These buttons are located on the top. Indicator lamp The main power switch is located at the back, on the Press the television panel lower surface. power button. (26”) MENU buttons VOLUME buttons (function or return one step) -
Page 17: Attention
COMPONENT NAMES (continued) Remote Control MUTE DISPLAY LED INDICATION TV TUNER POWER ON/OFF CH ( ) or power NUMBER KEYPAD VOLUME ( PICTURE SLEEP RECALL ASEPCT RETURN MENU SELECT ( PROGRAM / ADJUST ( ENTER SOURCE I/II AV3 (option) HDMI AV4 (option) INDEX MODE... -
Page 18: Remote Control (Continued)
COMPONENT NAMES (continued) Remote Control (continued) POWER SOURCE Press this button to turn the TV on or off. OSD source selec input menu MUTE Press this button to turn off the sound. Press it Option, depen on model define. once more or press the volume up button to ... -
Page 19: Operating Instructions
OPERATING INSTRUCTIONS Turning Power Off 1. To turn the TV power OFF, press the power buttonor the power button on the remote control. Note: During normal use, the main power switch is set in the ON position. Power Lamp Power lamp Power Power Operation... -
Page 20: Selecting Av Inputs
OPERATING INSTRUCTIONS (continued) Volume Adjustment The volume can be adjusted by pressing the buttons of the remote control (or the < and > volume buttons of the TV). Volume setting value SOURCE button Adjustment status guide VOLUME buttons When the volume buttons are pressed, the volume adjustment status guide will be displayed. -
Page 21: Using The Menu Screen (On-Screen Display System)
OPERATING INSTRUCTIONS (continued) Using the Menu Screen (On-screen display system) POWER OFF When the MENU button is pressed, the adjustment menu screen will appear. Adjustment and setting are possible by using the SELECT buttons, PROGRAM ADJUST buttons and the ENTER button. -
Page 22: Image Settings
OPERATING INSTRUCTIONS (continued) Image Settings Image Settings Personal Scheme Brightness Contrast Saturation Medium Back Light Color Temp. Cool Advanced : select ENTER : action RETURN : back 1. Press the “MENU” button to display the Main Menu screen. 2. Press the ENTER button to confirm then use the SELECT buttons to select the item to be adjusted and then use the ADJUST buttons to adjust the selected items. -
Page 23: Display Settings
OPERATING INSTRUCTIONS (continued) Display Settings Display Settings Full Screen Aspect Ratio PIP Mode Bottom-Right PIP Position : select ENTER : action RETURN : back Selecting Source While a black box appears on the screen, press SOURCE button menu appears. Picture mode will change in the following sequence, each time the remote button is pressed. Select the SOURCE by using the select keys on the remote control. -
Page 24: Advanced Pc
Advanced PC Selected Setup hint characters Press the ENTER button to action. AUTO Adjustment Normally set to off mode. Adjust automatically for clock, phase, and position. POSITION Press the PROGRAM button to adjust the display position Adjust the horizontal and vertical display positions. PHASE Slows the dot clock Phase Advances the dot clock Phase... -
Page 25: Setup
OPERATING INSTRUCTIONS (continued) Setup Setup Tuner/Channel OSD Timeout Sleep Timer Reset Default : select ENTER : action RETURN : back Selected Setup hint characters Country Auto Scan Channel Edit Tuner/Channel Adjusts Tuner/Channel Settings. 10 Sec 30 Sec 5 Sec OSD Timeout Adjusts OSD display and on-screen time 30 Min 60 Min... -
Page 26: Channel Setting
OPERATING INSTRUCTIONS (continued) Channel Setting *Note: The TV must be in TV mode for access to this Menu. When operating the TV at first time, its TV system is at “default factory mode” and this mode cannot display the image normally on the screen. In order to watch the TV program without problem, please refer to the follow steps to setup the TV system accordingly for normally display 1. -
Page 27: Channel Edit
Enter “Channel Edit” menu: Press “Menu” key to enter OSD -> Select “Setup” page-> “Tuner/Channel”-> “Channel Edit”, you will see “Channel Edit” menu, it will display the channels that the TV currently can show Channel Edit Name Frequency TV System 001. - Page 28 Yellow key: for editing channel’s frequency. After pressing the “Yellow” key, it will show a frequency tuning window, use “Up/Down/Left/Right” to tune to your required frequency Frequency 55.25MHz Fine Tune : select : sction MENU : exit Blue key: for editing the TV system. After pressing the “Blue” key, it will show a TV system edit window (containing Color and Sound system), use “Up/Down/Left/Right”...
- Page 29 3. MPX(I/II) of remote control: The MPX(I/II) button of remote control is used only when using the TV system and different TV system will present difference selection. When a bilingual program is received, the sound mode display appears as shown on the right. Press the MPX(I/II) button to select the sound to be heard 1).
-
Page 30: Aspect
OPERATING INSTRUCTIONS (continued) ASPECT Each time the ASPECT button of the remote control is pressed, the screen display size will change in sequence and the status will be displayed at the bottom of the screen. During TV/VIDEO signal input (AV 1,AV 2, AV 3 (option)) Full Screen Pillar Box ASPECT... -
Page 31: Teletext Menu
OPERATING INSTRUCTIONS (continued) Teletext Menu Text / MIX Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language (cable networks, satellite channels, etc.). Press TEXT / MIX Key: This is used to call teletext, and exit this function when press again Press This is used to select a page when TEXT function enable, enter the number of the page required... -
Page 32: Troubleshooting
TROUBLESHOOTING Symptoms If the point to check does not correct the symptoms, please contact your local Service center for assistance. WARNING Self servicing can be hazardous. See Page Symptom Point to check There is no picture and the power-indicating lamp Check to see that the power cable is properly is off. - Page 33 TROUBLESHOOTING(continued) Symptoms(continued) See Page Symptom Point to check The temperature of the display panel surface is The LCD display panel works by lighting phosphors. In some cases, this may warm. cause the temperature of the panel surface to increase. Please note that this is not a malfunction.
- Page 34 TROUBLESHOOTING(continued) Symptoms(continued) Make the checks suggested below depending on the symptoms observed. If the symptoms remain unresolved, contact your dealer. WARNING Do not attempt to service this unit. Symptom Possible reason Remedy (1)Connection of antenna/cable lead in wire to (1)Make new connection and/or change the TV is poor antenna plug (2)Corroded or poor antenna/cable...
-
Page 35: Abnormal Displays Corrections Vga Only
TROUBLESHOOTING (continued) Abnormal Displays Corrections VGA Only Depending on the kind of system equipment used, images may not be displayed normally. In this case, make the adjustments suggested below. (only forVGA) Text displayed across the screen appears vertically streaked, with some characters blurred (figure 1). Symptom 1 The display image appears flowing (figure 2) (VGA input). -
Page 36: Product Specifications
PRODUCT SPECIFICATIONS 575.769 (H) × 323.712 (V) Display dimensions Approx. 26inches ( Panel Resolution 1360 (H) x 768 (V) pixels Net dimensions 790 (W) x 585.3 (H) x 308.5 (D) mm (Speaker W/I under) Net weight 18.5+-0.5 kg (including Speakers / Stand) Temperature Operating: 5°C to 35°C, Storage: -15°C to 60°C Ambient... -
Page 37: Component Connection
PRODUCT SPECIFICATIONS (continued) Component Connection Component Connection VGA Input (D-sub 15 pin connector) Input signal G or sync on green No connection When different kinds of input signals are simultaneously input to the TV No connection via a graphics board or the like, the TV will automatically select the R.GND signals in the following priority order: G.GND... - Page 38 PRODUCT SPECIFICATIONS (continued) Recommended Signal List Digital HDMI Video Timing Chart Resolution H-freq (kHz) V-freq. (Hz) Preposed Remark Video ( Digital) 720 x 480i 15.734 720 x 480P 31.5 720 x 576i 15.625 720 x 576P 31.25 1280 x 720P 1280 x 720P 37.5 1920 x 1080i...
- Page 39 With Composite Input and S-video Input (AV1~AV2 input) Signal mode Horizontal Vertical frequency Remarks Signal Resolution frequency (kHz) name (Hz) NTSC-M 59.94 15.73 15.625 SECAM 15.625 With Y, Cb, Cr / Y, Pb, Pr input (AV2 component input) Signal mode Horizontal Vertical frequency...
- Page 40 If problems remain after checking this manual, please contact your place of purchase or contact: Australian Service Contacts, Visit the Customer Support section of Mitsubishi Electric Australia’s web site at www.mitsubishielectric.com.au for details of your nearest Mitsubishi Electric Authorised Service Center,...
