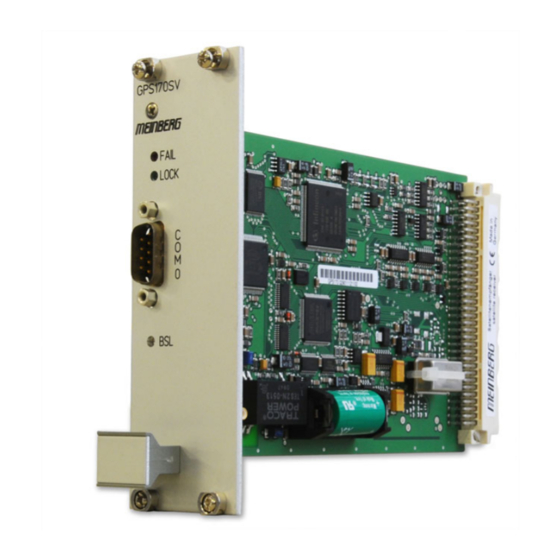

GPS170SV: GPS Satellite Receiver (Eurocard)
The variety of inputs/outputs allows the use for various synchronization tasks and the measurement of
asynchronous time events
Key Features
- Pulses per second and per minute
- 2 time trigger inputs
- 2 RS232 interfaces
- Alarm output
- Optional DDS frequency synthesizer
- DCF77-simulation
- Antenna connected with up to 300m of standard coaxial cable RG58
- DC-insulated antenna circuit
- Standard frequency outputs
- Flash-EPROM with bootstrap loader
- Optional up to 4 serial ports
3 programmable switching outputs
timecode generator (IRIG-B, AFNOR)
- Including [1]
GPS
rev 2013.0704.1631
antenna, 20m standard cable and manual on USB key
Page 1/4
Meinberg Radio Clocks
Lange Wand 9
31812 Bad Pyrmont, Germany
Phone: +49 (5281) 9309-0
Fax:
+49 (5281) 9309-30
http://www.meinberg.de
info@meinberg.de
gps170sv
Advertisement
Related Manuals for Meinberg GPS170SV
Summary of Contents for Meinberg GPS170SV
-
Page 1: Key Features
Phone: +49 (5281) 9309-0 Fax: +49 (5281) 9309-30 http://www.meinberg.de info@meinberg.de GPS170SV: GPS Satellite Receiver (Eurocard) The variety of inputs/outputs allows the use for various synchronization tasks and the measurement of asynchronous time events Key Features - Pulses per second and per minute... - Page 2 Description The frequency locking of the master oscillator to the GPS-system enables the module GPS170SV to generate fixed and optionally programmable standard frequencies with high accuracy and stability. Various oscillator options allow the cost efficient implementation of different requirements concerning the accurracy of the outputs.
- Page 3 Synthesizer 1/8 Hz up to 10 MHz (TTL level, sine wave 1.5Veff, open drain) Optional up to 4 serial interfaces, 3 programmable TTL outputs and timecode generator (IRIG-B, AFNOR) RoHS-Status of the product This product is fully RoHS compliant rev 2013.0704.1631 Page 3/4 gps170sv...
- Page 4 Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. Manual...
