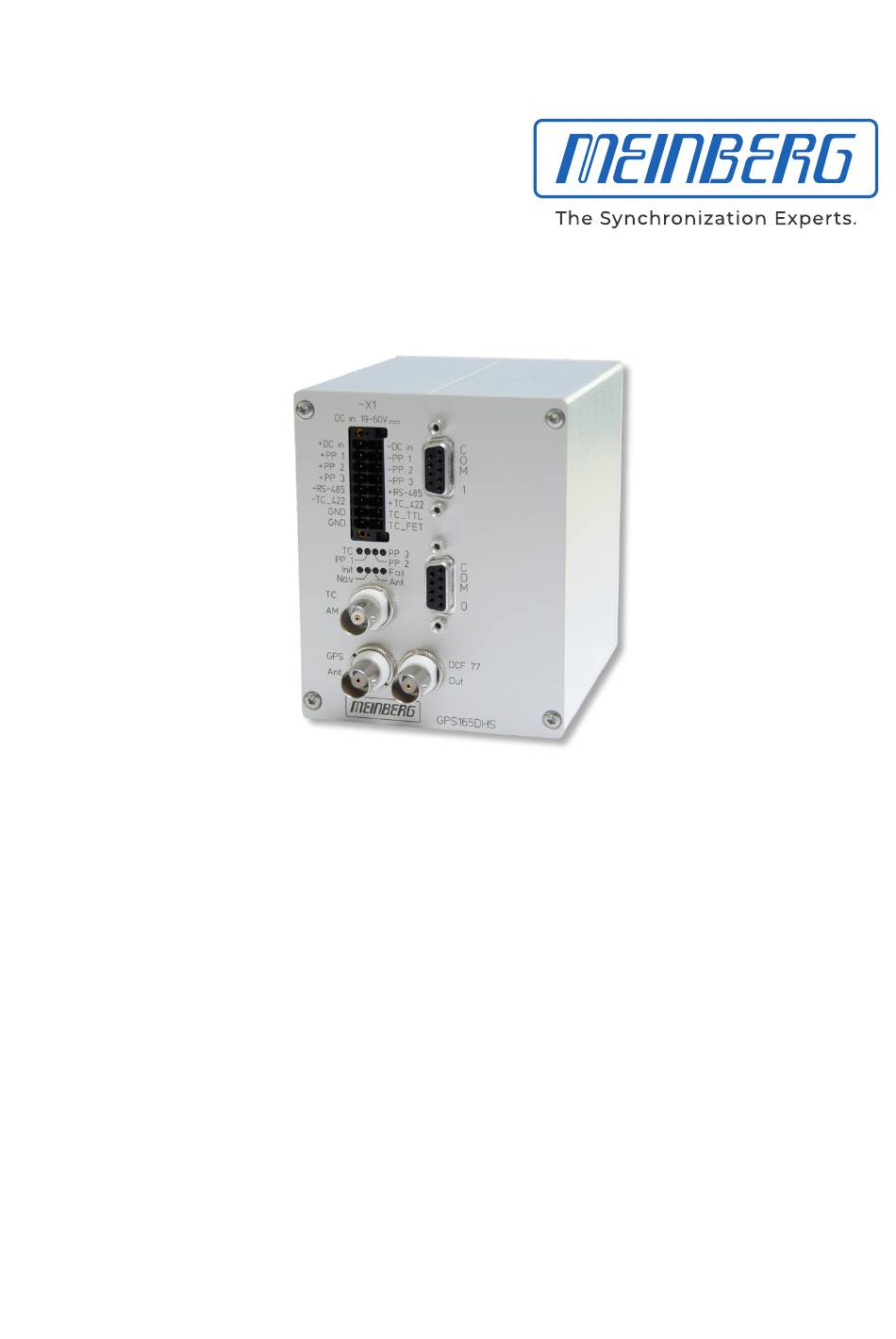

  • Page 1 MANUAL GPS165XHS DIN Rail GPS Receiver 5th November 2019 Meinberg Funkuhren GmbH & Co. KG...

  • Page 3: Table Of Contents

    ......3 Content of the USB stick 4 General information about GPS165XHS 5 GPS165 Features Time Zone and Daylight Saving .
  • Page 4 ......8.4.11 Format of the Meinberg GPS Time String ......

  • Page 5: Imprint

    1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com...

  • Page 6: Safety Hints

    Meinberg Funkuhren shall not be responsible for any damage arising due to non-observance of these regulations.

  • Page 7: Used Symbols

    Dieses Produkt fällt unter die B2B Kategorie. Zur Entsorgung muss es an den Hersteller übergeben werden. This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. GPS165XHS Date: 5th November 2019...
  • Page 8 This manual is intended exclusively for electricians or persons trained by an electrician who are familiar with the applicable national standards and safety rules. Installation, commissioning and operation of this device may only be carried out by qualified personnel. Date: 5th November 2019 GPS165XHS...

  • Page 9: Security During Installation

    For safety reasons, the device with the highest mass should be installed in the lowest position of the rack. Other devices must be placed from the bottom to the top. The device must be protected against mechanical stress such as vibration or shock. GPS165XHS Date: 5th November 2019...
  • Page 10 fluids or foreign objects enter), the current flow can be interrupted. Questions about the house installation, need to be clarified with your house administration. The power supply should be connected with a short, low-inductance line. Date: 5th November 2019 GPS165XHS...
  • Page 11 GPS165XHS Date: 5th November 2019...

  • Page 12: Fuse Replacement

    Voltage Current Voltage with or without extinguishing agent with extinguishing agent T = Time-lag / SB = SlowBlow T = Time-lag / SB = SlowBlow Dimensions: Dimensions: 5 x 20 mm 5 x 20 mm Date: 5th November 2019 GPS165XHS...

  • Page 13: Protective Conductor- / Ground-Terminal

    Devices that are connected via one or more uninterruptible power supplies (UPS) remain operational even when the UPS power cord is disconnected. Therefore, you must put the UPS out of operation according to the documentation of the corresponding user documentation. GPS165XHS Date: 5th November 2019...

  • Page 14: Safety During Maintenance

    Risk of explosion if the battery is not replaced correctly. Replace only with the same or equivalent type recommended by the manufacturer. When disposing used batteries, observe the local regulations for the disposal of hazardous waste. Date: 5th November 2019 GPS165XHS...

  • Page 15: Antenna Mounting

    Liquid can destroy the electronics of the device! Liquid penetrates into the housing of the device and can cause a short circuit of the electronics. Only clean with a soft, dry cloth. Never use solvents or cleaners. GPS165XHS Date: 5th November 2019...

  • Page 16: Prevention Of Esd Damage

    ESD protective covers, which are extremely wrinkled or even have holes, no longer protect against electrostatic discharge. ESD protective covers must not be low-resistance and metallically conductive if a lithium battery is installed on the assembly. Date: 5th November 2019 GPS165XHS...

  • Page 17: Return Of Electrical And Electronic Equipment

    Return and Collection Systems For returning your old equipment, please use the country-specific return and collection systems available to you or contact Meinberg. The withdrawal may be refused in the case of waste equipment which presents a risk to human health or safety due to contamination during use.

  • Page 18: Content Of The Usb Stick

    Besides this manual, the provided USB stick includes a setup program for the monitor software mbgdevman (Meinberg Device Manager). This utility can be used to configure Meinberg receivers via their serial ports and to display status information of the module.

  • Page 19: General Information About Gps165Xhs

    4 General information about GPS165XHS 4 General information about GPS165XHS The Meinberg satellite receiver clocks of the GPS165xHS series are available with several options. This manual describes the following models: Optocoupler PhotoMos 20-60 V DC 100-240 V AC 100-240 V DC...
  • Page 20 Each satellite transmits its own set of ephemeris parameters and almanac parameters of all existing satellites. Date: 5th November 2019 GPS165XHS...

  • Page 21: Gps165 Features

    As standard the switchover times are set to the values of the European Union (Central Europe). The Manual describes how parameter setting for other locations is done. It is possible to deactivate the auto- matic switching to/from daylight saving. GPS165XHS Date: 5th November 2019...

  • Page 22: Pulse Outputs

    ASCII "?" only. The format of the output strings is ASCII, see the technical specifications for details. The corresponding parameters can be set up by mbgdevman (included Windows software) using serial port COM0. Date: 5th November 2019 GPS165XHS...

  • Page 23: Time Code Outputs

    IEEE1344 extensions for date, timezone, daylight saving and leap second in control functions (CF) segment. (also see table ’Assignment of CF segment in IEEE1344 mode’) C37.118 Like IEEE1344 - with turned sign bit for UTC-Offset GPS165XHS Date: 5th November 2019...

  • Page 24: Time Code Generation

    If the code must be available immediately after power-up, the software mbgdevman can be used to enable the time code output without synchronization of the GPS-receiver by setting the enable flag ’pulses’ to ’always’. In this mode of operation the IRIG-code is not locked to UTC-second until synchronization. Date: 5th November 2019 GPS165XHS...

  • Page 25: Irig Standard Format

    5 GPS165 Features 5.4.4 IRIG Standard Format GPS165XHS Date: 5th November 2019...

  • Page 26: Afnor Standard Format

    5.4.5 AFNOR Standard Format Date: 5th November 2019 GPS165XHS...

  • Page 27: Assignment Of Cf Segment In Ieee1344 Code

    IRIG-B time 1.) current firmware does not support leap deletion of leap seconds 2.) TFOM is cleared, when clock is synchronized first after power up. see chapter Selection of generated timecode GPS165XHS Date: 5th November 2019...

  • Page 28: Dcf77 Emulation

    The time stamps can be provided via pulses outputs. Furthermore, the DCF77 signal is available via a BNC connector as an amplitude-modulated 77.5 kHz carrier. This output can be used for radio clocks as a replacement for a DCF77 antenna. Date: 5th November 2019 GPS165XHS...

  • Page 29: Installation

    To avoid potential differences between the signal ground of GPS165 and a post-connected unit installed on different DIN rails, the signal ground of the clock is insulated from the case. The case must be grounded by using the rear contact. GPS165XHS Date: 5th November 2019...

  • Page 30: Mounting The Gps Antenna

    - Do not carry out any work on the antenna system or the antenna cable if there is a risk of a lightning strike. - Do not carry out any work on the antenna system if the safety distance to free lines and sequential circuits is exceeded. Date: 5th November 2019 GPS165XHS...

  • Page 31: Antenna Assembly With Surge Voltage Protection

    GPS Antenna N-Norm female N-Norm male Cable Slot N-Norm male N-Norm female as short as possible N-Norm female Meinberg GPS N-Norm male N-Norm male female Ground lead to PE rail or BNC male female (Protective Earth) Cable ca. 1,5 mm Ø...

  • Page 32: Powering Up The System

    OCXO´s output frequency has been adjusted. Up to that time accuracy of frequency drops to 10 reducing the accuracy of pulses to +-3 s. Date: 5th November 2019 GPS165XHS...

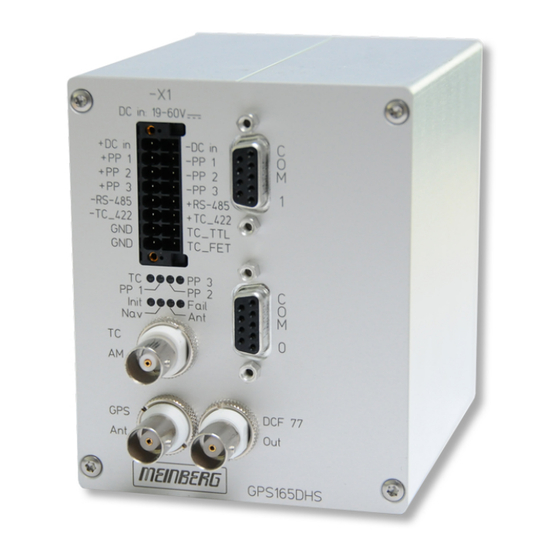

  • Page 33: The Front Panel Layout

    AM Out BNC female into 50 Ohm shielded coaxial line DCLS Out 16pin.Terminal RS422, TTL data line Antenna BNC female shielded coaxial line Power supply over 16pin. Terminal (DHS standard model) over 5pin Screwterminal (AHS, DAHS) GPS165XHS Date: 5th November 2019...

  • Page 34: Power Supply Connector

    - Never work with open terminals and plugs while the power is on. - All connectors must be protected against touching live parts with a suitable plug housing! - Note: Always ensure safe wiring! - Important: The device must be connected to a proper grounding (PE). Date: 5th November 2019 GPS165XHS...

  • Page 35: Assignment Of The Dsub Connectors

    232 interfaces can be connected to a computer by using a standard modem cable. TxD describes the sending, RxD the receiving line of the GPS165. Connector: D-SUB female 9pin Cable: shielded data line Assignment: Pin 2: TxD (transmit) COM x Pin 3: RxD (receive) Pin 5: GND (ground) GPS165XHS Date: 5th November 2019...

  • Page 36: Assignment Of The Terminal Block

    Channel 3 PP 1 PP 1b PP 2 + PP 2a Channel 2 Channel 2 PP 2 PP 2b PP 3 + PP 3a Channel 1 Channel 1 PP 3 PP 3b Pulse generator Pulse generator Date: 5th November 2019 GPS165XHS...

  • Page 37: Status Leds Dmc Connector

    7.6 Time Code AM Output Carrier frequency: 1 kHz (IRIG-B) Signal outputs: Unbalanced sine wave-signal: (MARK) (SPACE) into 50 Ohm Connector: BNC, female TC AM Out Cable: shielded coax line GPS165XHS Date: 5th November 2019...

  • Page 38: Dcf77 Simulated Output

    - Do not carry out any work on the antenna system or the antenna cable if there is a risk of a lightning strike. - Do not carry out any work on the antenna system if the safety distance to free lines and sequential circuits is exceeded. Date: 5th November 2019 GPS165XHS...

  • Page 39: Technical Specifications Gps165 Receiver

    Framing: 7N2, 7E1, 7E2, 8N1, 8N2, 8E1, 801 COM2 (RS-485) Baud Rate: 300 up to 19200 Framing: 7N2, 7E1, 7E2, 8N1, 8N2, 8E1, 801 time string selectable for COM0, COM1 and COM2 possible stringtypes in chapter: Time Stings GPS165XHS Date: 5th November 2019...
  • Page 40 COM0: 19200, 8N1 COM1, COM2: 9600, 8N1 ’standard Meinberg’ time string per second mode of operation ’if sync’ Time Code Outputs: modulated via BNC-connector: (MARK), 1 V (SPACE) into 50 unmodulated via 16-pin terminal: Field effect transistor with internal pull-up (1 k ) to +5 V...

  • Page 41: Technical Specifications Gps Antenna

    10 MHz first IF frequency: 35.4 MHz Power Requirements: 15 V, @ 100mA (provided via antenna cable) Connector: N-Type, female Ambient Temperature: -40 ... +65 C Housing: ABS plastic case for outdoor installation (IP66) Physical Dimension: GPS165XHS Date: 5th November 2019...

  • Page 42: Connection Data Dfmc-Connector

    ; length: 8 mm ... 10 mm Cross-section: 0.34 mm ; length: 8 mm ... 10 mm Cross-section: 0.5 mm ; length: 8 mm ... 10 mm Cross-section: 0,75 mrn ; length: 8 mm ... 10 mm Date: 5th November 2019 GPS165XHS...

  • Page 43: Oscillator Specifications

    8 Technical Specifications GPS165 receiver 8.3 Oscillator specifications GPS165XHS Date: 5th November 2019...

  • Page 44: Time Strings

    8.4 Time Strings 8.4.1 Format of the Meinberg Standard Time String The Meinberg Standard Time String is a sequence of 32 ASCII characters starting with the STX (start-of-text) character and ending with the ETX (end-of-text) character. The format is: <STX>D:dd.mm.yy;T:w;U:hh.mm.ss;uvxy<ETX>...

  • Page 45: Format Of The Sat Time String

    ‘!’ announcement of start or end of daylight saving time ‘ ‘ (space, 20h) nothing announced <CR> Carriage Return, ASCII Code 0Dh <LF> Line Feed, ASCII Code 0Ah <ETX> End-Of-Text, ASCII Code 03h GPS165XHS Date: 5th November 2019...

  • Page 46: Format Of The Nmea 0183 String (Rmc)

    (01..31) month (01..12) year of the century (00..99) magnetic variation checksum (EXOR over all characters except ‘$’ and ‘*’) <CR> Carriage Return, ASCII Code 0Dh <LF> Line Feed, ASCII Code 0Ah Date: 5th November 2019 GPS165XHS...

  • Page 47: Format Of The Nmea 0183 String (Gga)

    Units, meters (fixed value) ggg.g Geoid Separation (altitude of WGS84 - MSL) Units, meters (fixed value) checksum (EXOR over all characters except ‘$’ and ‘*’) <CR> Carriage Return, ASCII Code 0Dh <LF> Line Feed, ASCII Code 0Ah GPS165XHS Date: 5th November 2019...

  • Page 48: Format Of The Nmea 0183 String (Zda)

    (00..59) dd,mm,yy the current date: day of month (01..31) month (01..12) yyyy year (0000..9999) checksum (EXOR over all characters except ‘$’ and ‘*’) <CR> Carriage Return, ASCII Code 0Dh <LF> Line Feed, ASCII Code 0Ah Date: 5th November 2019 GPS165XHS...

  • Page 49: Format Of The Uni Erlangen String (Ntp)

    ‘ ‘ (space, 20h) no leap second is inserted bbb.bbbb latitude of receiver position in degrees leading signs are replaced by a space character (20h) latitude, the following characters are possible: ‘N’ north of equator GPS165XHS Date: 5th November 2019...
  • Page 50 ‘E’ east of Greenwich ‘W’ west of Greenwich hhhh altitude above WGS84 ellipsoid in meters leading signs are replaced by a space character (20h) <ETX> End-Of-Text, ASCII Code 03h Date: 5th November 2019 GPS165XHS...

  • Page 51: Format Of The Computime Time String

    (01..07, 01 = monday) hh:mm:ss the current time: hours (00..23) minutes (00..59) seconds (00..59, or 60 while leap second) <CR> Carriage Return, ASCII Code 0Dh <LF> Line Feed, ASCII Code 0Ah GPS165XHS Date: 5th November 2019...

  • Page 52: Format Of The Sysplex-1 Time String

    (00..23) minutes (00..59) seconds (00..59, or 60 while leap second) Quality indicator (space) Time Sync (GPS lock) (?) no Time Sync (GPS fail) <CR> Carriage-return (ASCII code 0Dh) <LF> Line-Feed (ASCII code 0Ah) Date: 5th November 2019 GPS165XHS...

  • Page 53: Format Of The Spa Time String

    (00..59) seconds (00..59, or 60 while leap second) fff milliseconds (000..999) Checksum. EXCLUSIVE-OR result of the previous characters, displayed as a HEX byte (2 ASCII characters 0..9 or A..F) <CR> Carriage Return ASCII Code 0Dh GPS165XHS Date: 5th November 2019...

  • Page 54: Format Of The Racal Standard Time String

    (01..31) hh:mm:ss the current time: hours (00..23) minutes (00..59) seconds (00..59, or 60 while leap second) <CR> Carriage Return, ASCII code 0Dh Interface parameters: 7 Databits, 1 Stopbit, odd. Parity, 9600 Bd Date: 5th November 2019 GPS165XHS...

  • Page 55: Format Of The Meinberg Gps Time String

    8.4.11 Format of the Meinberg GPS Time String The Meinberg Standard Time String is a sequence of 36 ASCII characters starting with the STX (start-of-text) character and ending with the ETX (end-of-text) character. Contrary to the Meinberg Standard Telegram the Meinberg GPS Timestring carries no local timezone or UTC but the direct GPS time without conversion into UTC.

  • Page 56: Format Of The Ion Time String

    (00..23) minutes (00..59) seconds (00..59, or 60 while leap second) Quality indicator (space) Time Sync (GPS lock) (?) no Time Sync (GPS fail) <CR> Carriage-return (ASCII code 0Dh) <LF> Line-Feed (ASCII code 0Ah) Date: 5th November 2019 GPS165XHS...

  • Page 57: Format Of The Ion Blanked Time String

    (00..23) minutes (00..59) seconds (00..59, or 60 while leap second) Quality indicator (space) Time Sync (GPS lock) (?) no Time Sync (GPS fail) <CR> Carriage-return (ASCII code 0Dh) <LF> Line-Feed (ASCII code 0Ah) GPS165XHS Date: 5th November 2019...

  • Page 58: Format Of The Irig J Time String

    ASCII code „Start of Heading“ (0x01h) ordinal date, day of year (1 to 366) HH, MM, SS time of the start bit given in hour (HH), minute (MM), second (SS) ASCII code „Carriage Return“ (0x0Dh) ASCII code „Line Feed“ (0x0Ah) Date: 5th November 2019 GPS165XHS...

  • Page 59: Meinberg Device Manager

    9 Meinberg Device Manager 9 Meinberg Device Manager The program serves the configuration of Meinberg Radio Clocks. The software can be run on the operating systems Windows 7 or higher. Documentation: https://www.meinbergglobal.com/download/docs/sw/english/mbgdevman.pdf Download: https://www.meinbergglobal.com/english/sw/mbg-devman.htm A connection between the system and the program can be produced by serial port. The configurations are described in the mbgdevman-documentation.
  • Page 60 "Apply Configuration" button. Use the "Restore Configuration" button to reset all settings back to their default values. For more information, please refer to the Meinberg Device Manager manual. Date: 5th November 2019...
