McIntosh MA5200 Connection Diagram

Hide thumbs Also See for MA5200:

Owner's manual (32 pages)

,

Owner's manual (50 pages)

Advertisement

Table of Contents

See also: Owner's Manual

2

A

Note: Refer to the MA5200 Owner's Manual page 9 for additional connection

information.

Connection Legend:

Data Cable*-

Digital Signal Cable -

Sensor/Keypad Cable -

RS232 Cable -

Power Control Cable* -

Ground Wire -

Audio Signal Cable -

AC Power Cords -

Video Signal Cable -

Loudspeaker Cable -

RF Signal Cable -

*

2 conductor shielded with 1/8 inch stereo mini phone plug on each end.

SACD/CD Player

AM/FM Tuner

30

McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549

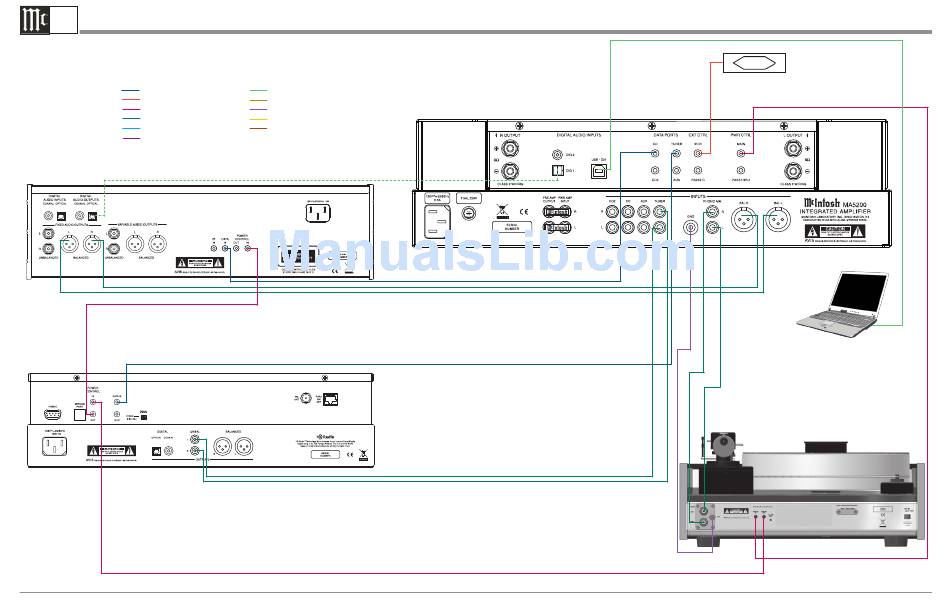

MA5200 Input and Control Connection Diagram

(optional Digital Audio Connection)

3

Part No. 04137700

IR Sensor

Computer

Turntable
