2013
M{zd{5
Smart Start Guide
zoo}-zoo}
zoo}-zoo}

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mazda 5

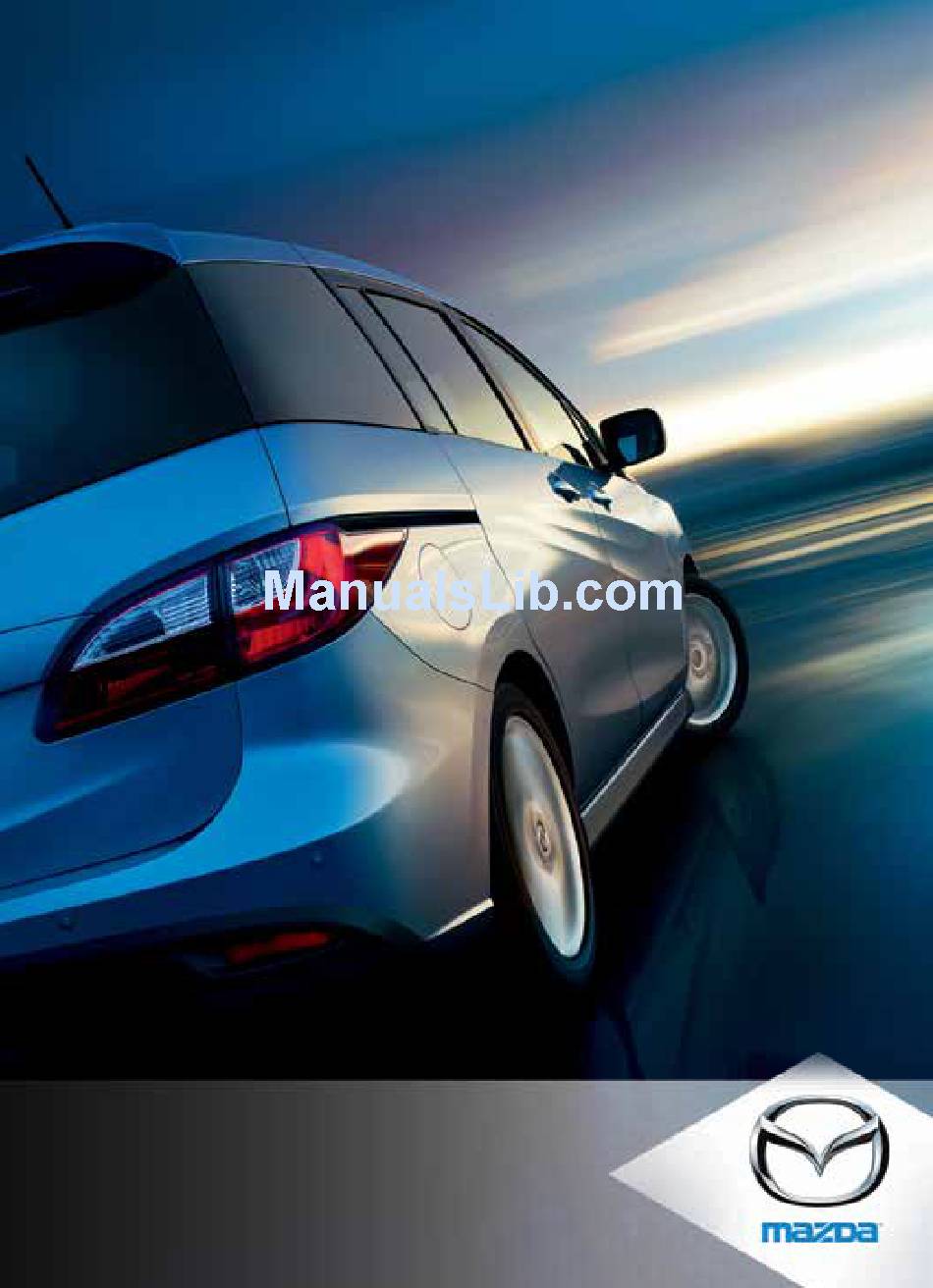

  • Page 1 2013 M{zd{5 Smart Start Guide zoo}-zoo} zoo}-zoo}...
  • Page 2: Keyless Entry System

    When the liftgate opener switch is pushed, the liftgate will open slightly. If the liftgate is not opened within 1.5 seconds, the liftgate latch locks (you will hear it lock) and the liftgate cannot be opened or closed from this slightly raised position.
  • Page 3: Information Display

    Information Display iNfO Push INFO button on steering wheel to display the following (actual displayed information will vary on your vehicle): iNfO Button Current fuel economy Average vehicle speed Distance-to-empty Average fuel economy PARKiNg SENSOR SYSTEM The parking sensor system uses ultrasonic sensors to detect obstructions behind the vehicle with transmission in Reverse and speed below 6 mph (10 km/h).
  • Page 4: Seat Controls

    PERSONALiZE YOUR MAZDA5 WiTH gENUiNE MAZDA ACCESSORiES: Go to www.MyMazda.com, then select “Accessories” below the MyMazda Home header for a complete listing of available accessories for your Mazda5.
  • Page 5 www.MazdaUSA.com Split-folding Third-Row Seatback • T o create a flat luggage compartment space, lower the head restraints all the way down, pull the release strap, then fold the seatbacks forward. • T o return the seatbacks to the original position, pull the release strap. Release Strap Second Row Seat Storage/flip Out Center Console • P ull up on the strap on either seat to lift the seat bottom and you’ll find convenient space to store small items and a console in the right side seat that flips out.
  • Page 6: Driver's View

    Driver’s View HEADLigHT LigHTiNg/ BLUETOOTH CRUiSE ® LEvELiNg TURN SigNALS & AUDiO CONTROL (P. 9) (P. 9) DSC/TCS HOOD PARKiNg TiLT/TELESCOPiNg SWiTCH RELEASE SENSOR STEERiNg WHEEL SYSTEM LEvER (P. 2)
  • Page 7: Seat Warmer

    www.MazdaUSA.com PASSENgER iNfORMATiON AUDiO HAZARD AiRBAg Off DiSPLAY CLOCK SYSTEM WARNiNg iNDiCATOR (PP. 2, 13, 15-16) (P. 15) (PP. 15-16) WiPER/ CLiMATE SPORT A/T SEAT WARMER (P. 11) WASHER CONTROL (LOCATED ON CENTER CONSOLE) (P. 10) (PP. 13-14) This indicator light illuminates to remind you that the front passenger’s front/side airbags and seat belt pretensioner will not deploy during a collision.
  • Page 8: Instrument Cluster

    Instrument Cluster TACHOMETER fUEL gAUgE iNSTRUMENT CLUSTER DiMMER gLOSSARY Of WARNiNg AND iNDiCATOR LigHTS NOTE: See Owner’s Manual for more details and explanations Check fuel Cap ENgiNE COOLANT TEMP LigHTS Since this vehicle does not use an engine Check Engine Light coolant temperature gauge, red and blue engine coolant temperature lights are used to indicate high and low coolant temperature.
  • Page 9: Shift Lever Position Indicator

    www.MazdaUSA.com SHifT LEvER SPEEDOMETER TRiP METER POSiTiON iNDiCATOR SELECTOR Turn Signals/Hazard Headlight High Beams On Warning indicator Lights Airbag/front Seat Belt Pretensioner System Traction Control System Malfunction (TCS)/Dynamic Stability Control (DSC) Low Engine Oil Pressure On: TCS/DSC malfunction flashing: TCS/DSC operating Charging System Malfunction Seat Belt...
  • Page 10 Lights LigHTiNg CONTROL/TURN SigNAL LEvER AUTO : The light sensor : Turns tail, : Turns fog lights automatically determines parking, and on only when when to turn the headlights dashboard headlights on or off. lights on. are on. Push for High Beams Pull to flash...
  • Page 11 Wipers www.MazdaUSA.com WiNDSHiELD/REAR WiNDOW WiPER/WASHER CONTROL LEvER AUTO : The rain sensor senses the amount of rainfall and turns the wipers on or off. Rotate inner ring away from you (clockwise) for less sensitivity (requires more rain to turn wipers on) and toward you (counterclockwise) for more sensitivity (requires less rain to turn wipers on).
  • Page 12: Speed Manual Transmission

    Transmission SPORT A/T MANUAL SHifT MODE The Sport A/T Manual Shift Mode gives you the feel of driving a manual transmission by allowing you to manually shift to control engine rpm and torque when more control is desired. With Brake To Use Manual Shift Mode: Pushed • Shift the lever from D to M.
  • Page 13: Feature Highlights

    Accessory 3.5 mm audio cable which can be used to connect your portable audio player into the aux jack. 1 Locate the AUX jack inside the center console. Plug 3.5 mm audio cable into the portable audio player and into the AUX jack. Turn portable audio player on. Turn the vehicle audio system on.
  • Page 14 Manual Climate Control Automatic Climate Control Outside Temperature interior Set Temperature Climate Control Temperature Mode Selector fan Control Dial Control Dial • R otate the dial to select the desired AUTO ON: Push dial fan speed. Push to select the to turn Automatic Air following airflow mode: Conditioning system...
  • Page 15 www.MazdaUSA.com NOTE: Automatic climate control will allow you to maintain a preset cabin temperature. The heater and defroster work best when the blue coolant temperature light in the instrument cluster is off. NOTE: • Rotating the fan control dial, or pushing the MODE button, A/C switch, or windshield defroster switch while in AUTO ON mode will cancel auto A/C.
  • Page 16: Media Selection

    Call 888-539-7474 to activate. beep is heard. See the Owner’s Manual and/or dealer Category (Sirius only): Push ® for details. Contact your Mazda dealer the FOLDER to change to a about adding SiriusXM Satellite Radio ® different category. if your vehicle is not already equipped Auto Memory Tuning: Push and with it.
  • Page 17: Bluetooth Audio

    www.MazdaUSA.com Audio MUTE (without Bluetooth ® NOTE: Push the MODE button to change between FM1, FM2, AM, CD, SIRIUS 1, 2, 3, and AUX. BLUETOOTH AUDiO LOADiNg A CD ® Single CD Player Bluetooth enabled phones ® • I nsert CD, label-side up. and audio players provide in-Dash CD Changer an opportunity to play music • P ush the LOAD button; when “IN”...
  • Page 18: Pairing Bluetooth Phone/Audio Device

    Bluetooth ® (Refer to your Owner’s Manual for more information) PAiRiNg YOUR BLUETOOTH PHONE OR AUDiO DEviCE ® NOTE: • For safety reasons, you cannot pair a phone while driving. • B efore pairing your cell phone or audio device, you must manually turn on the Bluetooth function on the device. Refer to your device’s Bluetooth for steps to turn ®...
  • Page 19 • M azda Assist app - Provides roadside assistance 24 hours a day, 365 days a year. Toll free number 1-800-866-1998 can also be used for roadside assistance. • M yMazda app - Keep track of your Mazda from the palm of your hand with these features: Maintenance schedule...
  • Page 20 800-430-0153 and location Lights ..........SCHEDULED MAiNTENANCE When replacing or topping off engine oil, use Mazda Genuine oil. For optimal engine performance, use SAE 0W-20 engine oil. Please consult an Authorized Wiper/Washer ....... Mazda Dealer for additional information. *if equipped...
  • Page 21: Service Department

    Customer Delivery Checklist DEALERSHiP DATE SALES CONSULTANT CUSTOMER’S NAME E-MAiL PRESENTATiON Of OWNER’S MATERiALS: Review the following items with the customer Smart Start guide Owner’s Manual • R emove this checklist from Maintenance Passport Smart Start Guide • P ersonalization Features floor Mats (refer to your Owner’s Manual) • E nsure floor mats are properly Warranty information hooked after cleaning...
  • Page 22 We’re committed to providing expert Mazda service. You love to drive your Mazda, and we love to service your Mazda. With our Full Circle Service, we’ll give your vehicle a COMPLIMENTARY MULTI-POINT INSPECTION. Your Mazda will receive a thorough review of its most crucial components.
