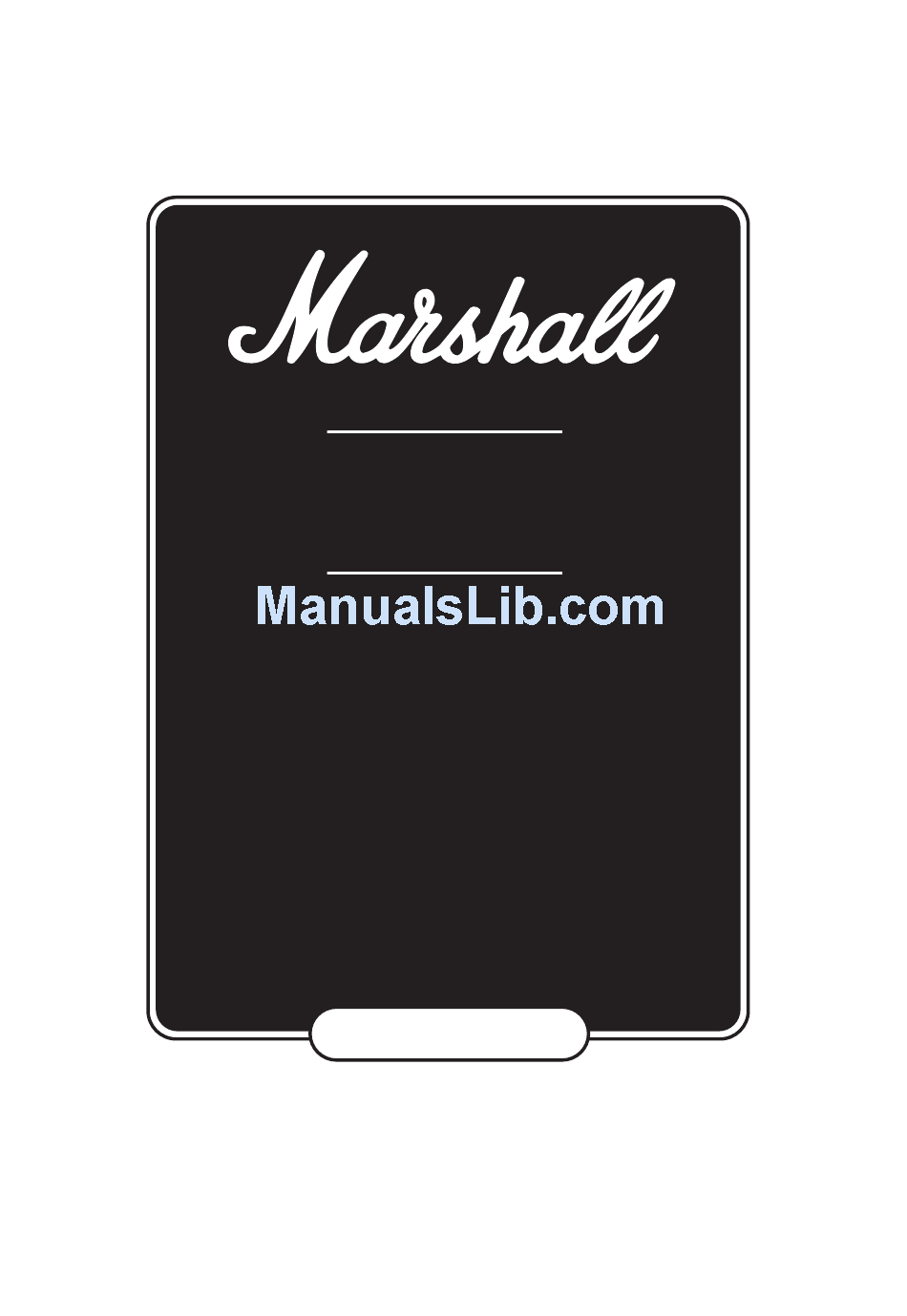

  • Page 1 TSL100 TSL122 & RIPLE UPER Valve Amplifiers Marshall Amplification plc Denbigh Road, Bletchley, Milton Keynes, MK1 1DQ, England Tel: (01908) 375411 Fax: (01908) 376118 Web Site - http://www.marshallamps.com Whilst the information contained herein is correct at the time of publication, due to our policy of constant improvement and development, Marshall Amplification plc reserve the right to alter specifications without prior notice.
  • Page 2 WARNING! - Important safety instructions A. ALWAYS fit a good quality mains plug conforming to the latest B.S.I. standards where necessary (UK only). B. NEVER attempt to by-pass the fuses or fit ones of the incorrect value. C. NEVER attempt to replace fuses or valves with the amplifier connected to the mains. D.
  • Page 3: Crunch Channel

    CLEAN CHANNEL (Please refer to diagram A, Page 6) 1. Mode Select 5. Treble, Middle, Bass Controls To access the Clean channel (if the foot controller is NOT connected) - These are the time honoured passive type of network that help make a release the Clean - OD1/OD2 pushswitch.
  • Page 4: Tsl100 & Tsl122 Rear Panel

    LEAD CHANNEL (please refer to diagram C, Page 8) 1. Mode Select Output Mute To access the Lead channel - both front panel ‘mode select’ By the nature of the ‘V.P.R.’ circuit, we can now turn off the signal to pushswitches must be pushed in (with or without the foot controller the output valves.
  • Page 5: Line Out Xlr Connections Diagram

    Diagram E - Line Out XLR Connections XLR Channel Input On Mixer (Note: Line Level-Approx OdBV) 2 Core Screened Balanced Mic Lead Unbalanced XLR to Jack Screened Lead Jack Plug Line Level Jack Input On Mixer Etc. Unbalanced XLR to Jack Screened Lead Jack Plug Low Level Jack Input On Mixer (ie Mic Input) SPECIFICATION...
  • Page 6 Diagram A - Clean Channel Front Panel - TSL122 Combo - Clean Channel OD1 - CRUNCH JCM 2000 GAIN VOLUME TREBLE MIDDLE BASS REVERB FX MIX PRESENCE OD2 - LEAD R IP LE UP ER E AD TONE CLEAN SHIFT OD1 / OD2 CRUNCH CLEAN...
  • Page 7 Diagram B - Crunch Channel Front Panel - TSL122 Combo - Crunch Channel OD1 - CRUNCH JCM 2000 GAIN VOLUME TREBLE MIDDLE BASS REVERB FX MIX PRESENCE OD2 - LEAD RI PLE U PE R E A D TONE CLEAN SHIFT OD1 / OD2 CRUNCH...
  • Page 8 Diagram C - Lead Channel Front Panel - TSL122 Combo - Lead Channel OD1 - CRUNCH JCM 2000 GAIN VOLUME TREBLE MIDDLE BASS REVERB FX MIX PRESENCE OD2 - LEAD R IP LE UP ER E AD TONE CLEAN SHIFT OD1 / OD2 CRUNCH CLEAN...
  • Page 9 RISQUES D’INCENDIE ET DE DECHARGES ELECTRIQUES, N’EXPOSEZ JAMAIS CET 3 - Use EFFECTS LOOPS A and B for separate effects on CLEAN & OD channels Marshall Amplification plc, Bletchley, Milton Keynes, England. APPAREIL A L’HUMIDITE OU A LA PLUIE. CONNECTER CET APPAREIL A LA TERRE.
