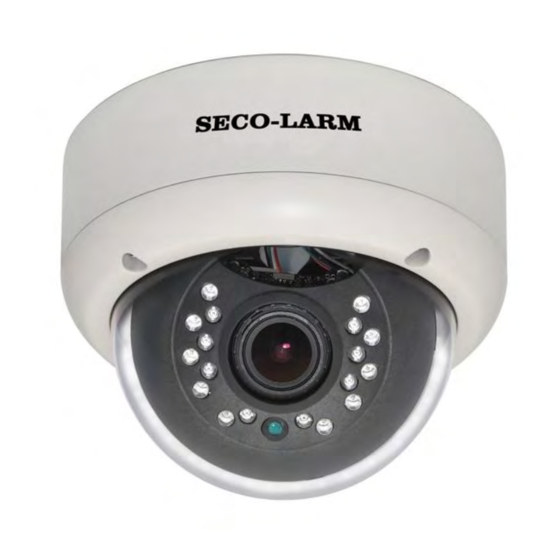

Large IR Vandal Dome Cameras
Model No.
NTSC
EV-2186-NKEQ
EV-2786-NKEQ
PAL
EV-2186-PKEQ
EV-2786-PKEQ
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.
Manual
Resolution
420 TV Lines
600 TV Lines
420 TV Lines
600 TV Lines
Lens
# of IR LEDs
2.8~11mm
2.8~11mm
2.8~11mm
2.8~11mm
18
18
18
18
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SECO-LARM EV-2186-NKEQ
Summary of Contents for SECO-LARM EV-2186-NKEQ
- Page 1 Large IR Vandal Dome Cameras Manual Model No. Resolution Lens # of IR LEDs NTSC EV-2186-NKEQ 420 TV Lines 2.8~11mm 600 TV Lines EV-2786-NKEQ 2.8~11mm EV-2186-PKEQ 420 TV Lines 2.8~11mm 600 TV Lines EV-2786-PKEQ 2.8~11mm Note: Products with model numbers that end with “Q” or that have a round green “Q” sticker are RoHS compliant.
-
Page 2: Specifications
SECO-LARM Large IR Vandal Dome Cameras Specifications: NTSC EV-2186-NKEQ EV-2786-NKEQ EV-2186-PKEQ EV-2786-PKEQ Type Vandal Dome Camera ” Sony Super HAD II CCD 600 TVL Resolution 420 TVL Lens 2.8~11mm DC Auto Iris # of IR LEDs 18 (850nm) IR range... - Page 3 SECO-LARM Large Vandal Dome Cameras Overview: Mounting screws Female BNC Conduit cap Set screws connector Zoom Focus DC plug with DC jack terminal block Important: Adjusting the Do not cut the DC jack or the female BNC Camera Angle connector as this will void the warranty. Move the camera along its 3 axes to adjust the pan, tilt, or rotation.
-
Page 4: Troubleshooting
SECO-LARM Large IR Vandal Dome Cameras Troubleshooting: Check that the camera is powered up. Check that the power supply’s polarity is correct. Check that the monitor is powered up. The screen is blank. Check that the video cable connecting the camera to the monitor is connected properly.
