Summary of Contents for JVC KW-AVX716

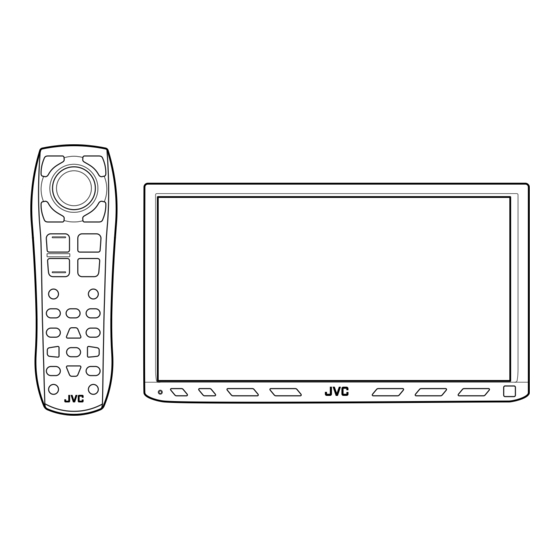

Page 1 DVD RECEIVER WITH MONITOR RECEPTOR DVD CON MONITOR RÉCEPTEUR DVD ET MONITEUR KW-AVX716 KW-AVX710 For canceling the display demonstration, see page 8. Para cancelar la demonstración en pantalla, consulte la página 8. Pour annuler la démonstration des affichages, référez-vous à la page 8.
Page 2 Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. IMPORTANT FOR LASER PRODUCTS CLASS 1 LASER PRODUCT CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.
Page 3: Table Of Contents
How to reset your unit Contents INTRODUCTION Playable disc types ......4 • Your preset adjustments will also be erased. Basic operations— Monitor panel/touch panel .... 5 How to forcibly eject a disc Basic operations— ENTER Remote controller (RM-RK252) ..6 NO EJECT? OPERATIONS EMERGENCY EJECT?
Page 4: Playable Disc Types
Playable disc types Disc type Recording format, file type, etc. Playable DVD Video (Region Code: 2)* DVD Audio DVD-ROM DVD Recordable/Rewritable DVD Video (DVD-R/-R,W +*R/+RW)* DVD-VR • DVD Video: UDF bridge DivX/MPEG1/MPEG2 • DVD-VR JPEG • DivX/MPEG1/MPEG2/JPEG/MP3/ MP3/WMA/WAV WMA/WAV: ISO 9660 level 1, level 2, Romeo, Joliet MPEG4 DVD+VR...
Page 5: Basic Operations
Basic operation Mson — itor panel/touch panel Display <AV Menu> screen. ¢Ñ page 50 Display <Source Menu> screen. ¢Ñ page 9 Display and erase the Short Cut windows. Available functions vary among the sources. For details, see each source operation section.
Page 6: Basic Operations
Basic operation Resm —ote controller (RM-RK252) Installing the battery Main elements and features R03/LR03/AAA Insert the batteries into the remote controller by matching the polarity (+ and –) correctly. Caution: Battery shall not be exposed to excessive heat such as sunshine, fire or the like. •...
Page 7 Functions with other buttons (see i and o). • Forward search • Forward slow motion (during pause) Changes the display information. Selects the source. For disc operations: • 5 / • ‡ : For disc operations: DVD: Selects the title. Starts playback/pauses.
Page 8: Before Operating The Unit
Before operating the unit Set the clock settings. the clock. Moves to the preceding menu page • Non-available items will be shaded on the AV Menu screens. Indication language: In this manual, English indications are used for purpose of explanation. You can select the indication language.
Page 9: Common Operations
Common operations Selecting the playback source Changing the display • Available sources depend on the external information components you have connected, media you have • Available display information varies among the attached, and the <Input> settings you have made playback sources. (¢Ñ...
Page 10: Listening To The Radio
Listening to the radio PS (station name) for FM RDS. If no PS signal is coming in, the Preset no. tuned frequency appears. Band PTY code for FM RDS Sound mode (¢Ñ page 48) ¢Ñ page 12 Tuner/Standby Reception indicators : Buttons on the touch panel.
Page 11 Tuning in to stations with Ex.: Storing FM station of 92.5 MHz into preset number sufficient signal strength 4 of the FM1 band. This function works only for FM bands. Once you have Display the Preset List. activated this function (selected <Local>), it always works when searching for FM stations.
Page 12 Selecting a preset station The following features are available only for FM RDS stations. On the remote: Searching for FM RDS programme—PTY Search To select directly on the touch panel You can search for your favorite programmes being broadcast by selecting the PTY code for your favorite programmes.
Page 13 Storing your favorite programme types Select a PTY code. • In the example below, a PTY code is selected You can store your favorite PTY codes into the PTY from the Preset List. Preset List. If you enter <PTy Code> menu below, you can Ex.: Storing <Drama>...
Page 14 To activate PTY Standby Reception Standby Reception Press [AV MENU]. Press [Mode]. TA Standby Reception Indicator Press on the monitor panel to activate. The unit will temporarily switch to Lights up Traffic Announcement (TA) if available, from any source other than AM. •...
Page 15 Tracing the same programme— Reception Network-Tracking Reception Press [AV MENU]. When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to Press [Mode]. another FM RDS station of the same network, possibly broadcasting the same programme with stronger signals.
Page 16: Disc Operations
Disc operations The disc type is automatically detected, and playback starts automatically (for some discs: automatic start depends on its internal program). If a disc does not have any disc menu, all tracks on it will be played repeatedly until you change the source or eject the disc.
Page 17 While playing the following discs, press • Each time you press the button, the display changes to show the different information. ( ¢Ñ page 9) DVD Video: Title no./Chapter no./Playing time DVD-VR: Program no. (or Playlist no.)/Chapter no./Playing time Sampling frequency/Bit Disc type * rate/Recorded signal Audio format...
Page 18 While playing the following discs, press • Each time you press the button, the display changes to show the different information ( ¢Ñ page 9). For DivX/MPEG1/MPEG2: Folder no./Track no./Playing time For JPEG: Folder no./File no. Disc type Sound mode Total track no.
Page 19 Track no./Playing time Only for CD Text * Total track no. Sound mode included on the disc (¢Ñ page 48) Total playing time ¢Ñ page 22 Start and pause playback Stop playback ¢ ] Press: Select track Hold: Reverse/forward search* Folder no./Track no./Playing time Audio format (MP3/WMA/WAV)
Page 20 Operation buttons on the screen You can display the following operation buttons while watching the playback pictures on the screen. • While the operation buttons are displayed, aspect ratio is fixed to < Full>. (¢Ñ page 52) • If no operation is done for about five seconds, the operation buttons disappear (except when a disc menu is displayed).
Page 21 Selecting playback modes You can use the following playback modes—Repeat or Random. Ex.: To select Track Repeat corresponding indicator lights up on the source information screen. To cancel, select <Off>. Disc type Repeat Random Chapter: Repeats current chapter — Title: Repeats current title Chapter: Repeats current chapter Program: Repeats current program (not...
Page 22 Selecting tracks on the list Prohibiting disc ejection If a disc includes folders, you can display the Folder/ You can lock a disc in the loading slot. Track (File) Lists, then start playback. at the same time Select a folder (1), then a track (2). To cancel the prohibition, repeat the same procedure to select <EJECT OK?>.
Page 23 Operations using the remote controller—RM-RK252 Stop playback. Start playback/pause (if pressed during playback). Reverse/forward s e (N aroc h so *und can be heard.) Slow motion during p(a Nuos s eo *und can be heard.) Press: Select chapter (during playback or pause). Hold: Reverse/forward ( s Neoa s rcohu*nd can be heard.) Select title (during playback or pause).
Page 24 Stop playback. Start playback/pause (if pressed during playback). Reverse/forward s e (N aroc h so *und can be heard.) Forward slow motion durin (gN p oa suosu en *d can be heard.) • Reverse slow motion does not work. Press: Select chapter (during playback or pause). Hold: Reverse/forward search* Select program.
Page 25 Stop playback. Start playback/pause (if pressed during playback). Reverse/forward s e (N aroc h so *und can be heard.) Press: Select track Hold: Reverse/forward ( s Neoa s rcohu*nd can be heard.) Select folder. Select aspect ratio. Select track (within the same folder). Select folder.
Page 26 Stop playback. Start playback/pause. (Slide show: each file is shown for a few seconds.) Shows the current file until you change it if pressed during Slide show. Select file. Select folder. Select aspect ratio. Select file (within the same folder). twice Select folder.
Page 27 Stop playback. Start playback/pause (if pressed during playback). Reverse/forward search* Press: Select track. Hold: Reverse/forward search* Select track. Stop playback. Start playback/pause (if pressed during playback). Reverse/forward search* Press: Select track. Hold: Reverse/forward search* Select folder. Select track (within the same folder). Select folder.
Page 28 Using the list screens You can use Original Program or Playlist screen anytime while playing DVD-VR with its data These operations are possible on the screen using recorded. the remote controller, while playing the following discs—DVD/VCD/DivX/MPEG1/MPEG2/JPEG. Display the Original Program/Playlist screen. Display the on-screen bar.
Page 29 On-screen bar Information Operation Above example is of DVD Video. Items shown on the bar vary due to the disc type. 1 Disc type 5 Time indication 2 • DVD: Audio signal format Elapsed playing time of the disc • VCD: PBC Remaining title time (for DVD) 3 Playback mode * Remaining disc time (for others)
Page 30: Cellular Phone/Audio Player
Bluetooth® operatiC oe nls lu l— ar p hone/audio player For Bluetooth operations, it is required to connect the To register using <Open> Bluetooth Adapter (KS-BTA200) to the CD changer jack Preparation: on the rear. Operate the Bluetooth device to turn on its Bluetooth •...
Page 31: External Devices
To connect a special device <Special • [ BS]: Erases the character before the cursor. Device> • [ Del]: Erases the character on the cursor. Press [AV MENU]. • [ Enter]: Confirms the entry. Press [Bluetooth]. Operate the Bluetooth device to connect while “Open...”...
Page 32 Using the Bluetooth cellular phone Sound mode Status of the device (¢Ñ page 48) Signal strength/Battery The Bluetooth icon remainder ¢Ñ lights up when (only when the information the adapter is comes from the device) connected. page 34 Adjust the volume of the incoming calls.* : Buttons on the touch panel.
Page 33 When an SMS comes in... If the cellular phone is compatible with SMS (Short Message Service), you can read the messages on the screen. • You cannot edit or send a message through the unit. When <Message Info> is set to <Auto>... The unit rings and the following screen is displayed to Select a calling method, then call.
Page 34 To stop ringing (canceling the outgoing call) To redial previously dialed numbers Hold any button on the monitor panel (except /ATT or +/–). Entering a phone number • You cannot use the remote controller to enter phone numbers. You can enter [0] – [9], [*], [#] (up to 32 numbers) •...
Page 35 To call a preset number Presetting the phone numbers You can preset up to six phone numbers. Select the phone number you want to preset from <Phonebook>, <Redial>, <Received Calls>, or <Missed Calls>. Press [ AV MENU]. Press [ Bluetooth]. Press [ Dial Menu], then...
Page 36 Press it repeatedly. Ÿ Start playback. Reverse/forward skip Adjust the volume. Bluetooth Information: If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www. jvc-victor.co.jp/english/car/> EN_KW-AVX710[EU].indb 36 EN_KW-AVX710[EU].indb 36 07.12.17 5:46:26 PM 07.12.17 5:46:26 PM...
Page 37: Listening To The Cd Changer
Press: Select folders (only for MP3) explanation, they are indicated inside [ Hold: Display Disc list It is recommended to use a JVC MP3-compatible CD changer with your unit. • You can play only CDs (CD-DA) and MP3 discs. Preparation: Select a disc to start playing.
Page 38 Selecting playback modes You can use following playback modes—Repeat or Random. Ex.: To select Track Repeat for an MP3 disc Press [AV MENU]. Press [Mode]. When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.
Page 39: Listening To The Dab Tuner
Listening to the DAB tuner If no signal is received, “No DAB Signal” appears. Preset no. Band Sound mode (¢Ñ page 48) DAB indicators */Standby Reception indicators ¢Ñ page 42 : Buttons on the touch panel. In the explanation, they are indicated While tuning in a service with DLS (Dynamic Label inside [ Segment), the TEXT indicator lights up.
Page 40 When surrounding sounds are noisy Display the Preset List. Some services provide Dynamic Range Control (DRC) signals together with their regular programme signals. DRC will reinforce the low level sounds to improve your listening. • The DRC indicator will light up while tuning in to a service with the DRC signals.
Page 41 Selecting preset services Activating/deactivating On the remote: Announcement Standby Reception Announcement Standby Reception allows the unit to switch temporarily to your favorite service (announcement type). Announcement Standby Reception Indicator [Hold] To activate, display <AV Menu > screen, then select <Mode>, press On the unit: [On] for <Announce Standby>.
Page 42 Tracing the same programme— You can easily activate and deactivate Announcement Standby Reception by pressing Alternative Frequency Reception [SHORT CUT] on the touch panel, then... (DAB AF) ¢Ñ page 48 ¢Ñ page 14 • While receiving a DAB service: When driving in an area where a service cannot be received, this unit automatically tunes in to another ensemble or FM RDS station broadcasting the same programme.
Page 43: Listening To The Ipod
Listening to the iPod Track no./Playing time Sound mode (¢Ñ page 48) ¢Ñ page 44 ¢ Press: Select track : Buttons on the touch panel. In the Hold: Reverse/forward search explanation, they are indicated Enter player’s menu inside [ [• ‡ ] Start playback/pause •...
Page 44 Select an appropriate option. player’s menu Press [ 5] to enter the player’s menu. “SEARCH” flashes on the screen during menu operations. • This mode will be canceled if no operations are done for about five seconds. Press [ 4] or [¢] to select the desired item.
Page 45: Using Other External Components
Using other external components AV-INPUT You can connect an external component to the LINE IN/VIDEO IN terminals. Assigned title ( ¢Ñ page 49) Sound mode ( ¢Ñ page 48) You can easily access to <Aspect> setting menu by pressing [SHORT CUT] on the touch panel, then...
Page 46 Navigation screen You can also connect a Navigation System to the VIDEO IN terminal so that you can watch the navigation screen. Preparation: Make sure <Navigation> is selected for <AV Input>. (¢Ñ page 55) To view the navigation screen (and listen to the navigation guidance*) Press DISP on the monitor panel ( ¢Ñ...
Page 47 You can connect an external component to the CD changer jack on the rear using the Line Input Adapter—KS-U57 (not supplied) or AUX Input Adapter—KS-U58 (not supplied). Assigned title ( ¢Ñ page 49) Sound mode (¢Ñ page 48) ¢Ñ page 48 : Buttons on the touch panel.
Page 48: Sound Equalization
Sound equalization While playing back any source other than “Bluetooth PHONE,” you can easily access <Equalizer> menu by pressing [SHORT CUT] on the touch panel, then... Storing your own adjustments You can store your adjustments into <User1>, <User2>, and <User3>. Repeat steps ~ and Ÿ, then in step !...
Page 49: Assigning Titles To The Sources
Assigning titles to the sources In the explanation, buttons on the touch panel are indicated inside [ You can assign titles to “AV-IN” and “EXT-IN.” Assign a title. Press [SOURCE], then press [AV-IN] or [EXT-IN (¢Ñ ]. page 9) • You can also use SOURCE on the monitor panel.
Page 50: Menu Operations
Menu operations The following steps are one of the fundamental procedures. Some of the settings do not open the sub-setting window, but just selecting an option will change the setting. • The display indications may change according to change of the specifications. Ex.: Changing the <AV Input>...
Page 51 The procedure for setting an item is shown on page 50. Setup Menu items Selectable settings, [reference page] Off: Cancels. On: Activates the demonstration on the screen. To stop it temporarily, touch the screen. Wall Paper You can select the background picture of the screen. Horizon, Metal, Art, Plain Color You can select the color of the background picture.
Page 52 Initia lU:nderlined Menu items Selectable settings, [reference page] Aspect ratio of incoming signal 16:9 Regular: For 4:3 original pictures Full: For 16:9 original pictures Auto: • For “DISC”: Aspect ratio is automatically selected to match to the incoming signals. • For the other video sources: Aspect ratio is fixed to <Regular>.
Page 53 The procedure for setting an item is shown on page 50. Menu items Selectable settings, [reference page] 66). Audio Language* Select the initial audio language; Initial English (¢Ñ also page 66). Subtitle* Select the initial subtitle language or erase the subtitle (Off); Initial English (¢Ñ...
Page 54 Initia lU:nderlined Menu items Selectable settings, [reference page] reproduced through the LINE OUT terminals. Dolby SR : Select this to enjoy multi-channel surround audio by connecting an amplifier compatible with Dolby Surround. Stereo : Normally select this. D. (Dynamic) Range You can enjoy a powerful sound at a low volume level while playing Compres.
Page 55 The procedure for setting an item is shown on page 50. Menu items Selectable settings, [reference page] You can determine the use of LINE IN and VIDEO IN terminals. ¢Ñ [45, 46 ] Off: Select when no component is connected (“AV-IN” is skipped while selecting the source).
Page 56 Initia l nderlined Equalizer Flat/Hard Rock/R&B/Pop/Jazz/Dance/Country/Reggae/Classic/User1/User2/User3 ¢Ñ [48] Sound Menu items Selectable settings, [reference page] Fader/Balance Adjust fader—speaker output balance between the front and rear speakers. • Upmost—front only (F6) • Downmost—rear only (R6) When using a two-speaker system, set the fader to the center (0). Adjust balance—speaker output balance between the left and right speakers.
Page 57 The procedure for setting an item is shown on page 50. Menu items Selectable settings, [reference page] Mono Only for FM. (Off, On) ¢Ñ [10] DX/Local Only for FM. (Local, DX) ¢Ñ [11] Only for FM. Press and hold to start SSM. ¢Ñ [11] PTy Standby Only for FM/DAB.
Page 58 Menu items Selectable settings, [reference page] Dial Menu * Select the method to make a call. ¢Ñ [33] Message* You can read a message from the following message histories. Unread: Messages you have not read. Read: Messages you have read. Unsent: Messages you have not sent.
Page 59 * Selectable only for “Bluetooth PHONE.” * Only for the cellular phone connected for “Bluetooth PHONE.” Not selectable when “New Device” is selected. * If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www.jvc-victor. co.jp/english/car/>...
Page 60: Maintenance
Maintenance Moisture condensation To keep discs clean Moisture may condense on the lens inside the unit in A dirty disc may not play correctly. the following cases: If a disc does become dirty, wipe it with • After starting the heater in the car. a soft cloth in a straight line from center •...
Page 61: More About This Unit
More about this unit Playing Recordable/Rewritable discs General • This unit can recognize a total of 5 000 files and 250 Turning on the power folders (a maximum of 999 files per folder). • By pressing SOURCE on the monitor panel, you •...
Page 62 <.mod> is an extension code used for the MPEG2 • This unit cannot play back the following files: files recorded by JVC Everio camcorders. – MP3 files encoded with MP3i and MP3 PRO • The stream format should conform to MPEG system/ format.
Page 63 • DivX/MPEG1/MPEG2/JPEG/MP3/WMA/WAV Bluetooth operations General • While driving, do not perform complicated operation such as dialing the numbers, using phone book, etc. When you perform these operations, stop your car in a safe place. • Some Bluetooth devices may not be connected to this unit depending on the Bluetooth version of the device.
Page 64 • The text information scrolls on the screen. This unit can display up to 40 characters. Notice: When operating an iPod, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: <http://www.jvc.co.jp/english/car/support/ ks-pd100/index.html> EN_KW-AVX710[EU].indb 64 EN_KW-AVX710[EU].indb 64 07.12.17 5:46:41 PM...
Page 65 Sound signals emitted through the rear terminals Through the analog terminals (Speaker out/REAR OUT) 2-channel signal is emitted. When playing multi-channel encoded disc, multi-channel signals are downmixed. • DTS sound cannot be reproduced. Through the DIGITAL OUT terminal Digital signals (Linear PCM, Dolby Digital, DTS, MPEG Audio) are emitted. •...
Page 66 Preset equalizing values Frequency 60 Hz 150 Hz 400 Hz 1 kHz 2.5 kHz 6.3 kHz 15 kHz Sound mode Flat Hard Rock R&B Jazz Dance –02 –01 Country Reggae Classic User1/2/3 Language codes (for DVD/DivX language selection) Code Language Code Language Code Language Code Language...
Page 67 Bluetooth SIG, Inc. and any use of such marks • When any language other than <Ðócc©§ èé> is by Victor Company of Japan, Limited (JVC) is under selected for <Language>. (¢Ñ page 52) license. Other trademarks and trade names are those of their respective owners.
Page 68: Troubleshooting
Troubleshooting What appears to be trouble is not always serious. Check the following points before calling a service center. • For operations with the external components, refer also to the instructions supplied with the adapters used for the connections (as well as the instructions supplied with the external components). Symptoms Remedies/Causes •...
Page 69 Symptoms Remedies/Causes Eject the disc forcibly. (¢Ñ page 3) back. • Disc cannot be ejected. Unlock the disc. (¢Ñ page 22) • Recordable/Rewritable discs cannot be • Insert a finalized disc. played back. • Finalize the discs with the component which you used •...
Page 70 Symptoms Remedies/Causes phone and one Bluetooth audio player at a time. While connected to a device, this unit cannot be detected from another device. Disconnect currently connected device and search again. • The unit does not detect the Bluetooth • Check the Bluetooth setting of the device. device.
Page 71 Symptoms Remedies/Causes • “No Magazine” appears on the screen. Insert the magazine. • “Cannot play this disc Check the disc” Current disc does not include playable files. Replace the disc appears on the screen. with one including playable files. • “Reset 08” appears on the screen. Connect this unit and the CD changer correctly and press the reset button of the CD changer.
Page 72: Specifications
Specifications 50 W per channel Continuous Power Output Front/Rear: 20 W per channel into 4 Ù, 40 Hz to (RMS): 20 000 Hz at no more than 0.8% total harmonic distortion Load Impedance: 4 Ù (4 Ù to 8 Ù allowance) Equalizer Control Range: Frequencies: 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.5 kHz,...
Page 73 7 inch wide liquid crystal display Number of Pixel: 336 960 pixels: 480 × 3 (horizontal) × 234 (vertical) Drive Method: TFT (Thin Film Transistor) active matrix format Color System: NTSC/PAL Aspect Ratio: 16:9 (wide) DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Storage Temperature:...
Page 74 Having TROUBLE with operation? Please reset your unit Refer to page of How to reset your unit ¿Tiene PROBLEMAS con la operación? Por favor reinicialice su unidad Consulte la página de Cómo reposicionar su unidad Vous avez des PROBLÈMES de fonctionnement? Réinitialisez votre appareil Référez-vous à...
