Summary of Contents for Jet FS-1636H

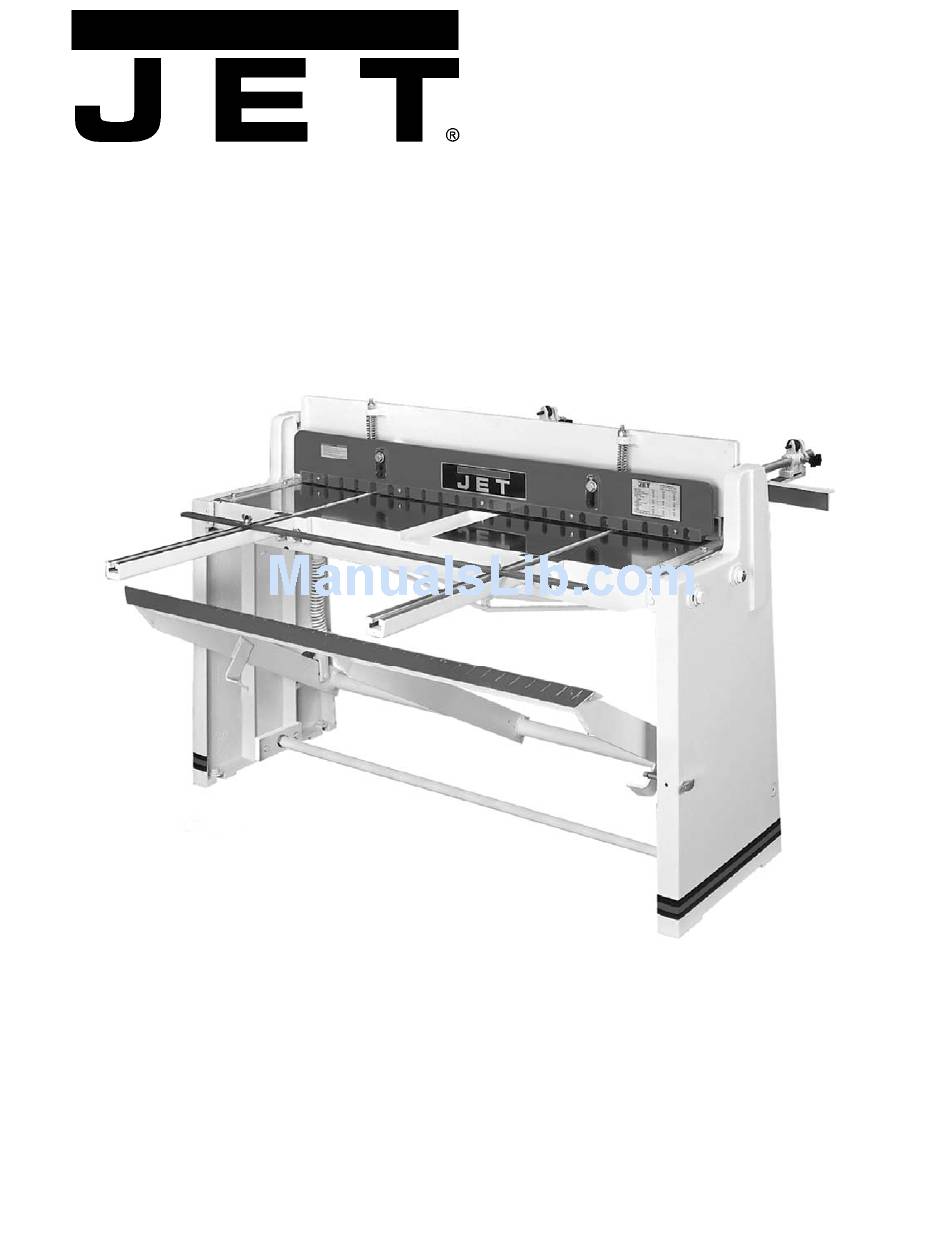

- Page 1 Operating Instructions and Parts Manual Foot Shear Models: FS-1636H, FS-1652H WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-752636 Ph.: 800-274-6848 Revision B1 01/2011 www.waltermeier.com Copyright © 2011 Walter Meier (Manufacturing) Inc.
-
Page 2: Warranty And Service
Walter Meier is consistently adding new products to the line. For complete, up-to-date product information, check with your local Walter Meier distributor, or visit waltermeier.com. WARRANTY JET products carry a limited warranty which varies in duration based upon the product (MW = Metalworking, WW = Woodworking). WHAT IS COVERED? This warranty covers any defects in workmanship or materials subject to the exceptions stated below. -
Page 3: Table Of Contents
Gib Adjustment ............................ 5 Breakdown for FS-1636H & FS-1652H Foot Shear .................. 6 Parts List for the FS-1636H & FS-1652H Foot Shear ................7 The specifications in this manual are given as general information and are not binding. Walter Meier (Manufacturing) Inc., reserves the right to effect, at any time and without prior notice, changes or... -
Page 4: Warnings
Warnings 1. Keep guards in place and in working order. 2. Keep all body parts away from moving parts. Avoid placing any part of your body near belts, cutters, gears, etc. 3. Do not exceed rated capacity on this brake. 4. -
Page 5: Specifications
Specifications Model Number ............. FS-1636H..........FS-1652H Stock Number..............752636..........752652 Capacity (mild steel) ............. 16 gauge..........16 gauge Shearing Length Capacity ............36”............52” Back Gauge Capacity ............25.5”............25.5” Front Gauge Capacity.............28”............28” Overall Dimensions (LxWxH) .....46 ½” x 21 ¼” x 41 ½”......62 ½” x 21 ¼” x 41 ½”... -
Page 6: Breakdown For Fs-1636H & Fs-1652H Foot Shear
Breakdown for FS-1636H & FS-1652H Foot Shear... -
Page 7: Parts List For The Fs-1636H & Fs-1652H Foot Shear
Parts List for the FS-1636H & FS-1652H Foot Shear Index No. Part No. Description Size 1 ....FS1636N-1 ....Table ..................... 1 ....FS1652N-1 ....Table ..................... 1 2 ....FS1636N-2 ....Cutter Bar ....................1 ....FS1652N-2 ....Cutter Bar ....................1 3 ....FS1636N-3 ....Hold Down..................... 1 .... - Page 8 ....FS1652N-ID .....ID Label (not shown)................1 ....FS1636N-W .....Warning Label (not shown) ..............1 ....FS1636N-J ....JET Label (not shown) ................1 Ordering Replacement Parts To order parts or reach our service department, call 1-800-274-6848 between 7:00 a.m. and 6:00 p.m.
