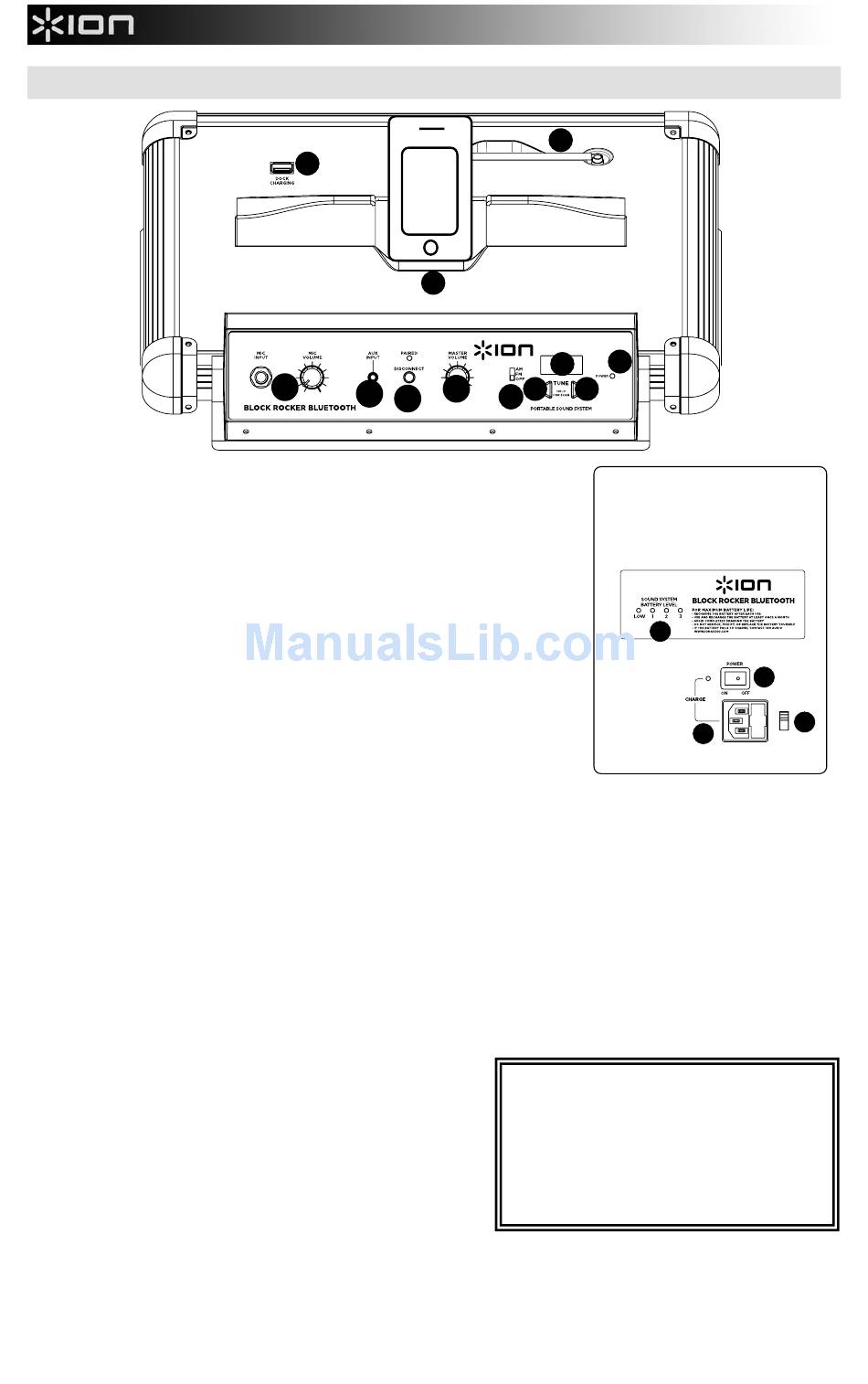

DIAGRAM AND PARTS DESCRIPTION

1. Instrument / Microphone Input with Volume Control (1/4"): This mono
input accepts a 1/4" input such as a microphone, guitar, or other musical
instrument.
2. Auxiliary input: This stereo 1/8" input can be used to connect a CD player,
MP3 player, or other audio source.
3. Bluetooth: The Paired LED will be lit when a device is paired to BLOCK
ROCKER BLUETOOTH. This LED will not be lit when BLOCK ROCKER
BLUETOOTH is first powered on (unless it was previously paired with a
device). Press the Disconnect button to disconnect a paired Bluetooth device.
4. Master Volume Control: This adjusts the speaker's main mix volume, which
includes Instrument/Microphone Input, Auxiliary Input, Tuner, and the audio of
a paired Bluetooth device.
5. Radio Selector: This switch sets the tuner to AM or FM or turns the tuner off.
(Note: This switch does not turn the unit's power off – just the tuner.)
6. LCD: Displays the current radio station.
7. Tuner: Use these buttons to search for a radio station. To "scan" (jump to the
next available station), hold this down for a few seconds until it starts to seek a
station. Unit will remember the last station you were on when you power off
and power back on.
8. Power LED: Indicates whether BLOCK ROCKER BLUETOOTH is on or off.
9. Dock Charge: Connect your device's charge cable here to charge it. USB charging only functions when the unit's power
is turned on.
Note: Users with iPad (3
locked when using iPad (3
10. Device Cradle: Place your iPad/iPod touch®/iPhone®, Android® or other device here to be held. These can be
connected via Bluetooth or to aux input using the included 1/8" to 1/8" cable. Note: It is recommended to remove your
iPad or other device from the cradle before transporting or traveling with BLOCK ROCKER.
11. Antenna: Adjust this telescoping FM antenna to get the best radio reception.
Note: To prevent accidental damage, we recommend rotating the antenna only when it is extended horizontally. Also,
retract the antenna when the Tuner is not in use.
Note: When using AM radio if you have a Bluetooth device that is paired, this will cause poor AM reception. Unpair your
Bluetooth device in order to listen to AM radio. To adjust AM reception, move entire unit.
12. Power Cable Input (IEC): Insert the included power cable here to charge the unit. Note that the BLOCK ROCKER
BLUETOOTH can run off the power adapter while it simultaneously charges the battery. The charge indicator illuminates
when the battery is charging.
13. Voltage Selector*: If your unit has a voltage selector switch,
change its setting only when necessary (e.g., when traveling to
a country or region with a different voltage). Selecting an
improper voltage setting can damage the unit. To change its
setting, only remove *one* screw of the cover and slide it aside
to expose the selector.
14. Power ON/OFF
BLUETOOTH on or off. Please note that while BLOCK
ROCKER BLUETOOTH is connected to a power source, it
does not need to be powered on to charge the battery.
15. Battery Level Indicator: While the unit is powered ON and
unit is not plugged in, these four lights indicate the power left in
the battery. Battery life varies based on volume and usage.
