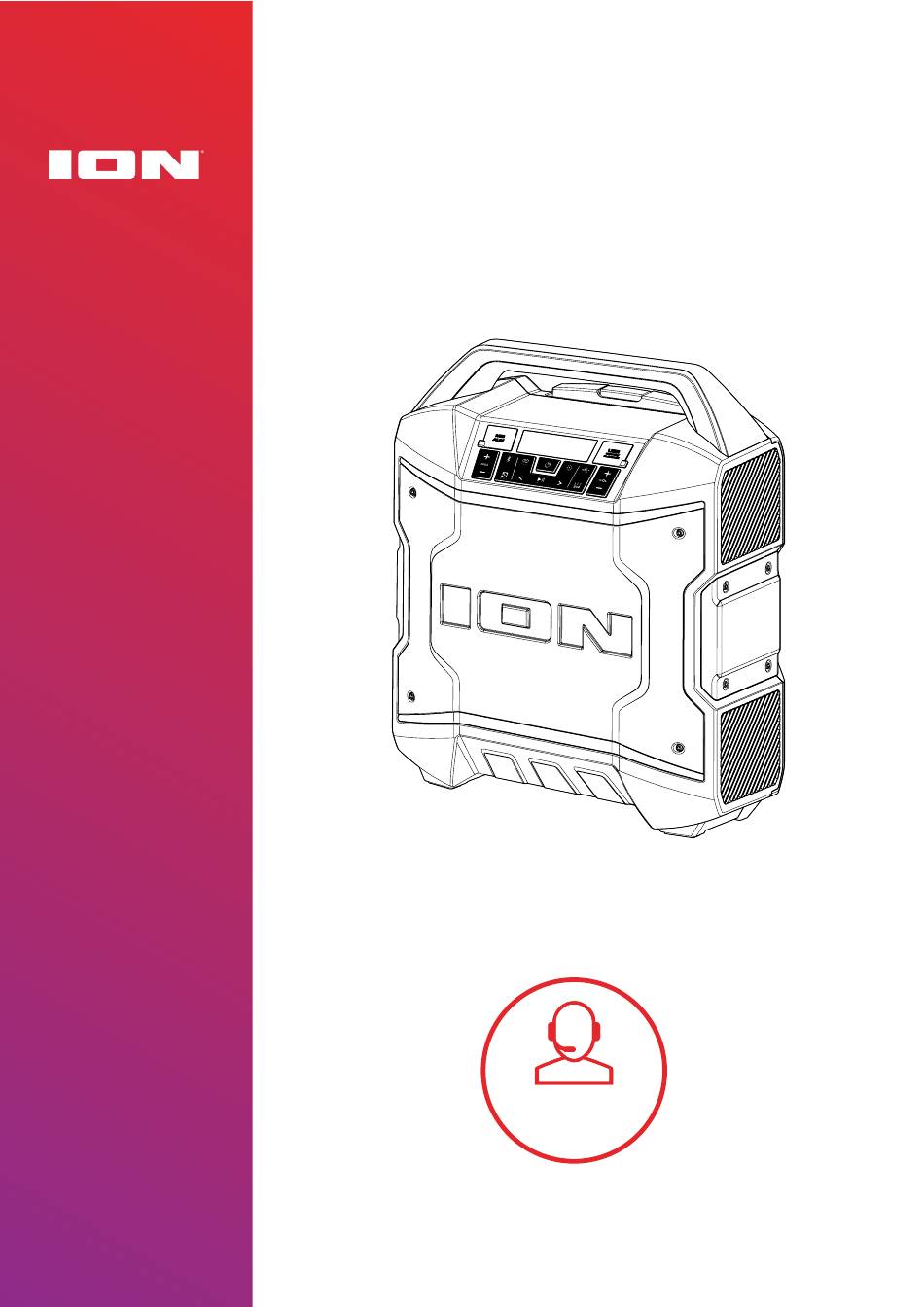

BLOCK ROCKER
®
User Guide
English
Tap or click
for technical
support.
ionaudio.com/support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLOCK ROCKER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ION BLOCK ROCKER

Summary of Contents for ION BLOCK ROCKER

  • Page 1 BLOCK ROCKER ® User Guide English Tap or click for technical support. ionaudio.com/support...

  • Page 2: Table Of Contents

    Pairing a Bluetooth® Device .................. 11 Linking Two Speakers .................... 12 Light Modes ........................ 13 Using the Radio ......................13 USB Mode ........................15 Using the USB Charge Port .................. 16 App Control ........................ 17 TROUBLESHOOTING ............... 18 ION Audio Block Rocker User Guide ®...
  • Page 3 APPENDIX ................20 Technical Specifications ..................20 Trademarks & Licenses ..................21 ION Audio Block Rocker User Guide ®...

  • Page 4: Introduction

    INTRODUCTION Thank you for purchasing the Block Rocker® Speaker. At ION, your entertainment is as important to us as it is to you. That’s why we design our products with one thing in mind—to make your life more fun and more convenient.

  • Page 5: Setup

    SETUP Charging and Battery Information For the quickest charging time, power o Block Rocker® and use the included IEC power cable connected to a power outlet. A full charge can take up to 6 hours. The lightning bolt icon on the display will light up when Block Rocker® is connected to a power source and charging.

  • Page 6: Outdoor Use And Care

    Please do not place Block Rocker® in standing water. • • Please do not connect the power adapter to a Block Rocker® in a wet environment. Make sure the power input, power adapter, and power outlet are all completely dry before making any connections.

  • Page 7: Features

    Click a control below to jump to that section. 1. Display This screen shows information relevant to the current operation on Block Rocker®. Note: The Display comes with a plastic protector on it. Remove this for optimal viewing. 2. Previous / Next Buttons In FM mode, press these buttons briefly to go to the previous or next station.
  • Page 8 VOL +/- buttons to adjust the EQ frequency settings from -12 to +12. 10. USB Charge/Playback Port Block Rocker includes a power bank function, which allows you to charge a smartphone, tablet, or other device using the unit’s internal battery (Capacity: 5Ah/12V, 60Wh.) by connecting a cable here.
  • Page 9 Use these buttons to raise and lower the volume of the Bluetooth, USB, radio, or aux input from 0-30. Press and hold a button to raise or lower the volume quickly. 15. Power Button Press and hold this button to turn Block Rocker® on and o . ION Audio Block Rocker User Guide...

  • Page 10: Rear Panel

    Rear Panel Note: Pull the tab on the protective rubber panel to release it and access the rear panel ports. 1. Power Input Connect the included power cable here to charge the speaker. ION Audio Block Rocker User Guide ®...

  • Page 11: Operation

    1 - PRESS 1. Turn on your Bluetooth device. 2. Turn on Block Rocker® by holding down the Power button for 2 seconds. When the unit is powered on for the first time, it will automatically enter Bluetooth pairing mode. If necessary, press and release the Bluetooth button to select Bluetooth mode.

  • Page 12: Linking Two Speakers

    Linking Two Speakers If you would like to play music from a Bluetooth device, you can first “link” two Block Rocker® speakers together in order to listen to your music in stereo. One Block Rocker® will serve as the left speaker and the other will serve as the right speaker.

  • Page 13: Light Modes

    The LED light modes are: Solid: All LEDs stay the same color (the color can be adjusted from the ION Sound • Control™ app). The default color is blue unless changed in the ION Sound Control™ app.

  • Page 14: Using The Radio

    3. When you have selected the desired preset number, quickly press and release the Presets button again to save it. To recall a previously saved preset, press and release the Presets button to cycle through the saved presets. ION Audio Block Rocker User Guide ®...

  • Page 15: Usb Mode

    Source button until USB mode is selected. Block Rocker® will automatically play the first compatible MP3 file. Files are played in alphabetical order of what is on the root level, then alphabetical by folder, and then alphabetical by track name.

  • Page 16: Using The Usb Charge Port

    1. Connect a USB type-A cable to the USB Charge Port on the front panel of your Block Rocker® speaker (see image). 2. Connect the other end of the cable to the charging input on your smartphone, tablet, or other compatible device. ION Audio Block Rocker User Guide ®...

  • Page 17: App Control

    Android OS or iOS on your device. Follow these steps to download the free app on your device: 1. Open the Apple App Store or Google Play on your device. Then, search for the ION Sound Control™ app. 2. Follow the on-screen instructions to download and install the app. Once downloaded, the ION Sound Control™...

  • Page 18: Troubleshooting

    Mic + button. If there is too much bass: Try adjusting the tone or EQ control on the Block Rocker® or your sound source to lower the bass level. This will allow you to play the music louder before clipping (distortion) occurs.
  • Page 19 If this does not work, and you have connected to Block Rocker® before, find Block Rocker® in the list of available or previously connected devices in your audio device's Bluetooth menu, tap the "gear" or “i” icon located next to it and then select Unpair or Forget. Turn Block Rocker®...
  • Page 20 For optimal performance, place the product so it is unobstructed by walls or furniture and is raised off the ground. ** Battery life may vary based on temperature, age, and volume usage of product. ION Audio Block Rocker ® User Guide...
  • Page 21 Trademarks & Licenses ION Audio is a trademark of inMusic Brands, Inc., registered in the U.S. and other countries. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such marks by ION Audio is under license.
  • Page 22 i o n a u d i o . c o m Manual Version 1.0...
