Summary of Contents for IMC Networks IE-iMcV-Gigabit TX/SFP

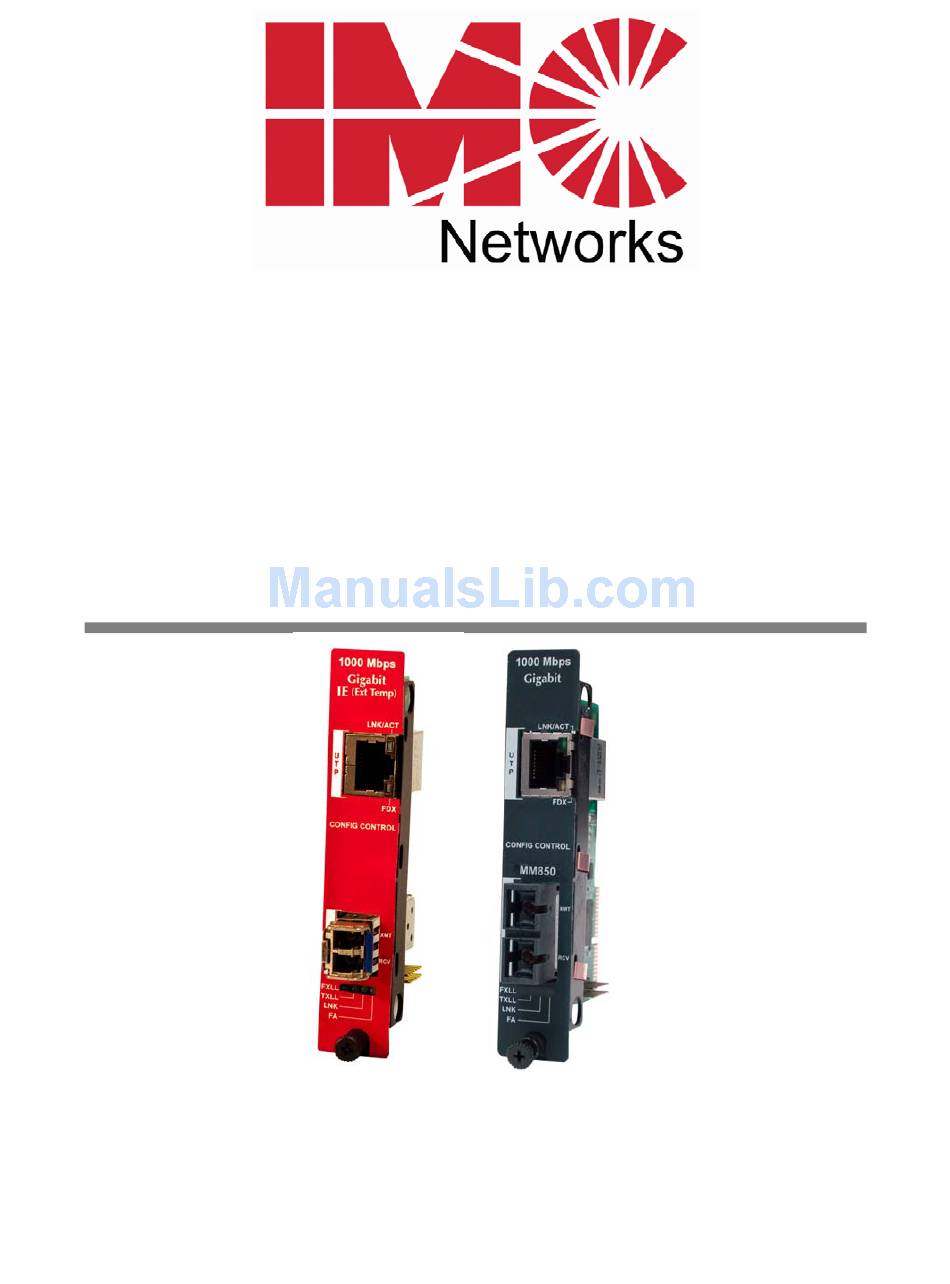

- Page 1 IE-iMcV-Gigabit TX/SFP iMcV-Gigabit TX/FX Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty......................ii About the IE-iMcV-Gigabit TX/SFP..............1 Configuration Instructions ..................1 Managed Modules .....................2 Configuration Control ..................2 LinkLoss, FiberAlert and Link Fault Pass-Through..........4 Additional Gigabit Features ................6 LED Operation....................7 Installation Troubleshooting ................8 Specifications .....................9 IMC Networks Technical Support..............10... -
Page 4: About The Ie-Imcv-Gigabit Tx/Sfp
About the IE-iMcV-Gigabit TX/SFP NOTE Unless noted otherwise, all references to the IE-iMcV-Gigabit TX/SFP in this manual are also applicable to the iMcV-Gigabit TX/FX. The SNMP manageable IE-iMcV-Gigabit TX/SFP Module provides a single conversion between 1000 Base-T twisted pair and 1000 Base-SX/LX fiber. Each IE-iMcV-Gigabit TX/SFP includes one RJ-45 connector and one pair of SC fiber optic connectors, and/or an SFP port, which can support any fiber type;... -
Page 5: Managed Modules
Managed Modules To manage one or more IE-iMcV-Gigabit TX/SFP Modules, an SNMP agent must be present in the chassis: To configure Managed Modules, install the module first, and then configure using the management software. Configuration Control Some iMcV-Modules offer Configuration Control; labels on the front faceplate are identified as such. - Page 6 Unmanaged Modules Before installing, configure the IE-iMcV-Gigabit TX/SFP Module for desired features. The diagram indicates the available features and settings for the module. After configuring the switch for the desired settings, install the module and connect the appropriate cables.
-
Page 7: Linkloss, Fiberalert And Link Fault Pass-Through
The appropriate “LNK” (link) LED is lit to indicate this. The IMC Networks media converter also sends out link pulses from its copper and fiber transmitters, but normally has no way of knowing whether the cable to the other device is intact and the link pulses are reaching the other end. - Page 8 If the device being connected to the IE-iMcV-Gigabit TX/SFP Module does not support Auto Negotiation, disabling the feature on the IE-iMcV-Gigabit TX/SFP Module forces the link up. DIP Switch settings for FX AN:...
-
Page 9: Additional Gigabit Features
Link Fault Pass-Through (LFPT) is a troubleshooting feature that combines TX and FX LinkLoss from both the local and remote IE-iMcV-Gigabit TX/SFP Modules. LFPT is enabled by turning on both FX and TX LinkLoss on both modules. This feature allows either end of the conversion to detect a link fault occurring at the other end of the media conversion chain. -
Page 10: Led Operation
ON (Preferred) OFF (Forced) AutoCross Feature for Twisted Pair Connection All twisted pair ports on the IE-iMcV-Gigabit TX/SFP include AutoCross, a feature that automatically selects between a crossover workstation and a straight-through connection depending on the connected device. LED Operation Each IE-iMcV-Gigabit TX/SFP Module features diagnostic LEDs that provide information on features and ports. -
Page 11: Installation Troubleshooting
If this is the case, an optical attenuator may need to be added to the connection. For fiber specifications, visit the IMC Networks Web site at: www.imcnetworks.com/adocs/fcs.asp or contact IMC Networks for more information. -
Page 12: Specifications
IE: -40°F to +185°F (-40°C to +85°C) Non-IE: +32°F to +122°F (0°C to +50°C) Storage Temperature -13°F to +158°F (-25°C to +70°C) Humidity 5 - 95% (non-condensing) Power Consumption (Typical) IE-iMcV-Gigabit TX/SFP w/LFPT: 0.55Amp Fiber Optic Specifications For fiber optic specifications, please visit: http://www.imcnetworks.com/adocs/fcs.asp... -
Page 13: Imc Networks Technical Support
IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com... -
Page 14: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 15: Certifications
Certifications CE: The products described herein comply with the Council Directive on Electromagnetic Compatibility (2004/108/EC). Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1 European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. - Page 16 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. IE-iMcV-Gigabit TX/SFP is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
