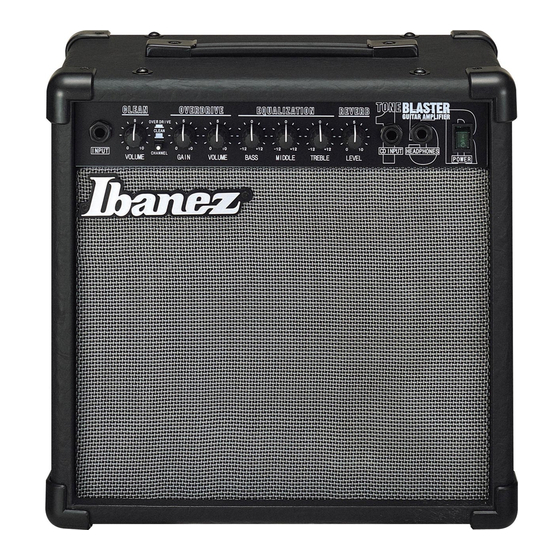

Ibanez TB15 Parts List

ITEM NUMBER
32S00367 B5
32S00368 B5
32S00369 B5
32S00370 B5
32S00371 B5
32S00372 B5
32S00373 B5
32S00374 B5
32S00375 B5
32S00376 B5
32S00377 B5
32S00378 B5
32S00379 B5
32S00380 B5
32S00381 B5
32S00382 B5
32S00383 B5
32S00384 B5
32S00385 B5
32S00257 B5
32S00026 B5
32S00027 B5
32S00389 B5
32S00390 B5
32S00391 B5
32S00392 B5
32S00393 B5
32S00394 B5
32S00032 B5
32S00396 B5
32S00034 B5
32S00398 B5
32S00399 B5
32S00037 B5
32S00401 B5
32S00402 B5
32S00403 B5
32S00404 B5
32S00151 B5
32S00406 B5
32S00040 B5
32S00408 B5
32S00409 B5
32S00041 B5
32S00411 B5
32S00278 B5
32S00413 B5
32S00414 B5
32S00415 B5
32S00416 B5
32S00417 B5
32S00418 B5
32S00419 B5
32S00053 B5
32S00421 B5
32S00422 B5
32S00058 B5
32S00056 B5
32S00057 B5
32S00059 B5
32S00061 B5
32S00428 B5
32S00429 B5
32S00430 B5
32S00063 B5
32S00064 B5
32S00065 B5
32S00068 B5
32S00067 B5
TB15/TB15R PARTS LIST
DESCRIPTION
01 PCB TB15R
01 CF RESISTOR 4.7
01 CF RESISTOR 68
01 CF RESISTOR 100
01 CF RESISTOR 1K
01 CF RESISTOR 3.3K
01 CF RESISTOR 4.7K
01 CF RESISTOR 8.2K
01 CF RESISTOR 10K
01 CF RESISTOR 15K
01 CF RESISTOR 18K
01 CF RESISTOR 22K
01 CF RESISTOR 33K
01 CF RESISTOR 100K
01 CF RESISTOR 150K
01 CF RESISTOR 470K
01 CF RESISTOR 1M
01 MOF RESISTOR 220
01 MOF RESISTOR 100
01 JUMPPER 5MM
01 JUMPPER 10MM
01 JUMPPER 15MM
01 VOLUME POT B10K
01 VOLUME POT B50K
01 VOLUME POT B100K
01 VOLUME POT A100K
01 EL CAP 0.1UF
01 EL CAP 0.47UF
01 EL CAP 1UF
01 EL CAP 3.3UF
01 EL CAP 22UF
01 EL CAP 100UF
01 EL CAP 470UF
01 EL CAP 2200UF
01 POLY CAP 0.0012U
01 POLY CAP 0.0027U
01 POLY CAP 0.0047U
01 POLY CAP 0.0068U
01 POLY CAP 0.01UF
01 POLY CAP 0.012UF
01 POLY CAP 0.018UF
01 POLY CAP 0.027UF
01 POLY CAP 0.033UF
01 POLY CAP 0.1UF
01 CERAMIC CAP 33PF
01 CERAMIC CAP 47PF
01 CERAMIC CAP 200P
01 CERAMIC CAP 270P
01 CERAMIC CAP 560P
01 CERAMIC CAP 680P
01 CERAMIC CAP 0.1U
01 DIODE 1N4148
01 DIODE 1N4004
01 IC NJM4558DD
01 IC LM1875
01 XH CONNECTOR 2PL
01 3.96CONNECTOR
01 DIA6.3 JACK MONO
01 DIA6.3 JACK STRO
01 PUSH SWITCH LOCK
01 205 CONNECT WIRE
01 205 CONNECT WIRE
01 WIRE BK 110MM
01 HEATSINK HSK-32
01 MICA SHEET TO220
01 TR INSLT PLATE
01 SCREW NI M3 P0.5
01 TOOTH WASHER D3
01 NUT M3 P0.5
PCBTB15RXXXN
RCF04R702JU7
RCF068002JU7
RCF010102JU7
RCF010202JU7
RCF033202JU7
RCF047202JU7
RCF082202JU7
RCF010302JU7
RCF015302JU7
RCF018302JU7
RCF022302JU7
RCF033302JU7
RCF010402JU7
RCF015402JU7
RCF047402JU7
RCF010502JU7
RMO022020JFH 22OHMS 2W
RMO010120JFH 100OHMS 2W
JPW060XXX050
JPW060XXX100
JPW060XXX150
VRRE1FCPB10A VR301(REVERB)
VR104(BASS),VR105(TREBLE),VR106(MIDD
VRRE1FCPB50C LE)
VR101(CLEAN VOLUME),VR103(OVER DRIVE
VRRE1FCPBA0A PCB VOLUME)
VRRE2FCPAA0A PCB VR102(OVER DRIVE GAIN) DUAL
CAE104FMLRBC
CAE474FMLRBC
CAE105FMLRBC
CAE335FMLRBC
CAE226DMLRBC
CAE107DMLRBC
CAE477DMLREH
CAE228DMLRGK
CPF122D10KGR
CPF272D10KGR
CPF472D10KGR
CPF682D10KGR
CPF103D10KGR
CPF123D10KGR
CPF183D10KGR
CPF273D10KGR
CPF333D10KGR
CPF104D10KGR
CCR330D05KSC
CCR470D05KSC
CCR201D05KEC
CCR271D05KEC
CCR561D05KEC
CCR681D05KEC
CCR104D05MUC
DID1N4148DHA
DID1N4004RHD
IGCN4558DDAO
IGCLM1875XBP
WAF2Y02SHH04
WAF4Y03SHH01 FROM TRANSFORMER
JKP6R3MOLA4N JK101,INPUT JACK
JKP6R3STDA6O JK102(CD INPUT),JK103(PHONE JACK)
SWP2PS01NL03 2P2T
HSN20XX2802A
HSN20XX2809A
ECWA180BB110
HSKE90204532
SPTMGATO220X
PPTTWH203530 WASHER TW-4
MSRR30XR510N L10
WSRO0632R5WS
NUTM30XPR5HS
REMARK Q'TY
1
1
1
1
5
3
6
2
7
2
1
2
1
7
2
1
1
2
1
11
11
4
1
3
2
1
2
2
6
4
1
2
2
2
1
1
2
1
1
1
1
2
1
2
1
1
1
1
1
1
16
2
4
6
1
2
1
1
2
1
1
1
1
1
1
1
1
1
1
