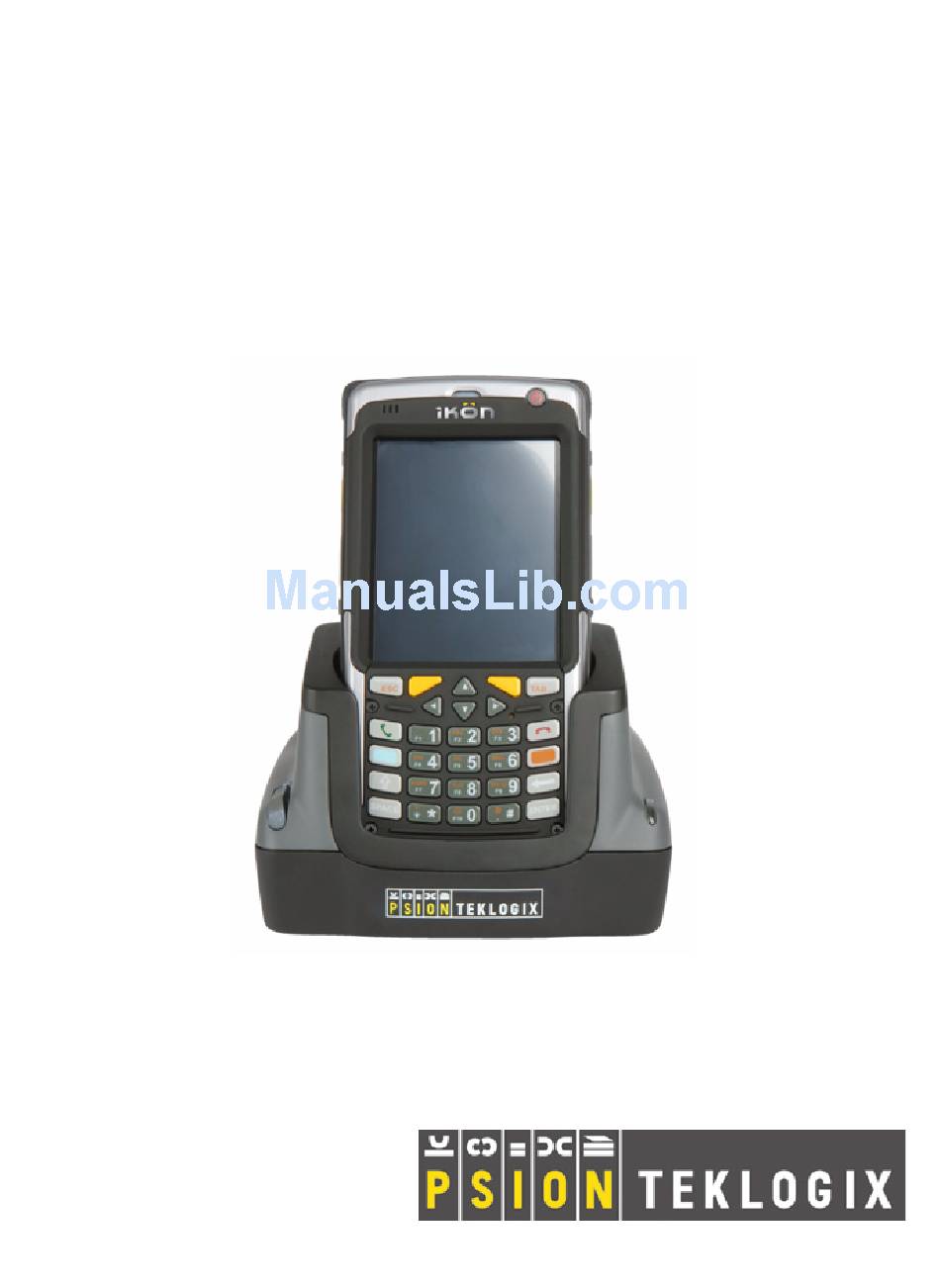

- Page 1 CH4000 Ikôn™ Rugged PDA Desktop Docking Station Quick Reference Guide December 6, 2007 PN 8100160.A ISO 9001 Certified Quality Management System...
- Page 2 © Copyright 2007 by Psion Teklogix Inc., Mississauga, Ontario, Canada This document and the information it contains is the property of Psion Teklogix Inc., is issued in strict confidence, and is not to be reproduced or copied, in whole or in part, except for the sole purpose of promoting the sale of Psion Teklogix manufactured goods and services.
- Page 3 Return-To-Factory Warranty Psion Teklogix provides a return to factory warranty on this product for a period of twelve (12) months in accordance with the statement of Warranty and Product Support provided at: www.psionteklogix.com/warranty The warranty on Psion Teklogix manufactured equipment does not...
-
Page 4: Declaration Of Conformity
This Product, and its accessories, comply with the requirements of the Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC. If your end-of-life Psion Teklogix product or accessory carries a label as shown here, please contact your local country representative for details on how to arrange recycling. - Page 5 RoHS-compliant as per the EU directive. Other than as noted below, a Psion Teklogix product that does not have an accompany- ing RoHS logo signifies that it was placed on the EU market prior to July 1, 2006, and is thereby exempt from the directive.
-
Page 7: Table Of Contents
6.3 Worldwide Offices....... 11 Psion Teklogix CH4000 Quick Reference Guide... -
Page 8: Important
Important: THE POWER SUPPLY SHALL BE PSION TEKLOGIX P/N 9010962. ALSO—THE INTERCHANGEABLE MAINS POWER PLUG SHALL COMPLY WITH THE NATIONAL SAFETY REGULATIONS OF THE COUNTRY WHERE THE EQUIPMENT IS TO BE SOLD. Psion Teklogix CH4000 Quick Reference Guide... - Page 9 - the extension cord is properly wired and in good electrical condition, and that the wire size is larger than 18 AWG. Figure 1.1 AC/DC Adaptor Psion Teklogix CH4000 Quick Reference Guide...
-
Page 10: Ch4000 Introduction
The CH4000 uses careful charge algorithms designed to maximize battery life while ensuring the shortest possible charge time. The charger supports proprietary Psion Teklogix Smart Batteries and handles a range of voltages and charge algorithms. See the appropri- ate Ikôn user manual for more information regarding battery capac- ity, charge times and battery life, for the Ikôn battery. -
Page 11: Operator Controls
The CH4000 has one operator control—the USB door on the rear, which switches from Type A to Type B (see “Operating The USB Dock” on page 7). 2.2 Indicators The front-mounted LED indicates the spare battery charge status. Psion Teklogix CH4000 Quick Reference Guide... -
Page 12: Desktop Docking Station Operation
• The charge stops when the battery is fully charged and the LED remains green. There is no risk of overcharge if the bat- tery remains in the charge slot. A full charge will take 2.5 to 3.0 hours for a 5000 mAh battery. Psion Teklogix CH4000 Quick Reference Guide... -
Page 13: Operating The Usb Dock
Move the sliding door selector to alternate between the Type A and Type B USB ports. Figure 3.1 Desktop Docking Station Rear View DC Jack Sliding Door Type A USB Port DC Jack Type B USB Port Sliding Door Psion Teklogix CH4000 Quick Reference Guide... -
Page 14: Cleaning The Ch4000
When an Ikôn is docked into a powered CH4000 and its charge indi- cator LED stays off, there could be a problem with the Ikôn or with the docking station. Use an Ikôn with a properly functioning charge indicator to isolate the problem. Psion Teklogix CH4000 Quick Reference Guide... -
Page 15: The Ikôn Charge Indicator Led Is Fast Flashing Green
• If the charge slot LED continues to fast flash green with the known working battery, the charger is defective and requires service. • Your Psion Teklogix battery and desktop docking station are carefully designed for safety and capacity performance in accordance with IEEE 1725. If the battery or charger are not Psion Teklogix approved products, or the safety mechanism is faulty, the spare charge slot LED or Ikôn LED will rapidly... -
Page 16: Support Services & Worldwide Offices
• If the charge slot fails to charge the known working battery, it is defective and requires service. 6. Support Services & Worldwide Offices Psion Teklogix provides a complete range of product support serv- ices to its customers worldwide. These services include technical support and product repairs. -
