Summary of Contents for Psion Teklogix PX3004

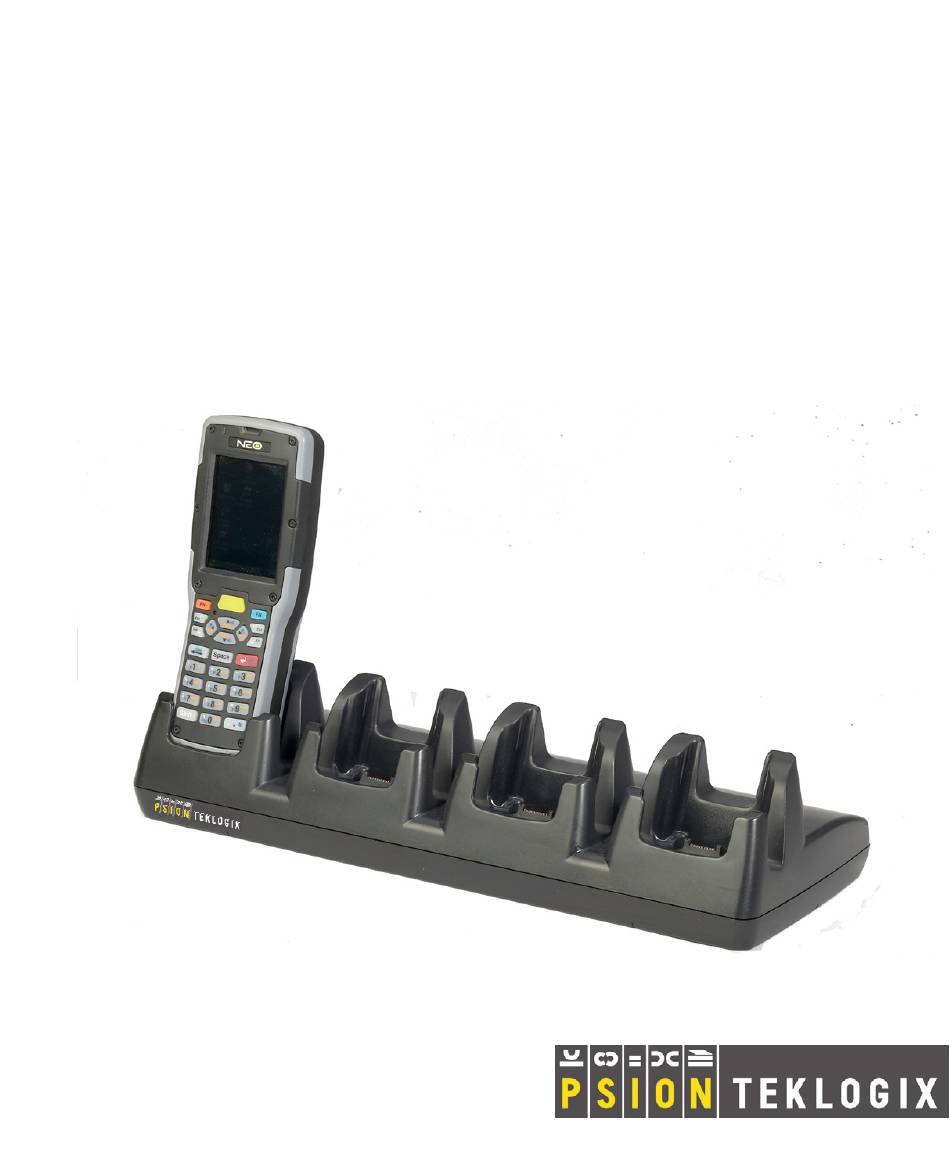

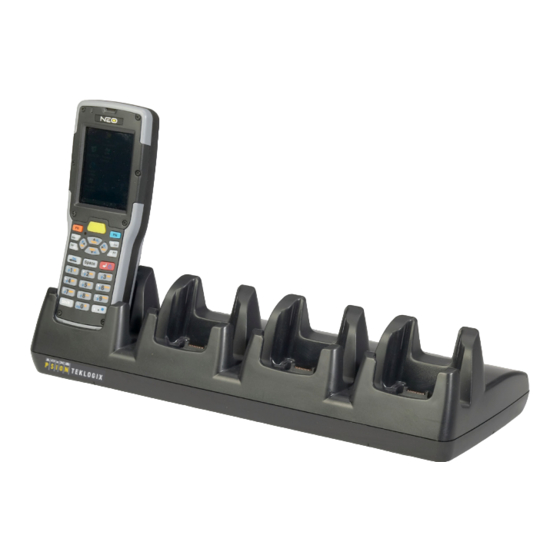

- Page 1 PX3004 NEO Handheld Computer Quad Desktop Dock and Charger User Manual PN 1081342.A ISO 9001 Certified Quality Management System...
- Page 2 Psion Teklogix manufactured goods and services. Furthermore, this docu- ment is not to be used as a basis for design, manufacture, or sub-contract, or in any manner detrimental to the interests of Psion Teklogix Inc.
- Page 3 Return-To-Factory Warranty Psion Teklogix provides a return to factory warranty on this product for a period of twelve (12) months in accordance with the statement of War- ranty and Product Support provided at: www.psionteklogix.com/warranty The warranty on Psion Teklogix manufactured equipment does not extend...
- Page 4 This Product, and its accessories, comply with the requirements of the Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/ EC. If your end-of-life Psion Teklogix product or accessory carries a label as shown here, please contact your local country representative for details on how to arrange recycling.
- Page 5 (or on a related accessory such as the charger or docking station) signifies that the product is RoHS-compli- ant as per the EU directive. Other than as noted below, a Psion Teklogix product that does not have an accompanying RoHS logo signifies that it was placed on the EU market prior to July 1, 2006, and is thereby exempt from the directive.
-
Page 6: Table Of Contents
1. Safety Instructions for the PX3004 and Power Adapter..1 2. PX3004 Introduction ....... . . 3 2.1 Operator Controls . -
Page 7: Safety Instructions For The Px3004 And Power Adapter
Do not operate the PX3004 or Power Adaptor with a damaged cord or plug. Replace immediately. • Do not operate the PX3004 or Power Adapter if it has received a sharp blow, been dropped or otherwise damaged in any way; it should be inspected by qualified service personnel. - Page 8 To reduce risk of electric shock, unplug the Power Adapter from the outlet before attempting any maintenance or cleaning. • Do not expose the Power Adapter or PX3004 to rain or snow. • An extension cord should not be used unless absolutely necessary. Use of an improper extension cord could result in fire or electric shock.
-
Page 9: Px3004 Introduction
The PX3004 has no operator controls or power switch. 2.2 Indicators The PX3004 has two rear Ethernet LEDs and one power LED on the top left hand corner of the product. The Power Adapter also has a power on/off LED. (See figure 3.1, page 5). -
Page 10: Px3004 Operation
3. PX3004 Operation 3.1 Docking The NEO Terminal Insert the Power Adapter Mini Fit Jr plug into the PX3004 rear DC input receptacle. The PX3004 Power LED and Power Adapter LED will glow green when powered from the mains. (See figure 3.1, page 5). The PX3004 supplies sufficient DC power for the terminal’s internal charger. - Page 11 Figure 3.1 Quad Docking Station Rear View and Power Adapter Green Power LED Mini Fit Jr Input Receptacle Mini Fit Jr RJ45 Ethernet with Green/Red Link LEDs Green Power LED Important: The Ethernet connection is for indoor use only. Psion Teklogix PX3004 User Manual...
-
Page 12: Cleaning The Px3004
5. Troubleshooting 5.1 The NEO Terminal Charge Indicator is OFF When Docked. When a NEO terminal is docked into a powered PX3004 and there is no charge indication on the NEO LED, there could be a problem with the NEO terminal or with the docking station. Use a NEO terminal with a properly functioning charge indicator to isolate the problem. -
Page 13: Rj45 Green Led Off
Check the Power Adapter LED. If the power LED is Off, the power adaptor may be defective and require service. • If the Power Adapter LED is On, check the Quad Dock power LED. If the power LED stays OFF, the PX3004 is defective and requires service. Psion Teklogix PX3004 User Manual... -
Page 14: Support Services & Worldwide Offices
6. Support Services & Worldwide Offices Psion Teklogix provides a complete range of product support services to its customers worldwide. These services include technical support and product repairs. 6.1 Technical Support For technical support in North America: Call Toll free: +1 800 387 8898 Option 3 or Direct Dial: +1 905 813 9900 Ext. -
Page 15: Product Repairs
For repair service in Asia, please contact the local office listed in the website below: http://www.psionteklogix.com 6.3 Worldwide Headquarters Psion Teklogix Inc. 2100 Meadowvale Blvd. Mississauga, Ontario Canada L5N 7J9 Tel: +1 905 813 9900 Direct:+ 1 905 813 9900 Fax: +1 905 812 6300 Psion Teklogix PX3004 User Manual... - Page 16 400217...
