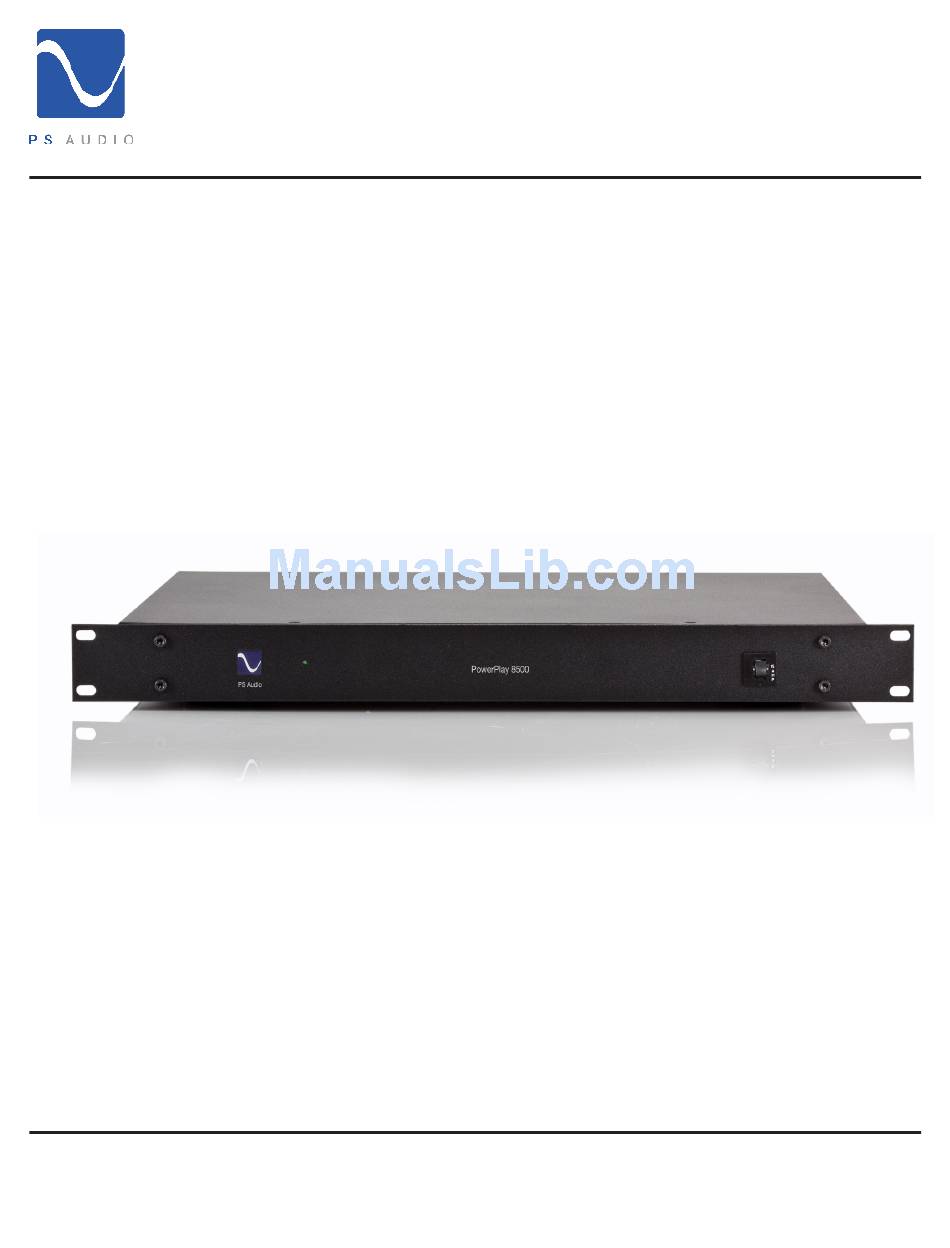

  • Page 1 Owner’s Reference ® Owner’s Reference PowerPlay 8500 Instructions for use PowerPlay 8500 4826 Sterling Drive, Boulder, CO 80301 Introduction i PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 2: Table Of Contents

    Switch Mode UPS Priority Control Panel – Infrared Codes Control Panel – Network Warranty ........................24-25 Service Information 26-27 4826 Sterling Drive, Boulder, CO 80301 Table Of Contents ii PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 3: Introduction Iii

    Please contact your authorized dealer, your distributor, or PS Audio directly if you have any questions or concerns that are not addressed in this reference manual. PS Audio™ is a trademarks of PS Audio International Inc., and is restricted for use by PS Audio International, Inc., its subsidiaries, and authorized agents.

  • Page 4: Device Description

    12 volt trigger and Phone communications port provide additional methods controlling the PowerPlay and connected devices. Intelligent UPS Control The UPS communication port enables PS Audio’s Intelligent UPS Management control and configuration. Power Monitoring The PowerPlay monitors and reports detailed power conditions whenever the unit is connected to PS Audio Global Net.

  • Page 5: Installation And Operating Instructions

    Once your new PowerPlay is unpacked, you’ll need to find a convenient place to set it. Mounting The PowerPlay is stackable on other PS Audio PerfectWave devices, Or installed in a standard component rack. If your equipment is located a long distance from the PowerPlay, it is preferable to use a long, heavy gauge shielded power cable between the AC receptacle in the wall and the PowerPlay.

  • Page 6: Overview

    10. USB Jack 16. Unit ID 5. IsoZone B 11. 12V trigger/IR input 6. IsoZone A 12. 12V trigger/IR output 4826 Sterling Drive, Boulder, CO 80301 Getting Started 2 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 7: Installation

    To enable web based control connect an Ethernet cable from a live connection to the “ETHERNET” jack on the PowerPlay. 4826 Sterling Drive, Boulder, CO 80301 Getting Started 3 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 8: Self Test And Power Up

    World Wide Web, and a green ethernet indicator on the front panel. In order to register you will need to create an account with PS Audio and you will need to know the unit ID number of the unit or units you would like to register. The unit ID number can be obtained from the bottom of the device.

  • Page 9: Log Into Your Account

    If you have not created an account already you will need to do so at this time using the REGISTER link in the upper left corner. If you are a PS Audio dealer and don’t already have an account please contact your account representative to setup the account.

  • Page 10: User Control Panel

    Editing a customer’s information, adding an additional PowerPlay box, or even removing the customer is as simple as clicking a button. 4826 Sterling Drive, Boulder, CO 80301 Getting Started 6 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 11: My Device List

    Although two way communication is not possible you may alter the settings of the device. When the offline unit reconnects all web based changes will override the settings on the box. 4826 Sterling Drive, Boulder, CO 80301 Getting Started 7 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 12: Globalnet - Control Tab

    CONTROL (current screen) CONFIGURE ALERTS PERFORMANCE IR CODES 4826 Sterling Drive, Boulder, CO 80301 Getting Started 8 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 13: Globalnet- Configure Tab

    You may label each outlet to match the device connected. Type the desired label in the text field above each outlet.`` 4826 Sterling Drive, Boulder, CO 80301 Getting Started 9 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 14: Power Toggle

    The outlet will follow the state of the Power Button. Delay The outlet will follow the state of the Power Button after a 3 second delay. 4826 Sterling Drive, Boulder, CO 80301 Getting Started 10 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.
  • Page 15 Auto Reboot outlets. Always On The outlet remains on regardless of the state of the Power Button. 4826 Sterling Drive, Boulder, CO 80301 Getting Started 11 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 16: Ups Priority

    Owner’s Reference PowerPlay 8500 UPS Priority When PowerPlay is connected to a PS Audio PowerPack battery backup you may control how each outlet shuts down in a battery backup situation. Using the drop box you may select one of the following options: Low –...

  • Page 17: Email Alerts

    Contact your cell service provider to determine the address in which you should send these reports. 4826 Sterling Drive, Boulder, CO 80301 Getting Started 13 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 18: Performance

    The Performance tab will allow you to check up on your power conditions and the performance of your PowerPlay. 4826 Sterling Drive, Boulder, CO 80301 Getting Started 14 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 19: Ir Codes

    PowerPlay with an IR distribution system. If you are not familiar with an IR distribution system call your system integrator for more information. 4826 Sterling Drive, Boulder, CO 80301 Getting Started 15 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.
  • Page 20 Once an IR command has been stored into your PowerPlay you may issue the command from anywhere in the world simply by using your web browser. 4826 Sterling Drive, Boulder, CO 80301 Getting Started 16 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 21: Internal Website Control

    System Status page of the control panel. From this page you may control the Master Power, identify outlets, control outlets or access more advance controls. 4826 Sterling Drive, Boulder, CO 80301 Getting Started 17 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.
  • Page 22 Click on any outlet to toggle the power. 4826 Sterling Drive, Boulder, CO 80301 Getting Started 18 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 23: Control Panel - Configuration

    You may label each outlet to match the device connected. Type the desired label in the text field above each outlet. 4826 Sterling Drive, Boulder, CO 80301 Getting Started 19 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 24: Switch Mode

    10 minutes. When Auto Reboot is selected you may use the on and off delays to sequence power of all Auto Reboot outlets. 4826 Sterling Drive, Boulder, CO 80301 Getting Started 20 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 25: Ups Priority

    Owner’s Reference PowerPlay 8500 UPS Priority When PowerPlay is connected to a PS Audio PowerPack battery backup you may control how each outlet shuts down in a battery backup situation. Using the drop box you may select one of the following options: Low –...

  • Page 26: Control Panel - Infrared Codes

    5. Repeat for each code you wish to send. To view and/or modify stored codes click on View Stored Codes. Commands may be edited as outlined above. 4826 Sterling Drive, Boulder, CO 80301 Getting Started 22 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 27: Control Panel - Network

    DHCP by removing the checkbox. In order to maintain network connectivity you must know and complete the network settings. 4826 Sterling Drive, Boulder, CO 80301 Getting Started 23 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.

  • Page 28: Warranty

    PS Audio will not honor this warranty without valid proof of purchase from an authorized PS Audio dealer, distributor or agent and or a valid serial number as proof the product is a valid PS Audio product manufactured by PS Audio International.
  • Page 29 In the unlikely event of service required beyond the capability of the importer, PS Audio will fulfill the conditions of the warranty. Such product must be returned at the owner’s expense to the PS Audio factory, together with a photocopy of the bill of sale for that product, a detailed description of the problem, and any information necessary for return shipment.

  • Page 30: Service Information

    RA number must be inside the box to qualify for service. If you are transferring your warranty, you must first contact PS Audio or your dealer or distributor for details. Contact...
  • Page 31 ® Owner’s Reference PowerPlay 8500 Service for PS Audio products outside the United States is handled through your country’s distributor or dealer. 1. Obtain a Return Authorization Number (R/A number) and shipping address from your dealer or distributor’s Service Department.
  • Page 32 ® Owner’s Reference PowerPlay 8500 4826 Sterling Drive, Boulder, CO 80301 PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2012 PS Audio International Inc. All rights reserved.
