PARTS & SERVICE MANUAL
for
Free Standing Bulb Warmers
B1, B2, B3 & B1-2

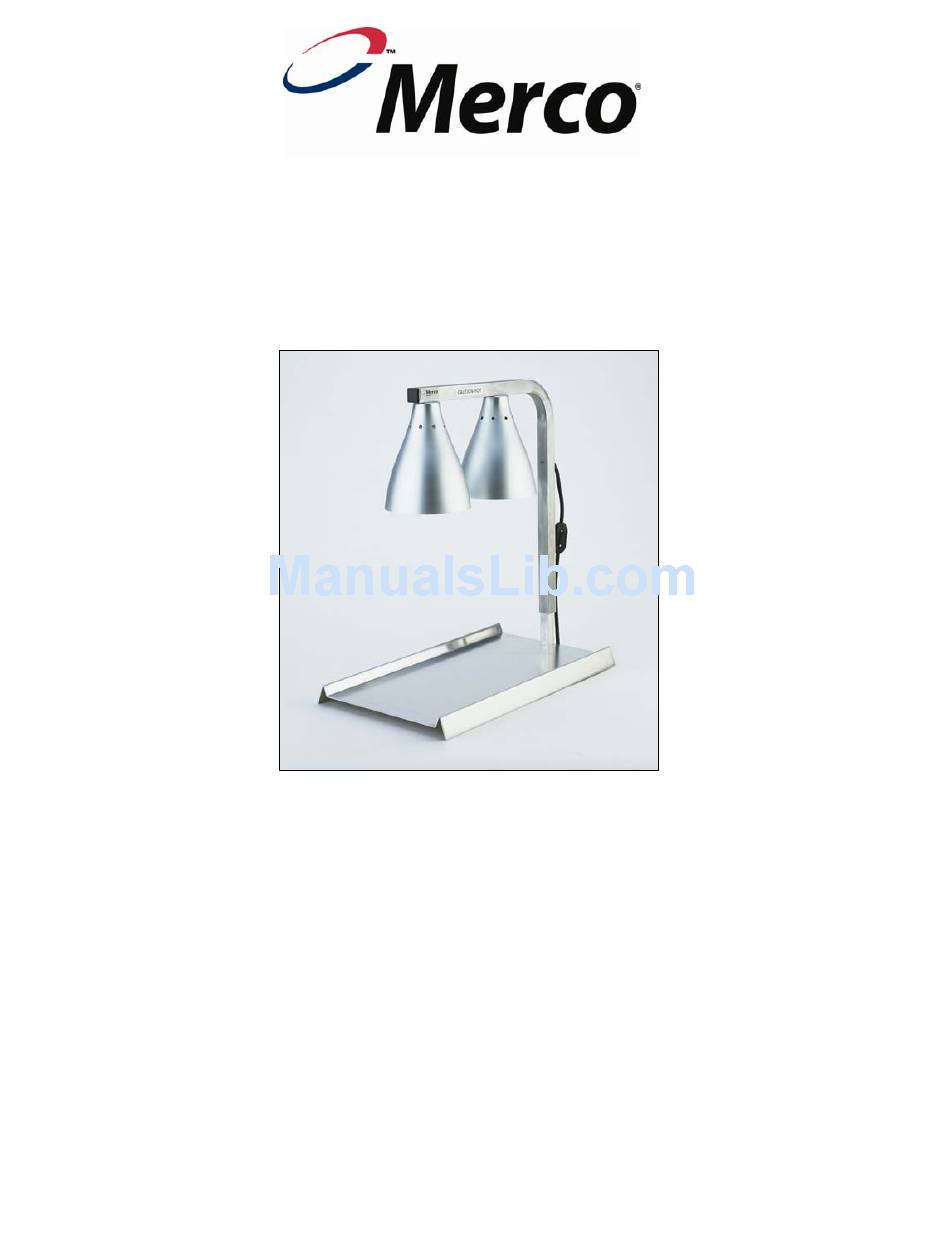

Model B2 Shown
The Free Standing Foodwarmer Series – B1, B2, B3 & B1-2 – are all engineered for efficient,
dependable service throughout the years. Like any piece of fine equipment with moving parts and broad
temperature ranges, physical wear takes its toll. When this happens, the information found in this
manual will prove very helpful. Although the instructions are easy to follow, all repair procedures should
be carried out be a qualified Merco Savory Service Representative.
Merco Free Standing Bulb Warmers are manufactures from specially selected alloys for long life and
easy cleaning. Models are available in 1, 2 and 3 bulb configurations as well as a special 3 bulb unit for
most commercial food slicers (B1-2). All models are available in 120 or 240 volts, single phase – AC
only.
THIS MANUAL SHOULD BE RETAINED FOR FUTURE USE
BulbWarmerSvc
REV: 12/3//07
Advertisement
Table of Contents
Related Manuals for Merco B1
Summary of Contents for Merco B1
- Page 1 Models are available in 1, 2 and 3 bulb configurations as well as a special 3 bulb unit for most commercial food slicers (B1-2). All models are available in 120 or 240 volts, single phase – AC only.
- Page 2 B1 – SPARE PARTS LIST, 120V & 240 V ITEM PART # DESCRIPTION 000179 BUSHING, HEYCO, SR-6N-3-4, BLACK 060334 PLUG, 1”, SQ, PLASTIC, BLK, DRILLED 000671 SOCKET, B-2, PORC KEYLESS LH, 14” 000638 SHADE, ALUM, #500, SATIN-CLEAR 000371 LAMP, 120V, 250W, CLR, HEAT, 250R40...
- Page 3 B2- SPARE PARTS LIST, 120V & 240V ITEM PART # DESCRIPTION 000179 BUSHING, HEYCO, SR-6N-3-4, BLACK 060334 PLUG, 1”, SQ, PLASTIC, BLK, DRILLED 000671 SOCKET, B-2, PORC KEYLESS LH, 14” 000638 SHADE, ALUM, #500, SATIN-CLEAR 000371 LAMP, 120V, 250W, CLR, HEAT, 250R40 000372 LAMP, 120V, 250W, RED, 250R40 000373...
- Page 4 B3 – SPARE PARTS LIST, 120V & 240V ITEM PART # DESCRIPTION 000179 BUSHING, HEYCO, SR-6N-3-4, BLACK 060334 PLUG, 1”, SQ, PLASTIC, BLK, DRILLED 000671 SOCKET, B-2, PORC KEYLESS LH, 14” 000638 SHADE, ALUM, #500, SATIN-CLEAR 000371 LAMP, 120V, 250W, CLR, HEAT, 250R40 000372 LAMP, 120V, 250W, RED, 250R40 000373...
- Page 5 B1-2 – SPAER PARTS LIST, 120V & 240V ITEM PART # DESCRIPTION 000179 BUSHING, HEYCO, SR-6N-3-4, BLACK 060334 PLUG, 1”, SQ, PLASTIC, BLK, DRILLED 000671 SOCKET, B-2, PORC KEYLESS LH, 14” 000638 SHADE, ALUM, #500, SATIN-CLEAR 000371 LAMP, 120V, 250W, CLR, HEAT, 250R40...
- Page 6 B-Line Shade & Socket Replacement 1. Disconnect power supply from unit. 2. Remove #2 plastic plug from end of arm and pull wire ends from tubing. Remove plastic wirenuts. 3. Remove all light bulbs to prevent damage. 4. Loosen knob #9 and remove arm. 5.
-
Page 7: Wiring Diagrams
INSTALLATION 1. Check the specification data plate located on the control panel for the correct model number, voltage and wattage. 2. Check to insure that the electric circuit being used to supply electricity to the unit has a sufficient amerage rating. - Page 8 This Limited Warranty shall be governed by the laws of the state of Delaware, USA, excluding their conflicts of law principles. The United Nations Convention on Contracts for the International Sale of Goods is hereby excluded in its entirety from application to this Limited Warranty Merco Savory LLC 1111 North Hadley Road Fort Wayne, Indiana 46804 www.mercosavory.com...
