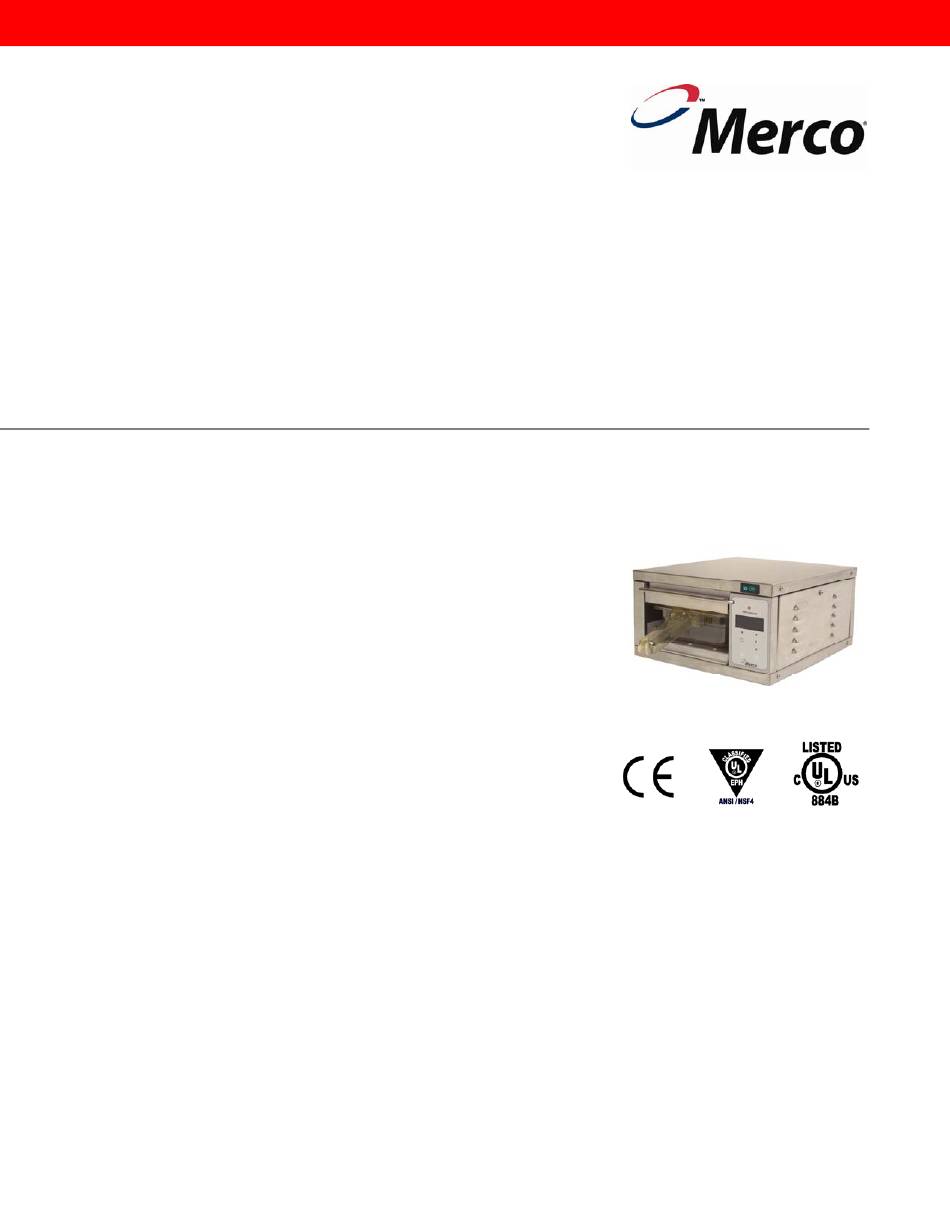

Installation & Operation Manual
MHC-1 Holding Cabinet
Models 86007 & 86009
This document includes:
• safety notices
• specifications
• installation instructions
• operating instructions
• cleaning instructions
Model 86009 shown
• warranty statement
Revision: F
P/N: 20000147
Merco, LLC
1111 North Hadley Road
Fort Wayne, Indiana 46804
United States of America
Technical Support Hotline: (800) 678-9511
Telephone: (260) 459-8200
www.mercosavory.com
Advertisement
Table of Contents
Related Manuals for Merco MHC-1
Summary of Contents for Merco MHC-1
- Page 1 Installation & Operation Manual MHC-1 Holding Cabinet Models 86007 & 86009 This document includes: • safety notices • specifications • installation instructions • operating instructions • cleaning instructions Model 86009 shown • warranty statement Revision: F P/N: 20000147 Merco, LLC...
-
Page 2: Table Of Contents
10 lbs. or 4.54 kg. The power supply must be in accordance with the specifications on the data plate located on the rear of the appliance. If installing multiple MHC-1 units, do not exceed the maximum allowable circuit amperage as determined by local code. -
Page 3: Unit Specifications
6’ NEMA 5-15P 86009 (Right Side Control) 120 VAC 6’ NEMA 5-15P 86007-CE (Left Side Control) 230 VAC 1.57 BS 1363/A 86009-CE (Right Side Control) 230 VAC 1.57 BS 1363/A Dimensions shown below are in inches. MHC-1 Installation & Operation Manual... - Page 4 UNIT SPECIFICATIONS (CONT’D) The MHC-1 may be stacked in multiple configurations. In addition to the single unit, the MHC-1 may be stacked a maximum of three (3) high or “triple-stack.” There is no limit to the horizontal configuration of MHC-1 units. The dimensional drawings below provide additional measurements concerning these configuration options.
-
Page 5: Control Panel Illustration
INSTALLATION See Addendum A for complete details on the proper installation of the MHC-1 unit. MHC-1 CONTROL PANEL Timer Start/Stop Button Display Top Heating-Element Indicator Light (Green) Indicator Light (Green) Time Button Temperature Button Bottom Heating-Element Indicator Light (Green) Down-Arrow Button Up-Arrow Button MHC-1 Installation &... -
Page 6: Operating Instructions
220°F for the upper-bin heating element and 200°F for the lower-bin heating element. The Merco Holding Cabinet has been designed to afford foodservice operators the ability to cook menu components in advance and then gently store that product in the holding bin until an order is received. Once that order has been placed, the crew can assemble the order using hot and fresh menu components from the holding bins. - Page 7 (3) seconds of Save Programmed Settings inactivity. After approximately 3 seconds of inactivity the display will stop flashing. The unit is now in normal operation and cannot be reprogrammed until re-entering the “Product Programming” mode. MHC-1 Installation & Operation Manual...
-
Page 8: Cleaning & Maintenance
Merco Holding Cabinets are designed for easy cleaning and minimum maintenance. The stainless steel outer case requires nothing more than a daily wiping with a damp cloth. If, however, an excessive amount of food particles / grease are allowed to collect, a non-abrasive cleaner (hot sudsy water) may be used. -
Page 9: Addendum A - Installation Instructions
MHC-1 installation instructions Merco Holding Cabinet Model MHC-1 MHC-1 installation kit (#86103) includes: Two (2) – Shelf Mounting Brackets / PN: 90000061 Four (4) – Shelf Stacking Brackets / PN: 70000135 Two (2) – Angle Mount Brackets / PN: 70000134 This installation will require ¼-20 stainless steel studs with washers and... - Page 10 VERTICAL CONFIGURATION. INSTALLATION INSTRUCTIONS The MHC-1 Holding Cabinet may be installed in a vertical configuration up to three units high. It is important to read and thoroughly understand these instructions prior to installation. Should you have any questions or need additional instruction, please contact our Merco Technical Service Hotline at (800) 678-9511 for assistance.
- Page 11 2. Using the Cover Screws that were removed in step 1, attach the MHC-1 units together using the Shelf Stacking Brackets provided (Figure C). Shelf Stacking Brackets FIGURE C MHC-1 Installation & Operation Manual...
- Page 12 3. Attach the two (2) Angle-Mount Brackets to the top cover of the top MHC-1 unit (Figure D). Angle-Mount Brackets P/N: 70000134 FIGURE D MHC-1 Installation & Operation Manual...
- Page 13 4. To properly install the MHC-1 unit, take the mounting template (Figure E) and place under shelf or cabinet where you would like the unit installed. (Note: the bend in template should rest against the front of the shelf or cabinet.) Mark the locations for stud placement via the template holes.
- Page 14 Shelf Mounting Brackets followed by another washer and nut. NOTE: Studs should be ¼-20 Stainless Steel. Studs, washers and nuts are not included. 6. With Shelf Mounting Brackets level and securely attached to kitchen shelving, slide the MHC-1 “stacked” configuration into the Shelf Mounting Brackets (Figure G). NOTE: Each end of the Shelf Mounting Brackets has “Stop Brackets”...
-
Page 15: Warranty
(ii) at Merco’s option, the refund of the amount paid for said equipment or services. Any breach by Merco with respect to any item or unit of equipment or services shall be deemed a breach with respect to that item or unit or service only... - Page 16 MHC-1 Installation & Operation Manual...
