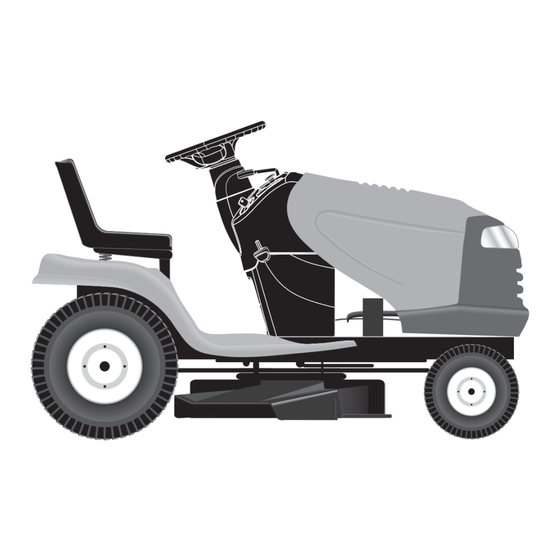

Poulan Pro PRO PB23H48YT Repair Parts Manual
Lawn tractor
Hide thumbs
Also See for PRO PB23H48YT:
- Operator's manual (60 pages) ,
- Operator's manual (28 pages) ,
- Operator's manual (60 pages)
Table of Contents
Advertisement
Quick Links

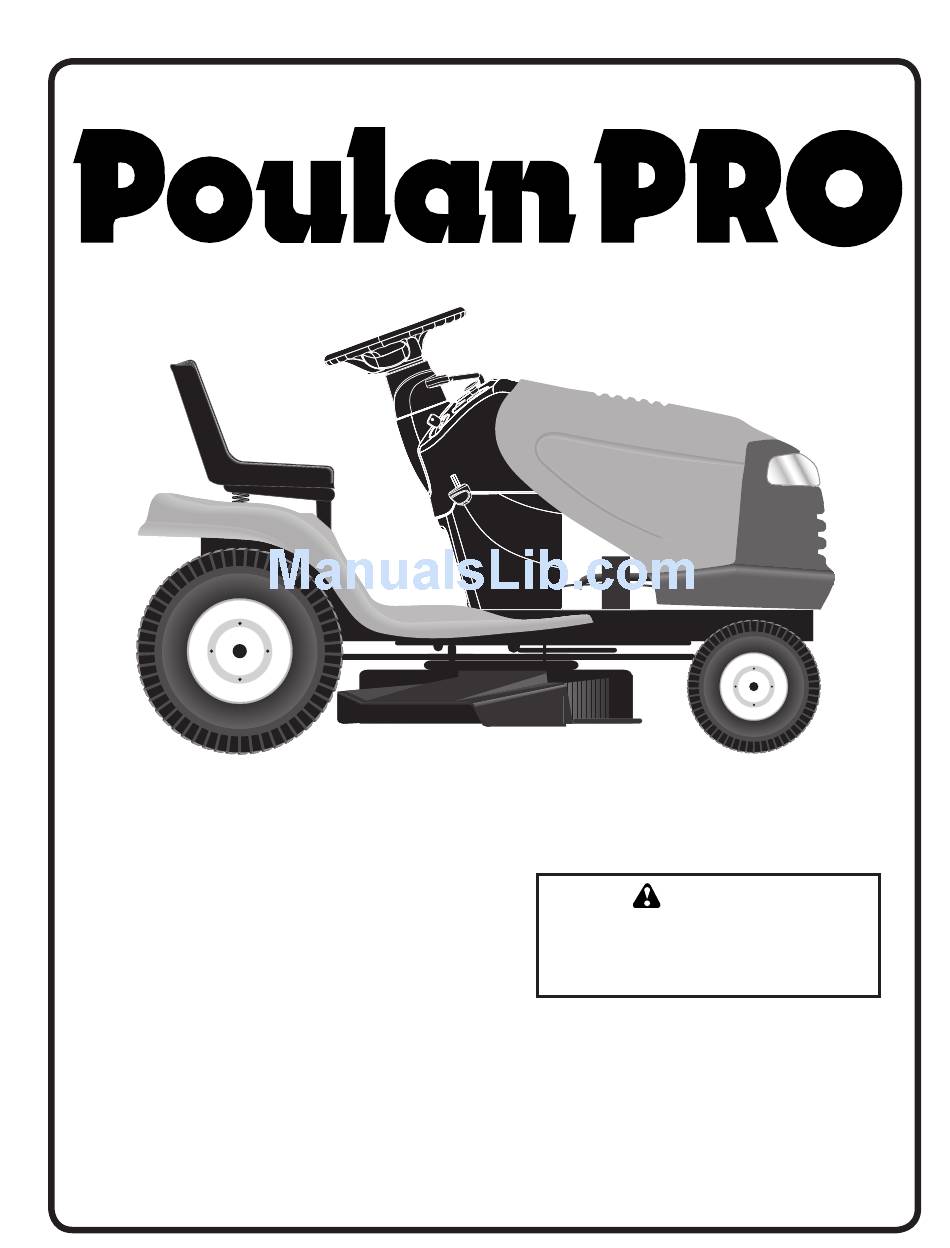

IMPORTANT MANUAL
REPAIR PARTS MANUAL
MODEL:
23 H 48YT
PB
LAWN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulan-pro.com
433417
DO NOT THROW AWAY
03032
WARNING:
READ THIS MAN U AL AND FOLLOW ALL
WARNINGS AND SAFETY INSTRUCTIONS.
FAIL URE TO DO SO CAN RE SULT IN SERI-
OUS IN JU RY.
12.28.09 SR
Printed in the U.S.A.
Advertisement
Table of Contents
Related Manuals for Poulan Pro PRO PB23H48YT
Summary of Contents for Poulan Pro PRO PB23H48YT
- Page 1 WARNINGS AND SAFETY INSTRUCTIONS. 23 H 48YT FAIL URE TO DO SO CAN RE SULT IN SERI- OUS IN JU RY. LAWN TRACTOR ALWAYS WEAR EYE PROTECTION DURING OPERATION Visit our website: www.poulan-pro.com 12.28.09 SR 433417 Printed in the U.S.A.
-
Page 2: Table Of Contents
HOW TO USE THIS MANUAL This manual is designed to provide the customer with a means to identify the parts on his/her tractor when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore, it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some hardware and parts are drawn larger in order to more readily identify them. -
Page 3: Schematic
TRACTOR - MODEL NO. PB23H48YT (96042010900), PRODUCT NO. 960 42 01-09 SCHEMATIC SCH12 BATTERY SOLENOID STARTER FUSE AMMETER BLACK (OPTIONAL) ELECTRIC CLUTCH WHITE PTO SWITCH WHITE BLACK (DISENGAGED) WHITE BLACK GRAY CLUTCH/BRAKE (PEDAL UP) REVERSE SWITCH (NOT IN REVERSE) BLACK BLACK BLACK BLACK... -
Page 4: Electrical
TRACTOR - MODEL NO. PB23H48YT (96042010900), PRODUCT NO. 960 42 01-09 ELECTRICAL T11S With 12V Outlet Option With Service Minder Option... -
Page 5: Electrical
TRACTOR - MODEL NO. PB23H48YT (96042010900), PRODUCT NO. 960 42 01-09 ELECTRICAL PART DESCRIPTION 163465 Battery 74760412 Bolt Hex Head 1/4-20 x 3/4 186491 Box Battery 176138 Switch Interlock Push-In 183759 Harness Socket Light w/4152J 4152J Bulb Light 400253 Cable Battery 412894 Cable Starter 175158... -
Page 6: Chassis
TRACTOR - MODEL NO. PB23H48YT (96042010900), PRODUCT NO. 960 42 01-09 CHASSIS Chassis-tex_elite-sv-pro_23... -
Page 7: Chassis
TRACTOR - MODEL NO. PB23H48YT (96042010900), PRODUCT NO. 960 42 01-09 CHASSIS PART DESCRIPTION 194263 Drawbar 199649X428 Dash 425404X421 Hood 188264X599 Lens Grille LH 430395X428 Grille 188263X599 Lens Grille RH 196125 Plate Engine 17060512 Screw 5/16-18 x 3/4 414878X421 Fender 73680500 Nut Lock 5/16-18 17490508... -
Page 8: Drive
TRACTOR - MODEL NO. PB23H48YT (96042010900), PRODUCT NO. 960 42 01-09 DRIVE drive-tex_K46_pedal_28... -
Page 9: Drive
TRACTOR - MODEL NO. PB23H48YT (96042010900), PRODUCT NO. 960 42 01-09 DRIVE PART PART DESCRIPTION DESCRIPTION 72110616 Bolt - - - - - - Transaxle, Tufftorq K46BT (Order 137057 Spacer Axle Parts from Transaxle Manufacturer) 198403X505 Handle Parking Brake 123583X 72110622 Bolt 19131316... -
Page 10: Engine
TRACTOR - MODEL NO. PB23H48YT (96042010900), PRODUCT NO. 960 42 01-09 ENGINE SPARK ARRESTER KIT engine-tex_bs-2cyl_53... -
Page 11: Engine
TRACTOR - MODEL NO. PB23H48YT (96042010900), PRODUCT NO. 960 42 01-09 ENGINE PART DESCRIPTION - - - - - - Engine Briggs Model No. 445577-1187-B1 149723 Muffler 194320 Keeper Belt Engine 400008 Clutch Electric 405097 Pulley Engine 400021 Tank Fuel 3.0 430218 Cap Asm 421473X428... - Page 12 TRACTOR - MODEL NO. PB23H48YT (96042010900), PRODUCT NO. 960 42 01-09 STEERING ASSEMBLY 53 8 steering-tex_LEGND2_6...
-
Page 13: Steering
TRACTOR - MODEL NO. PB23H48YT (96042010900), PRODUCT NO. 960 42 01-09 STEERING ASSEMBLY PART DESCRIPTION 414851X421 Wheel, Steering 195968 Axle Asm., Front 403087 Spindle Asm., LH 403088 Spindle Asm., RH 6266H Bearing, Race Thrust Harden 121748X Washer 25/32 x 1-5/8 x 16 Ga. 12000029 Ring, Klip #T5304-75 121232X... -
Page 14: Seat
TRACTOR - MODEL NO. PB23H48YT (96042010900), PRODUCT NO. 960 42 01-09 SEAT ASSEMBLY seat-tex_6.5SL_1_r1 PART PART DESCRIPTION DESCRIPTION 73800500 Nut, Lock 5/16-18 unc 406623 Seat 180166 Bracket Pivot Fender 197661 Handle Slide Seat 140675 Strap, Asm Fender 198200 Spring Latch Seat 74760612 Bolt Fin Hex 3/8-16 unc x 3/4 73800600... -
Page 15: Decals
TRACTOR - MODEL NO. PB23H48YT (96042010900), PRODUCT NO. 960 42 01-09 DECALS PART PART DESCRIPTION DESCRIPTION 426685 Decal, Replacement 430113 Decal, Hood 430255 Decal, Fender 430111 Decal, Steering Wheel 178455 Decal, Mower Caution 430343 Decal, Side Panel 400981X428 Pad, Footrest, RH 430112 Decal, Fender 408841... -
Page 16: Mower Deck
TRACTOR - MODEL NO. PB23H48YT (96042010900), PRODUCT NO. 960 42 01-09 MOWER DECK 48_Deck_tex_22_r2... - Page 17 TRACTOR - MODEL NO. PB23H48YT (96042010900), PRODUCT NO. 960 42 01-09 MOWER DECK KEY PART KEY PART DESCRIPTION DESCRIPTION 193197 Pulley Idler 197216 Deck Weldment Mower 73900600 Nut, Lock Flg. 3/8-16 unc 178345 Plug Hole Mandrel 17490636 Screw TT 3/8-16 x 2-1/4 197248 Cover Mandrel LH 197379...
-
Page 18: Mower Lift
TRACTOR - MODEL NO. PB23H48YT (96042010900), PRODUCT NO. 960 42 01-09 MOWER LIFT lift-tex_3 PART PART DESCRIPTION DESCRIPTION 422027 Shaft Asm., Lift 195181 Link Asm. Lift Rear 195231 Lever Asm., Lift RH 17000612 Screw 3/8-16 x .75 R.Z 196492X428 Grip, Lever 195264 Link Lift Susp. -
Page 19: Warranty
LIMITED WARRANTY The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materi- als and work man ship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due to materials or workmanship.
