IMPORTANT MANUAL
REPAIR PARTS MANUAL
MODEL:
PB26H54YT

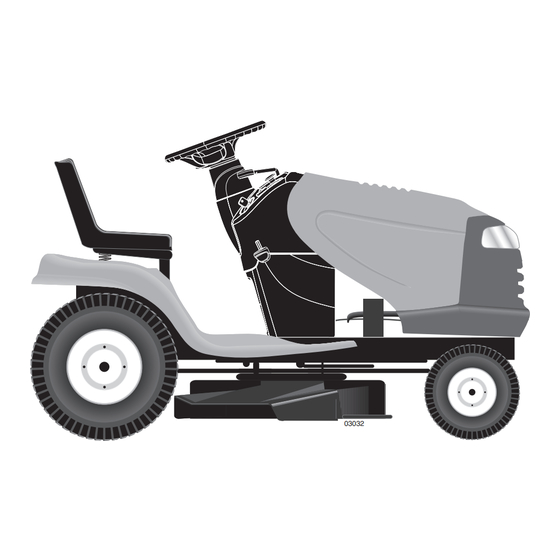

LAWN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulan-pro.com
532 44 11-70
12.20.10 BAD
DO NOT THROW AWAY
03032
WARNING:
Read this Man u al and follow all Warnings
and Safety Instructions. Fail ure to do so
can re sult in serious in ju ry.
Printed in the U.S.A.
Advertisement
Table of Contents
Related Manuals for Poulan Pro Pro PB26H54YT
Summary of Contents for Poulan Pro Pro PB26H54YT
- Page 1 Read this Man u al and follow all Warnings and Safety Instructions. Fail ure to do so PB26H54YT can re sult in serious in ju ry. LAWN TRACTOR ALWAYS WEAR EYE PROTECTION DURING OPERATION Visit our website: www.poulan-pro.com 532 44 11-70 12.20.10 BAD Printed in the U.S.A.
-
Page 2: Table Of Contents
HOW TO USE THIS MANUAL This manual is designed to provide the customer with a means to identify the parts on his/her tractor when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore, it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some hardware and parts are drawn larger in order to more readily identify them. -
Page 3: Schematic
TRACTOR - - MODEL NO. PB26H54YT (96042012700), PRODUCT NO. 960 42 01-27 SCHEMATIC SCH12 BATTERY SOLENOID STARTER FUSE AMMETER BLACK (OPTIONAL) ELECTRIC CLUTCH WHITE PTO SWITCH BLACK WHITE (DISENGAGED) WHITE BLACK GRAY CLUTCH/BRAKE (PEDAL UP) REVERSE SWITCH (NOT IN REVERSE) BLACK BLACK BLACK... -
Page 4: Electrical
TRACTOR - - MODEL NO. PB26H54YT (96042012700), PRODUCT NO. 960 42 01-27 ELECTRICAL T11S With 12V Outlet Option With Service Minder Option... - Page 5 TRACTOR - - MODEL NO. PB26H54YT (96042012700), PRODUCT NO. 960 42 01-27 ELECTRICAL PART DESCRIPTION 532 16 34-65 Battery 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4 532 18 64-91 Box Battery 532 17 61-38 Switch Interlock Push-In 532 18 37-59 Harness Socket Light w/4152J 532 00 41-52 Bulb Light 532 40 02-53 Cable Battery 532 41 28-94 Cable Starter...
-
Page 6: Chassis
TRACTOR - - MODEL NO. PB26H54YT (96042012700), PRODUCT NO. 960 42 01-27 CHASSIS chassis-tex_elite-husq_6... -
Page 7: Chassis
TRACTOR - - MODEL NO. PB26H54YT (96042012700), PRODUCT NO. 960 42 01-27 CHASSIS PART DESCRIPTION 532 43 63-86 Dash 532 43 63-82 Hood 532 18 99-82 Lens Grille LH 532 43 27-78 Grille 532 18 99-81 Lens Grille RH 532 19 61-25 Plate Engine 817 06 05-12 Screw 5/16-18 x 3/4... -
Page 8: Drive
TRACTOR - - MODEL NO. PB26H54YT (96042012700), PRODUCT NO. 960 42 01-27 DRIVE drive-tex_K46_pedal_39_r1... - Page 9 TRACTOR - - MODEL NO. PB26H54YT (96042012700), PRODUCT NO. 960 42 01-27 DRIVE PART PART DESCRIPTION DESCRIPTION 532 13 70-57 Spacer Axle - - - - - - Transaxle, Tufftorq K46BT (Order 532 44 15-04 Handle Parking Brake Parts from Transaxle Manufac- 872 11 06-22 Bolt turer)
-
Page 10: Engine
TRACTOR - - MODEL NO. PB26H54YT (96042012700), PRODUCT NO. 960 42 01-27 ENGINE SPARK ARRESTER KIT engine-tex_bs-2cyl_41... - Page 11 TRACTOR - - MODEL NO. PB26H54YT (96042012700), PRODUCT NO. 960 42 01-27 ENGINE PART DESCRIPTION - - - - - - Engine B&S Model No. 44P777-2448-G1 532 14 97-23 Muffler 532 19 43-20 Keeper Belt Engine 532 40 00-08 Clutch Electric 532 40 50-97 Pulley Engine 532 43 80-80...
-
Page 12: Steering
TRACTOR - - MODEL NO. PB26H54YT (96042012700), PRODUCT NO. 960 42 01-27 STEERING ASSEMBLY steering-tex_Prem2_9 PART PART DESCRIPTION DESCRIPTION 532 42 45-51 Wheel, Steering 819 18 38-12 Washer 9/16 ID x 2-3/8 x 12 Ga. 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf 532 19 59-68 Axle Asm., Front 532 18 89-67... -
Page 13: Seat
TRACTOR - - MODEL NO. PB26H54YT (96042012700), PRODUCT NO. 960 42 01-27 SEAT ASSEMBLY seat-tex_6.5SL_1_r1 PART PART DESCRIPTION DESCRIPTION 873 80 05-00 Nut, Lock 5/16-18 unc 532 40 66-23 Seat 532 18 01-66 Bracket Pivot Fender 532 19 76-61 Handle Slide Seat 532 19 82-00 Spring Latch Seat 532 14 06-75... -
Page 14: Mower Deck
TRACTOR - - MODEL NO. PB26H54YT (96042012700), PRODUCT NO. 960 42 01-27 MOWER DECK... -
Page 15: Mower Deck
TRACTOR - - MODEL NO. PB26H54YT (96042012700), PRODUCT NO. 960 42 01-27 MOWER DECK PART PART DESCRIPTION DESCRIPTION 532 18 73-42 Baffle Right 532 19 56-32 Deck Weldment Mower 532 18 73-44 Baffle Left 532 19 60-66 Cover Mandrel LH 532 18 76-07 Baffle Center 532 19 71-81... -
Page 16: Decals
TRACTOR - - MODEL NO. PB26H54YT (96042012700), PRODUCT NO. 960 42 01-27 DECALS PART PART DESCRIPTION DESCRIPTION 532 43 84-99 Decal, Hood 532 43 84-92 Decal, Fender SD RH 532 17 84-55 Decal, Mower Caution 532 43 84-29 Decal, Replacement 532 44 06-54 Decal, Side Panel 532 43 85-01... -
Page 17: Mower Lift
TRACTOR - - MODEL NO. PB26H54YT (96042012700), PRODUCT NO. 960 42 01-27 MOWER LIFT lift-tex_23 PART PART DESCRIPTION DESCRIPTION 532 42 20-27 Shaft Asm., Lift 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock 532 19 52-31 Lever Asm., Lift RH 532 40 34-07 Link Asm. - Page 18 SERVICE NOTES...
- Page 19 SERVICE NOTES...
-
Page 20: Warranty
LIMITED WARRANTY The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materi- als and work man ship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due to materials or workmanship.
