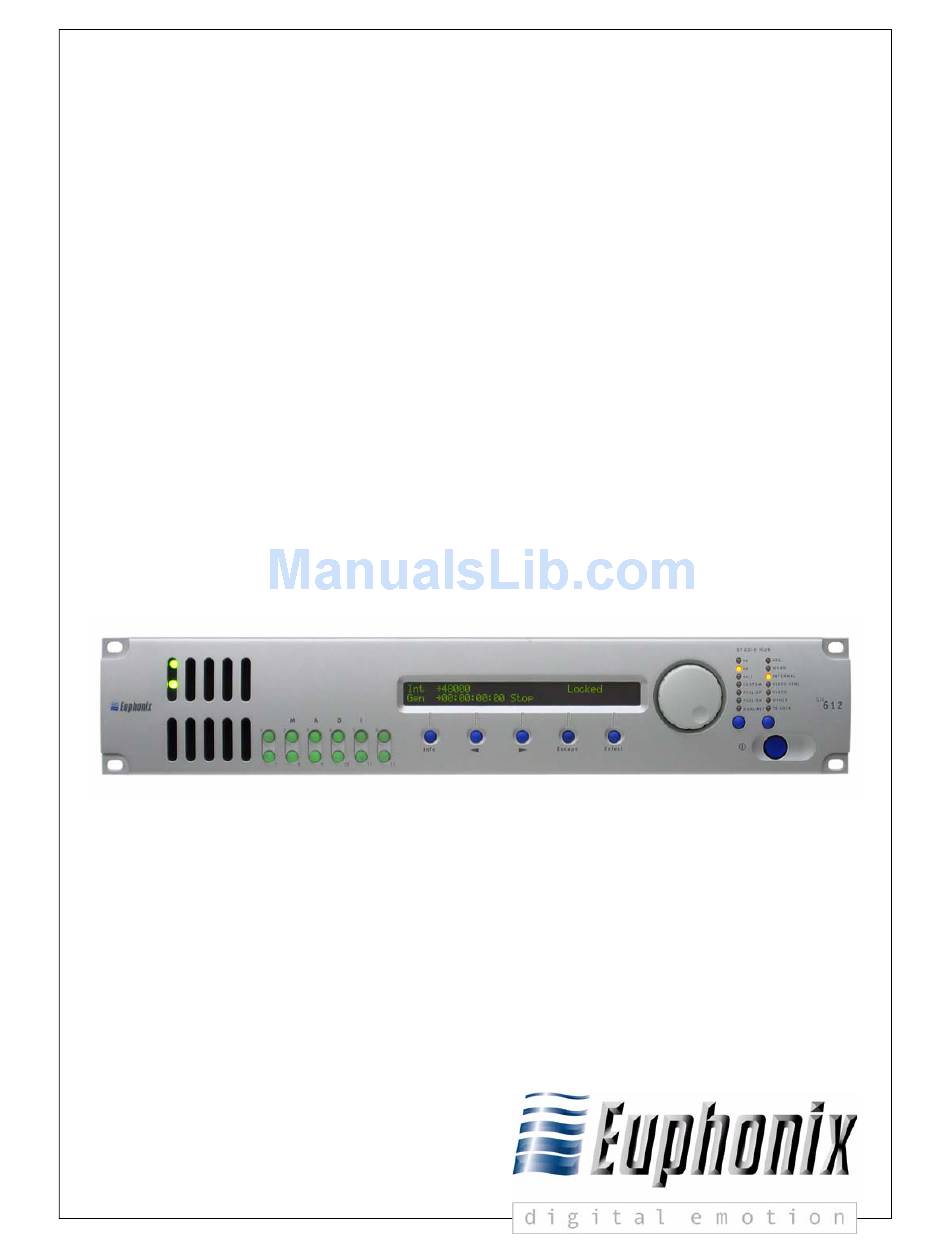

Euphonix SH612 Studio Hub User Guide Table of Contents List of Figures .........................v Chapter 1: Getting Started .....................7 1.1 Introduction to the SH612................7 1.1.1 Features ....................7 1.1.2 Power On Sequence .................8 1.2 Modes of Operation ..................9 1.3 Setting the Control Port ................9 Chapter 2: Front and Rear Panel Interface ............11...
Page 4
Euphonix SH612 Studio Hub User Guide 5.1.1 Quick Setup Menu .................32 5.1.2 Sample Rate Setup Menu...............33 5.1.3 Time Code Setup Menu ..............34 5.1.4 Video Setup Menu .................37 5.1.5 MADI Routing Menu..............39 5.1.6 Utility Menu...................41 5.1.7 Transport ..................42 5.2 SH612 Technical Specifications ..............43...
Euphonix SH612 Studio Hub User Guide List of Figures SH612 Front Panel ......................11 LCD Display ........................11 LCD Menu Display ......................12 Menu Controls on Front Panel ..................12 Sample Rate LEDs and Buttons ..................14 MADI Buttons ........................15 SH612 Rear Panel ......................16 Configuration and Patches tab ..................20 Edit Current Configuration tab ..................21...
Technical Overview document in your manual bind- The SH612 can also operate as a standalone MADI router and as an ES Control capable router for use with video routing systems. For these applications, all functions can be controlled from the front panel, or through the standalone Route Manager application or ES Control capable video router.
The SH612 routes digital audio via 12 MADI In and 12 MADI Out ports, each with the capacity to receive or transmit up to 56 channels (up to 24-bit, 48 kHz). For sample rates exceeding 50 kHz, each MADI channel can carry only 28 digital audio channels.
- see the table of contents. Setting the Control Port For both modes, the SH612 must be set to read control messages from its female DE-9 Control port (RS-422 serial), instead of its IEEE-1394 ports (previously used for the now-discontinued Euphonix R-1 recorder).
Page 10
Euphonix SH612 Studio Hub User Guide Getting Started...
Euphonix SH612 Studio Hub User Guide Front and Rear Panel Interface Chapter 2: Front and Rear Panel Interface Front Panel STUDIO HUB WORD 44.1 INTERNAL CUSTOM VIDEO SYNC Word 48000 0.000% Locked PULL UP VIDEO 00:01:52:43 Jam Cont PULL DOWN...
Euphonix SH612 Studio Hub User Guide Front and Rear Panel Interface Indicates submenus are available for scrolling with Menu name arrows or SpinKnob Main Menu – Use Spin Knob to Select â ßà Time Code Setup Menu Submenu name, parameter, or value...
Euphonix SH612 Studio Hub User Guide Front and Rear Panel Interface Select Press the Select key to: • enter the menu system from the status display; • display a submenu or parameter from a list; • display parameter values; •...
SH612 or the signals may drift. The SH612’s response to drift varies depending on the mode. Drift is allowed in the Jam Continuous (1% only) and Jam Once modes. It is only in either of these two modes that the Dual Ref LED lights.
Each button corresponds to the physical MADI input/output port of the same number. The SH612 software detects the physical MADI ports connected upon startup and con- tinuously monitors all MADI input ports to detect valid MADI signals. If the SH612 detects MADI input port activity, it lights the corresponding key (bright-solid). If MADI signal activity is not detected or is not valid, the key lights dim-solid.
Euphonix SH612 Studio Hub User Guide Front and Rear Panel Interface Rear Panel Connectors VID-SYNC VIDEO VIDEO IEEE1394 WORD Figure 2-7 SH612 Rear Panel AES Sync In (female XLR): Connect to house AES Sync source. AES Sync Out Ports (four male XLR): Outputs AES Sync. These outputs are for convenience only.
Page 17
IEEE 1394 ports (6-pin): Use this IEEE 1394 high-speed communication protocol for software control of the SH612 from the discontinued R-1 recorder (not for System 5 or Max Air. Serial MC RS422 (female DE-9): Input port for Machine Control signals. Not used in System 5/Max Air.
This is the standard mode of operation for the Studio Hub. Connections If you have not done so, first check that the SH612’s Control port is set to RS422. See page 9. Then to enable control of the SH612 from the configuration PC: 1.
Euphonix SH612 Studio Hub User Guide Standalone MADI Routing Figure 3-1 Configuration and Patches tab • New: creates a new blank patch. • Recall: activates the selected patch. • Store: stores the patch settings. Select the Edit Current Configuration tab. The following buttons are available: •...
Euphonix SH612 Studio Hub User Guide Standalone MADI Routing Figure 3-2 Edit Current Configuration tab Under the heading MADI Devices in System, make sure all the system components are listed and that the Studio Hub is the correct size. Remove unwanted components by highlighting them and clicking the Remove Device button.
Euphonix SH612 Studio Hub User Guide Standalone MADI Routing Example: 1. Under Studio Hub Output Connections, select MADI Out #3. 2. Under MADI Devices in System, navigate to and select the MADI In #1 of the Audio Deck #1. Click the Declare Connection button to solidify the connection.
Euphonix SH612 Studio Hub User Guide Standalone MADI Routing To create a route: 1. Select the Signal Source device to Route from. The device’s outputs are displayed in the window below. Select the Signal Destination device to route to. The device’s inputs are displayed in the window below.
Page 24
Euphonix SH612 Studio Hub User Guide Standalone MADI Routing...
For the SH612 to receive and acknowledge commands from the VM3000, the Control Port must be set to RS422 (see page 9 for instructions). Make sure to cycle the SH612’s power off/on after resetting the Control Port.
The VM3000 has eight Serial ports configured in pairs, 1/2, 3/4, 5/6, and 7/8. 4. Delegate one pair for the SH612. Do not connect anything to the other port in that pair except another SH612. Jupiter Configuration This section assumes you are familiar using the Jupiter Network Suite and Jupiter Con- figurator applications to edit Jupiter configuration sets.
56 connections per MADI port instead of the 64 allowed in the MADI specification. The SH612 has 12 MADI ports so there are 56 * 12 = 672 ins/outs avail- able. Since the Jupiter assumes 64 per port, this discrepancy must be taken into ac- count when setting up switcher inputs/outputs.
Varispeed operation, and the Jupiter assumes it carries the full 64 channels. Thus, make sure to enter the physical inputs properly on the Jupiter when configuring inputs on the SH612’s MADI ports: 064 for the first input of MADI port 2, 128 for the first input of MADI port 3, etc.
The Switcher Output dialog opens. Figure 4-4 Jupiter Switcher Output dialog 4. Enter each SH612 output device on a separate row. For each output, enter the physical outputs for each level corresponding to their outputs on the SH612. Note again that outputs start at 000 so output 1 on MADI port 1 is output 000 on the Jupiter and output 1 on MADI port 2 is output 064 on the Jupiter.
Euphonix SH612 Studio Hub User Guide Chapter 5: Menu Reference and Technical Specifications Menu Reference All menus are depicted but only those parameters that require description are discussed in the submenu sections. The Main Menu’s submenus are listed in this section. Each submenu contains parameters, values, and possibly additional submenus.
Euphonix SH612 Studio Hub User Guide Menu Reference and Technical Specifications 5.1.1 Quick Setup Menu The Quick Setup menu has the most commonly used parameters gathered in one menu for quick and easy access. Refer to the individual menus for explanation of each parameter.
This parameter can also be set in the Quick Setup menu. Word Clock In Oversample This feature allows a higher resolution Word Clock input to the SH612. The Word Clock In Oversample value should match the incoming signal. The default is 1 which does not alter the incoming signal and assumes a normal Word Clock sample rate.
Euphonix SH612 Studio Hub User Guide Menu Reference and Technical Specifications 5.1.3 Time Code Setup Menu Time Code Setup Menu Select Select Time Code Source VITC Select Time Code 29.97 29.97 drop 30 drop Frame Rate Select Time Code External...
Page 35
Time Code Offset Time Code Offset is only relevant when the SH612 is slaved to an external device or an external device is slaved via LTC from the R-1. The R-1 does not output offset Time- code. The Time Code Offset can be positive or negative, and range from 1 frame to 23:59:59:29.
Page 36
Time Code Freewheel Duration setting. If the time code source re- sumes before the Time Code Freewheel Duration, the SH612 checks to see if the dif- ference between the current time code source frame value and the time code output frame value is within 1% deviation.
Euphonix SH612 Studio Hub User Guide Menu Reference and Technical Specifications 5.1.4 Video Setup Menu Video Setup Menu Select Select Video Field Rate 50 Hz 59.94 Hz 60 Hz Select Video Jam Sync Select VITC Set Read Auto Scan Read Line #...
Page 38
Menu Reference and Technical Specifications Video Jam Sync On - The SH612 automatically jams the start of the LTC and MTC output frames to be aligned to line 5, field 0 of the blackburst, composite video, or VITC signal. Off - The time code outputs are not frame-edge aligned with line 5 field 0 of the video source.
Euphonix SH612 Studio Hub User Guide Menu Reference and Technical Specifications 5.1.5 MADI Routing Menu MADI Setup Menu Select MADI Port Specify each MADI port for Audio Deck (R-1) or non-Audio Deck (System 5) connection Definitions Edit Route Implemented only for SH612s configured for the R-1...
Page 40
Press Select to finalize the route. NOTE: The SH612 does not provide visual confirmation of the active routes so you must check that the route was correct by looking at the meters on the R-1 or System 5 console. MADI Port Definitions This parameter can specify each MADI port for AudioDeck (R-1) or non-AudioDeck (System 5) connections.
Stores up to 20 MADI Routes Setup Select Recall User Routing Factory Routing Matrices Matrices Setup Select Control RS422 1394 Port Select Varispeed Percent Semitones Display Figure 5-7 Utility Menu Store Setup Stores all SH612 parameters to one of 20 locations.
Recalls all parameters from one of 20 locations. Control Port This must be set correctly to control the SH612 from the R-1 recorder or System 5 con- sole. The SH612 can be controlled from System 5 from the RS-422 Control port (serial 9-pin connector) or from the R-1 from the IEEE-1394 port.
