Euphonix SH612
Studio Hub User Guide
1
7
Euphonix Inc.
220 Portage Ave.
Palo Alto, California 94306
Phone:
650-855-0400
Fax:
650-855-0410
Web:
http://www.euphonix.com
e-mail:
info@euphonix.com
Part Number: 840-07577-03
SH612 Version: 3.06
S5 Version: 2.5
R-1 Version: 3.0
Word
LTC
M A D I
2
3
4
5
6
Info
8
9
10
11
12
48000
0.000% Locked
00:01:52:43 Jam Cont
Select
Escape
STUDIO HUB
96
AES
48
WORD
44.1
INTERNAL
CUSTOM
VIDEO SYNC
SH
PULL UP
VIDEO
612
OTHER
PULL DOWN
DUAL REF
TC LOCK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SH612 and is the answer not in the manual?

Questions and answers

Related Manuals for Euphonix SH612

Summary of Contents for Euphonix SH612

  • Page 1 Euphonix SH612 Studio Hub User Guide Part Number: 840-07577-03 SH612 Version: 3.06 S5 Version: 2.5 R-1 Version: 3.0 STUDIO HUB WORD 44.1 INTERNAL CUSTOM Word 48000 0.000% Locked VIDEO SYNC PULL UP VIDEO 00:01:52:43 Jam Cont OTHER PULL DOWN M A D I...
  • Page 2 System 5, S-5, PatchNet, eMix, EuCon, R-1, Audio Deck, Studio Hub are trademarks of Euphonix Inc. ©2001 Euphonix Inc. All rights reserved worldwide. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any...

  • Page 3: Table Of Contents

    Euphonix SH612 Studio Hub User Guide Table of Contents List of Figures ........................iv Chapter 1: Getting Started ....................5 1.1 Introduction to the SH612................5 1.1.1 Features ....................5 1.1.2 Power On Sequence .................6 1.2 MADI Connections for the R-1 ..............6 1.3 AES Sync .....................7 Chapter 2: Front and Rear Panel Interface ..............11...

  • Page 4: List Of Figures

    Euphonix SH612 Studio Hub User Guide List of Figures AES sync connections for the SH612 .................7 SH612 Front Panel ......................11 LCD Display ........................11 LCD Menu Display ......................12 Menu Controls on Front Panel ..................12 Sample Rate LEDs and Buttons ..................14 MADI Buttons ........................15 SH612 Rear Panel ......................16...

  • Page 5: Chapter 1: Getting Started

    System 5 and R-1 configurations. Since each SH612 is configured and in- stalled by Euphonix for use with the R-1 and/or System 5, you will not often need to modify most of its parameters. This User Guide provides a technical reference for the SH612 but will not cover system hookup in general (see the System 5 Technical Over- view in your manual binder).

  • Page 6: Power On Sequence

    Euphonix SH612 Studio Hub User Guide Getting Started Synchronization signals are distributed via four AES Sync (AES/EBU), Word Clock, video, or MTC outputs to System 5 or R-1 components. The SH612 can generate or lock to Time code, or convert between different formats. All standard time code rates are supported: •...

  • Page 7: Aes Sync

    Euphonix SH612 Studio Hub User Guide Getting Started AES Sync AES Sync signals originate from the SH612. AES Sync signals can be looped a maximum of four times. If additional AES signals are required, use an AES distribution amplifier. The four AES sync outputs on the SH612 deliver AES sync to: •...
  • Page 8 The Word Clock output of the SH612 can also be used to sync to an external device or group of devices using daisy chain cabling. NOTE: The AES Thru port on the Euphonix converters is always active. If daisy chained de- vices are powered off, downstream devices will lose sync.
  • Page 9 Euphonix SH612 Studio Hub User Guide Getting Started...

  • Page 11: Chapter 2: Front And Rear Panel Interface

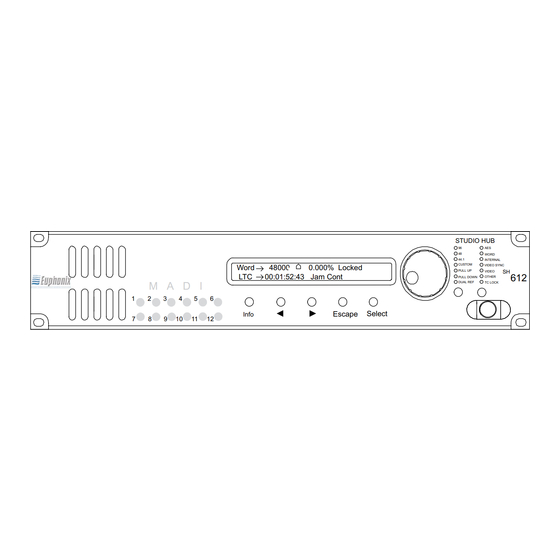

    Euphonix SH612 Studio Hub User Guide Front and Rear Panel Interface Chapter 2: Front and Rear Panel Interface Front Panel STUDIO HUB WORD 44.1 INTERNAL CUSTOM Word 48000 0.000% Locked VIDEO SYNC PULL UP VIDEO 00:01:52:43 Jam Cont PULL DOWN...

  • Page 12: Menu Controls

    Euphonix SH612 Studio Hub User Guide Front and Rear Panel Interface Indicates submenus are available for scrolling with Menu name arrows or SpinKnob Main Menu – Use Spin Knob to Select Time Code Setup Menu â ßà Submenu name, parameter, or value...

  • Page 13: Sample Rate Controls/Indicators

    Euphonix SH612 Studio Hub User Guide Front and Rear Panel Interface Select Press the Select key to: • enter the menu system from the status display; • display a submenu or parameter from a list; • display parameter values; •...

  • Page 14: Sample Rate Leds And Buttons

    Euphonix SH612 Studio Hub User Guide Front and Rear Panel Interface Sample Rate Key Press the Sample Rate key to display the Sample Rate menu. Use the SpinKnob or arrow keys to highlight the desired Sample Rate setting. Press Select to activate the displayed value and revert to Status Display mode.

  • Page 15: Madi Indicators

    Euphonix SH612 Studio Hub User Guide Front and Rear Panel Interface 2.1.4 MADI Indicators Twelve back-lit buttons indicate the MADI input channel status. M A D I Figure 2-6 MADI Buttons Each button corresponds to the physical MADI input/output port of the same number.

  • Page 16: Rear Panel Connectors

    Euphonix SH612 Studio Hub User Guide Front and Rear Panel Interface Rear Panel Connectors SH 612 MTC/MMC SERIAL MC THRU RS-422 THRU WORD VID-SYNC VIDEO CONTROL IEEE 1394 AES/SYNC Figure 2-7 SH612 Rear Panel AES Sync In (female XLR): Connect to house AES Sync source.
  • Page 17 Euphonix SH612 Studio Hub User Guide Front and Rear Panel Interface Control (9-pin DIN): Use this RS422 port for software control of the SH612 from System 5 (but not for the R-1). IEEE 1394 ports (3): Use this IEEE 1394 high-speed communication protocol for soft- ware control of the SH612 from the R-1 (but not for System 5).

  • Page 19: Chapter 3: Menu Reference And Technical Specifications

    Euphonix SH612 Studio Hub User Guide Chapter 3: Menu Reference and Technical Specifications Menu Reference All menus are depicted but only those parameters that require description are discussed in the submenu sections. The Main Menu’s submenus are listed in this section. Each submenu contains parameters, values, and possibly additional submenus.

  • Page 20: Quick Setup Menu

    Euphonix SH612 Studio Hub User Guide Menu Reference and Technical Specifications 3.1.1 Quick Setup Menu The Quick Setup menu has the most commonly used parameters gathered in one menu for quick and easy access. Refer to the individual menus for explanation of each parameter.

  • Page 21: Sample Rate Setup Menu

    Euphonix SH612 Studio Hub User Guide Menu Reference and Technical Specifications 3.1.2 Sample Rate Setup Menu Sample Rate Setup Menu Select Select 100000 Hz Sample Rate Word Clock Internal Video Sync Video TC Source Source 96096 Hz NTSC 95904 Hz...

  • Page 22: Time Code Setup Menu

    Euphonix SH612 Studio Hub User Guide Menu Reference and Technical Specifications 3.1.3 Time Code Setup Menu Time Code Setup Menu Select Select Time Code Source VITC Select Time Code 29.97 29.97 drop 30 drop Frame Rate Select Time Code External...
  • Page 23 Euphonix SH612 Studio Hub User Guide Menu Reference and Technical Specifications Time Code Mode The SH612 has three time code outputs: VITC, LTC, MTC. The time code outputs al- ways represent the current time of the SH612. Generate - This is the default mode for the SH612. Time code is internally generated, routed to the time code outputs, and sample-rate-resolved.
  • Page 24 Euphonix SH612 Studio Hub User Guide Menu Reference and Technical Specifications Time Code Free Wheel Duration When the incoming time code signal is interrupted, the SH612 continues to generate time code while it checks for the resumption of incoming time code within the period specified in the Time Code Freewheel Duration setting.

  • Page 25: Video Setup Menu

    Euphonix SH612 Studio Hub User Guide Menu Reference and Technical Specifications 3.1.4 Video Setup Menu Video Setup Menu Select Select Video Field Rate 50 Hz 59.94 Hz 60 Hz Select Video Jam Sync Select VITC Set Read Auto Scan Read Line #...
  • Page 26 Euphonix SH612 Studio Hub User Guide Menu Reference and Technical Specifications Video Jam Sync On - The SH612 automatically jams the start of the LTC and MTC output frames to be aligned to line 5, field 0 of the blackburst, composite video, or VITC signal.

  • Page 27: Madi Routing Menu

    Euphonix SH612 Studio Hub User Guide Menu Reference and Technical Specifications 3.1.5 MADI Routing Menu MADI Setup Menu Select MADI Port Specify each MADI port for Audio Deck (R-1) or non-Audio Deck (System 5) connection Definitions Edit Route Implemented only for SH612s configured for the R-1...
  • Page 28 Euphonix SH612 Studio Hub User Guide Menu Reference and Technical Specifications To create a route: 1. Press the MADI port button corresponding to the port to route to or from. The Add Route submenu appears displaying the input and output ports and channels.

  • Page 29: Utility Menu

    Euphonix SH612 Studio Hub User Guide Menu Reference and Technical Specifications Recall Routing Matrix Recalls stored routes. The R-1 default route for sample rates in the range 32–50 kHz is 24 / 144 Track R-1 [56]; for sample rates over 50 kHz, R-1 24 / 48 / 96 Track [28].

  • Page 30: Transport

    Euphonix SH612 Studio Hub User Guide Menu Reference and Technical Specifications Recall Setup Recalls all parameters from one of 20 locations. Control Port This must be set correctly to control the SH612 from the R-1 recorder or System 5 con- sole.

  • Page 31: Sh612 Technical Specifications

    Euphonix SH612 Studio Hub User Guide Menu Reference and Technical Specifications SH612 Technical Specifications SH612 Technical Specifications Synchronization Inputs Word Clock, AES, Internal, NTSC/PAL blackburst and composite video, Time Code Word Clock 1 BNC; 1x, 2x, 128x, and 256x Oversample Rate 1 female XLR 44.1, 48, 96 kHz ±10 ppm...
