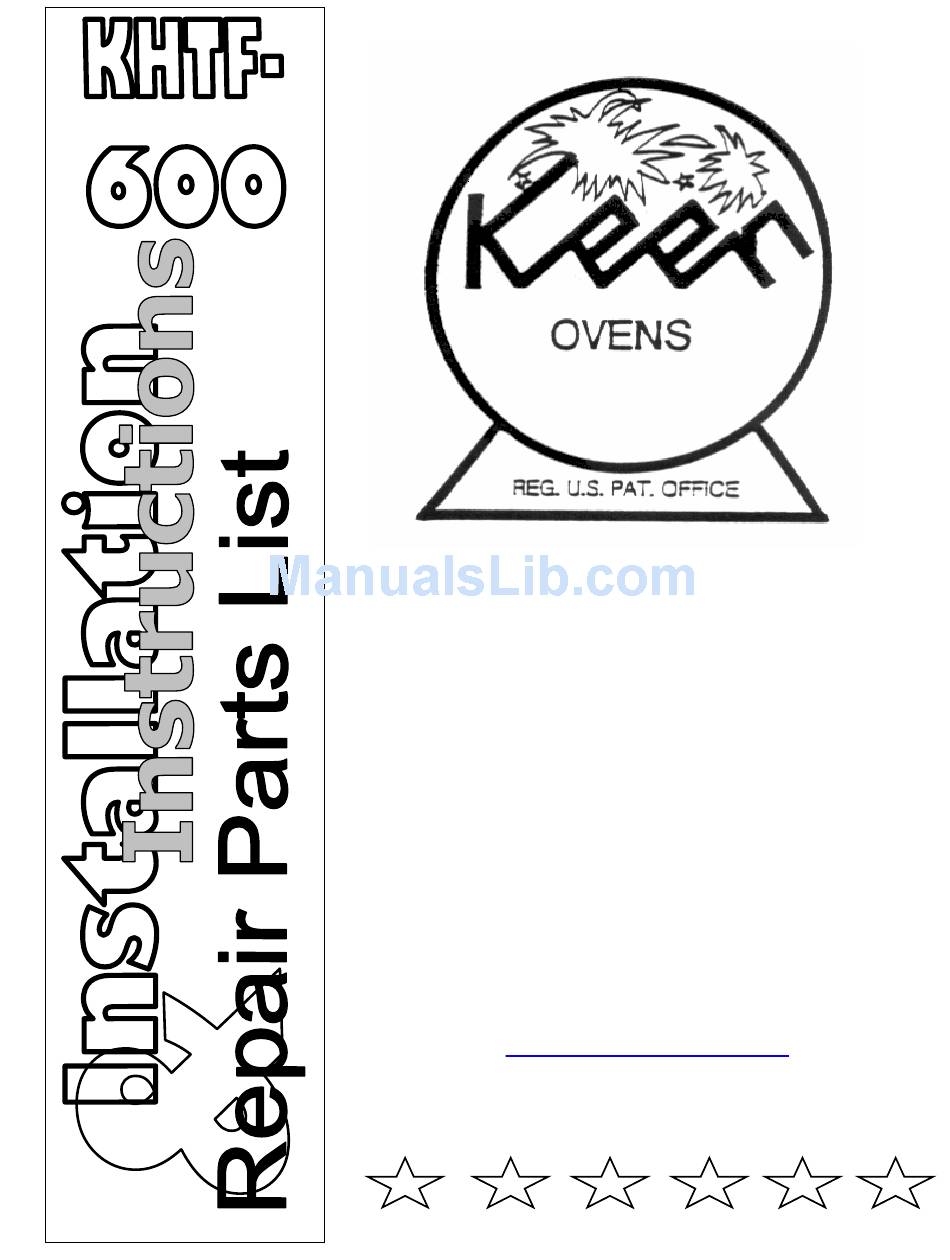

- Page 1 Henkel, Inc. P.O. Box 1322 Hammond, LA 70404 (985) 345-2171 www.keenovens.com...
-
Page 2: Specifications
Installation Instructions & Repair Parts List One Year Limited Warranty Henkel, Inc. warrants its products against defects in material and workmanship. Henkel, Inc. will either repair or replace without charge any properly installed product which fails under normal operating conditions within one year from date of installation, provided it is returned to our factory, transportation prepaid, and our inspection determined it to be defective under the terms of this warranty. -
Page 3: General Information
480 V – 1 Set of Elements, 1 Contactor, 1 Transformer General Information The KHTF-600 is the most energy efficient flux oven on the market, using one- third the electricity and one half the stabilizing time. The bottom unloading design and slide valve allows for easy dispensing of flux. -
Page 4: Scheduled Maintenance
See user manual configuration menus. ***CAUTION: DO NOT USE ON D/C POWER SUPPLY!*** Venting The KHTF-600 is designed to vent around the perimeter of the lid while still maintaining temperature. Guide to Storage See the enclosed guide to storage. - Page 5 Check output side of fuse block for proper voltage. If fuses are bad, inspect oven wiring and components for damage. Replace fuses. Check input and output voltages on temperature controller for proper voltage. If input voltage is not present, check wiring. If input voltage is present and there is no output voltage, replace or repair controller.
- Page 6 Element Cover Thermowell Control Elements Changing the Elements Changing the Controller CHANGING THE CONTROLLER 1. Disconnect from the power source and remove cover plate from control box. 2. Tag and remove leads from back of controller. 3. The controller is held in place by mounting brackets on either side of controller. From the rear, loosen mounting bracket screws, remove mounting brackets and slide controller from control box.
- Page 7 ** Please state model number and serial number and specify voltage and wattage when ordering repair parts, spare parts, or accessory parts. All necessary attaching hardware is supplied with each part ordered. (Item numbers refer to pictorial drawings below for repair parts.) Model KHTF-600 Repair Parts List ITEM # QUANTITY DESCRIPTION...
