Henkel Keen K-50 Installation Instructions & Repair Parts List

Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Henkel, Inc.
P.O. Box 1322
Hammond, LA
70404
(985) 345-2171
www.keenovens.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Keen K-50 and is the answer not in the manual?

Questions and answers

Related Manuals for Henkel Keen K-50

Summary of Contents for Henkel Keen K-50

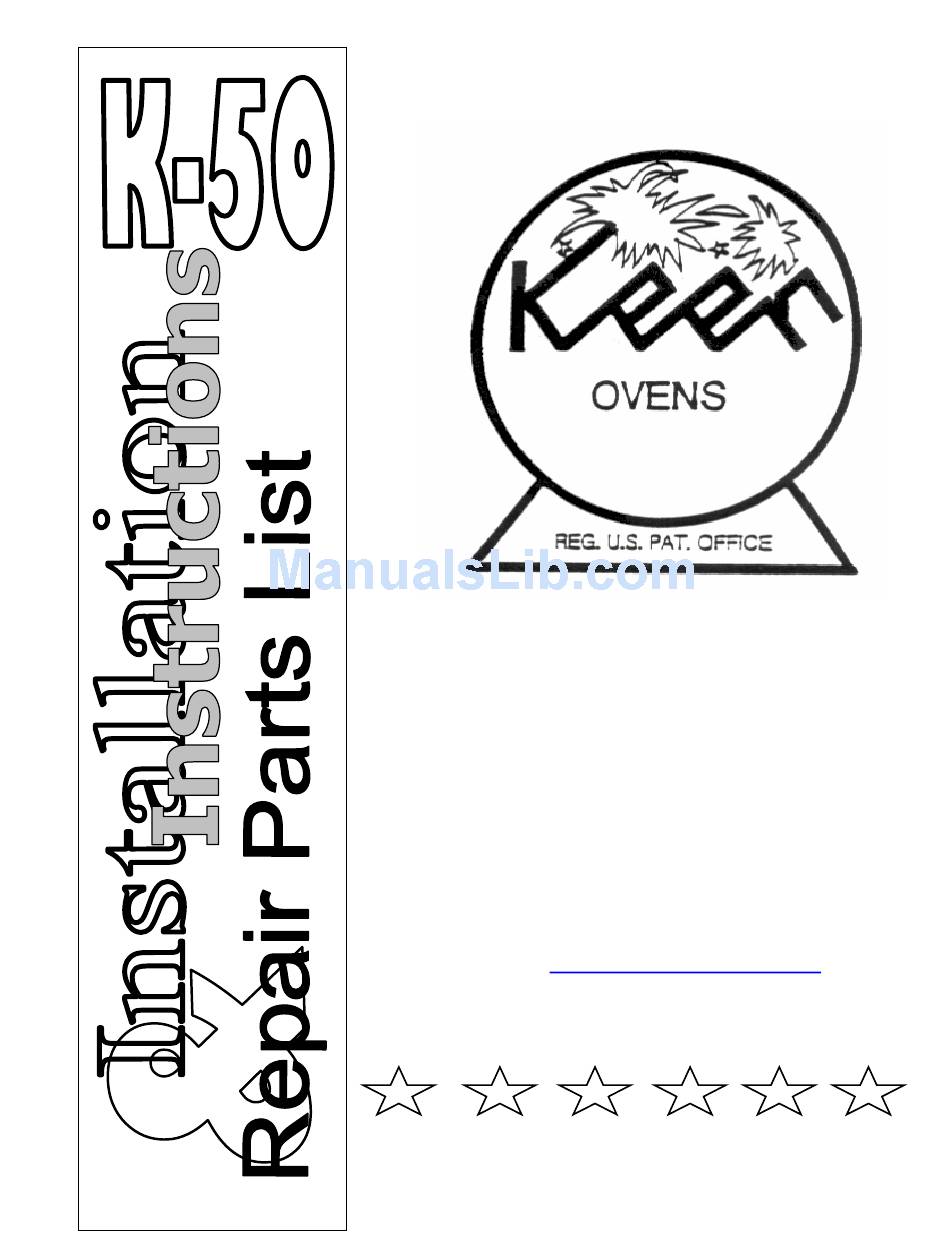

  • Page 1 Henkel, Inc. P.O. Box 1322 Hammond, LA 70404 (985) 345-2171 www.keenovens.com...
  • Page 2 General Information The K-50 Keen oven is a portable unit designed for use in the shop or field. This oven will protect electrodes from moisture during transfer from a holding oven to the job. It is light and easy to carry.

  • Page 3: Specifications

    Keen Ovens Model K-50 Specifications Electrode Capacity 50lbs. 18" rods Volts (Specifiy) 120V or 240V AC/DC Current Draw 1.25 amps Watts 150W Thermostat Factory Preset/Field Adjustable Temperature Preset 275ºF : Range 100ºF-300ºF Insulation 1" Interior Dimensions 6" X 6 X 19" H Net Weight 20lbs.

  • Page 4: Operation

    Functional Description The K-50 oven is a portable oven that holds 50 lbs of 18” electrodes. The oven may be used to transfer welding electrodes from a holding oven to a job site or continuously as a small holding oven.

  • Page 5: Changing The Thermostat

    3. Remove bottom corner and insulation. 4. Disconnect wire terminals on thermostat. 5. Remove old thermostat and replace with new one. 6. Rewire as in diagram 7. Replace insulation and bottom, making sure wires are insulated from element. Model K-50 Wiring Diagram...
  • Page 6 2. Thermostat is readily visible in bottom of oven. Use small screwdriver and turn set screw. (Turning set screw clockwise decreases temperature. Turning set screw counter-clockwise increases temperature. One-fourth [1/4] turn equals approximately 35ºF.) 3. Replace insulation and bottom of oven. Model K-50 Repair Parts List ITEM # QUANTITY DESCRIPTION...
  • Page 7 K-50 ACCESSORIES LIST ** Please state model number and serial number and specify voltage and wattage when ordering repair parts, spare parts, or accessory parts. All necessary attaching hardware is supplied with each part ordered. (Item numbers refer to pictorial drawings below for...
  • Page 8 HENKEL, INC. Phone (985) 345-2171 Fax (985) 345-5653 Manufacturer of KEEN Ovens PO Box 1322 Hammond, Louisiana Quality Since 1923. 70401 Flux and Electrode Stabilizing Guide After Exposure to Moisture a Dry Rod Air Conditioned Sufficient Time to affect Weld Quality...
