Henkel, Inc.
P.O. Box 1322
Hammond, LA
70404
(985) 345-2171
www.keenovens.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Keen K-15R and is the answer not in the manual?

Questions and answers

Related Manuals for Henkel Keen K-15R

Summary of Contents for Henkel Keen K-15R

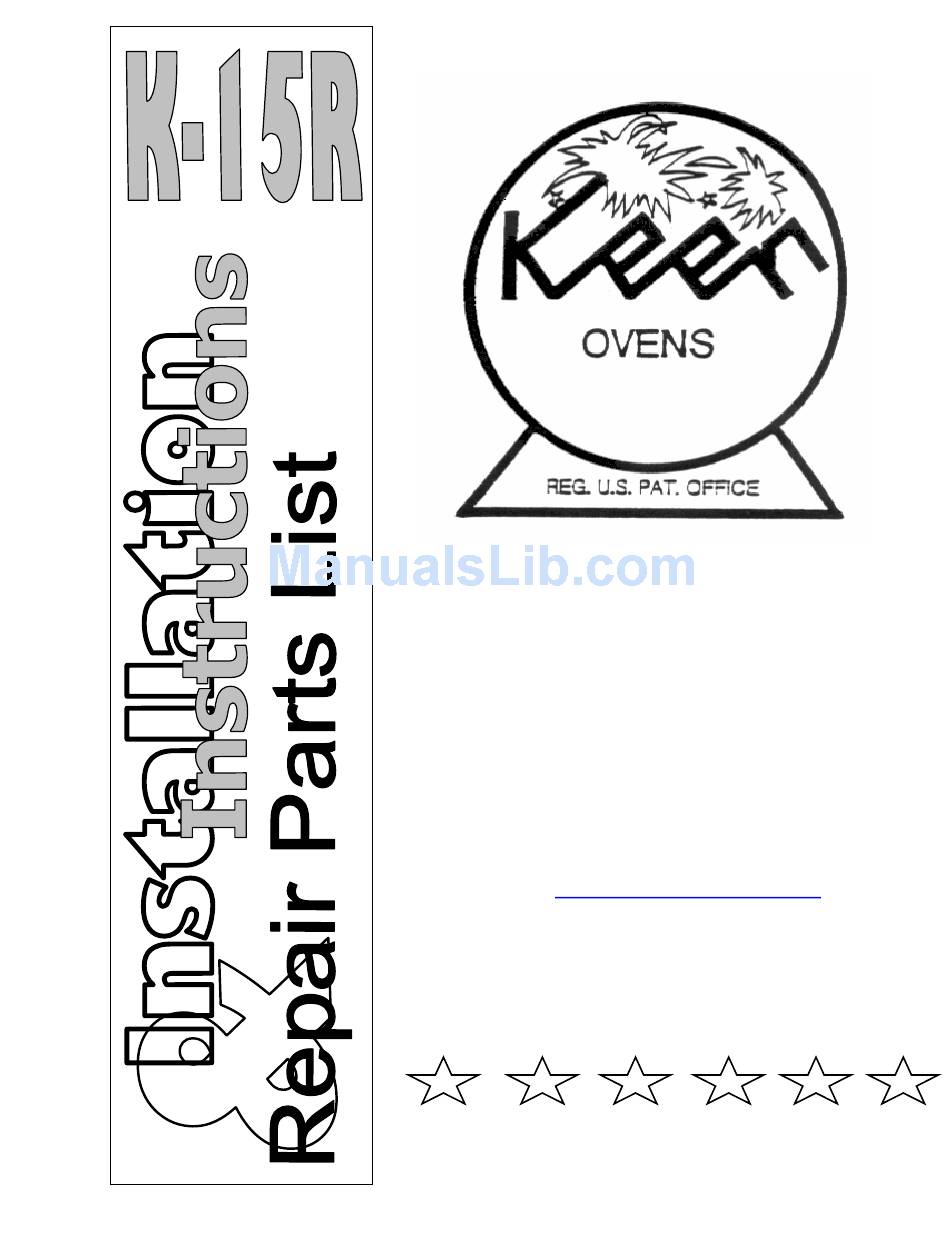

  • Page 1 Henkel, Inc. P.O. Box 1322 Hammond, LA 70404 (985) 345-2171 www.keenovens.com...

  • Page 2: General Information

    Heating Element, Power Cord, Thermostat General Information The K-15R is a portable oven designed for use in the shop or field. These ovens will protect electrodes from moisture during transfer from a holding oven to the job. They are light and easy to carry.

  • Page 3: Specifications

    Keen Ovens Model K-15R Specifications Electrode Capacity 15lbs. 18" rods Volts 120V AC/DC Watts 100W Temperature 100ºF - 300ºF Insulation 1" Interior Dimensions 3.3" D X 19" H Receptical Output 120V - 12AMP Net Weight 13lbs. Shipping Weight 15lbs. Shipping Dimensions 10.5"...

  • Page 4: Functional Description

    In critical situations, contact your electrode manufacturer. Functional Description Model K-15R ovens are portable units. They are not designed for long-term storage. The units hold 15lbs. of 18” electrodes and are used for transfer of electrodes from holding ovens to the job site.

  • Page 5: Troubleshooting

    Troubleshooting The Keen oven model K-15R requires a minimal amount of electrical knowledge to repair if necessary. IF OVEN FAILS TO OPERATE – NO HEAT 1. Check power source. 2. Check power cord continuity. Replace cord assembly if faulty. 3. Check heating element continuity. If no continuity is present, replace element.
  • Page 6 Replace insulation and bottom of oven. K-15R Model K-15R Repair Parts List ITEM # QUANTITY DESCRIPTION PART NUMBER * Elements 120V 301021 W/T 120V 301019 W/T 240V 301020 Power Cord 301100 Chest Handle 430103 Bottom Cover 100103 Thermostat 301024 Rod Lifter Assembly...
  • Page 7 HENKEL, INC. Phone (985) 345-2171 Fax (985) 345-5653 PO Box 1322 Manufacturer o KEEN Ovens Hammond, Louisiana Quality Since 1923. 70401 Flux and Electrode Stabilizing Ovens Dry Rod After Exposure to Moisture a Air Conditioned Type (AWS) Oven Holding Sufficient Time to affect Weld...
