Ryobi RGBV3100 Operator's Manual

2-cycle mulching blower vacuum
Hide thumbs Also See for RGBV3100:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
OPERA TOR "S MANUAL
or

Advertisement

Table of Contents
loading

Related Manuals for Ryobi RGBV3100

Summary of Contents for Ryobi RGBV3100

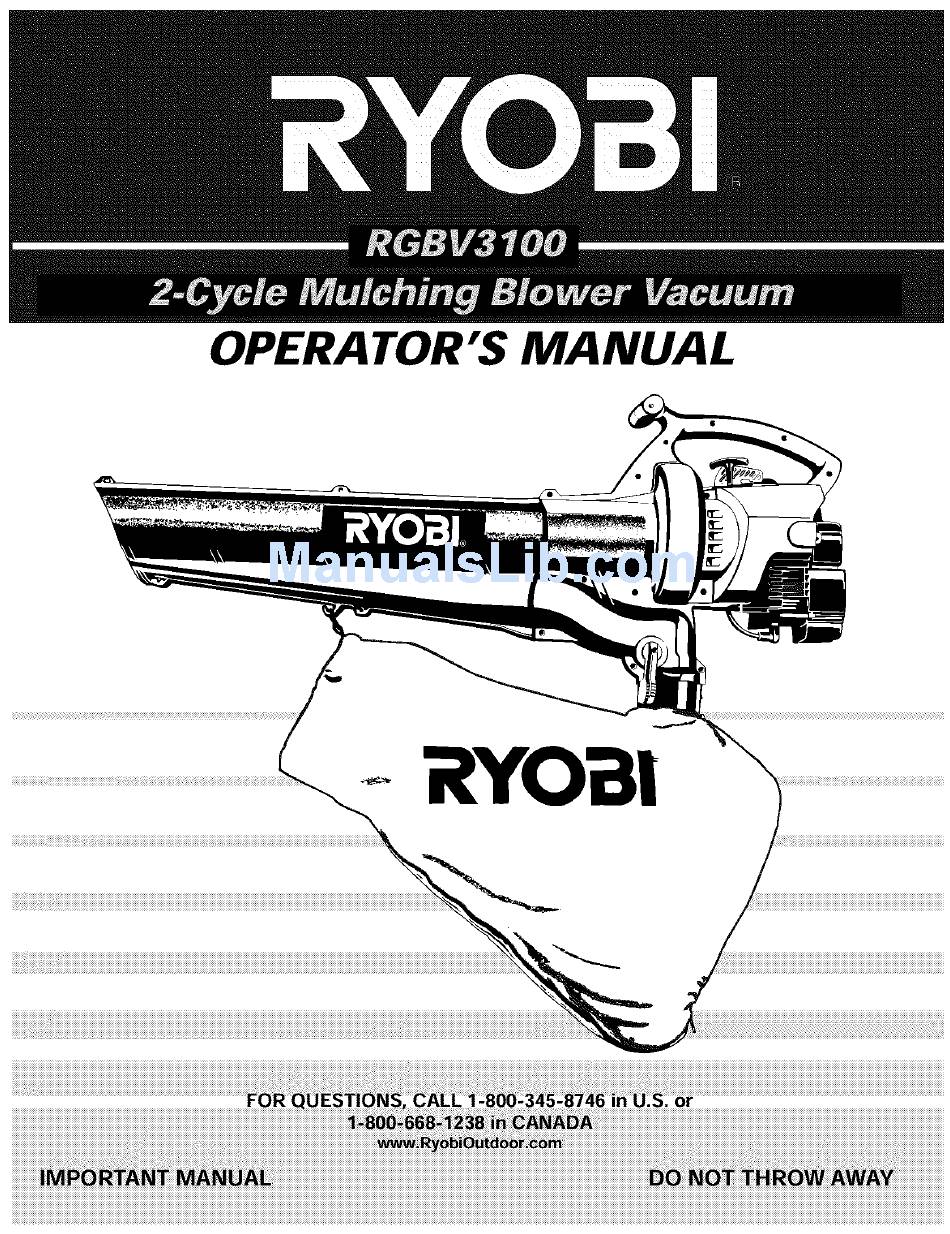

  • Page 1 OPERA TOR "S MANUAL...
  • Page 2 FOR WARRANTY SERVICE. CONTENTS OF CARTON This unit includes the following: Make sure this manual is carefully read and understood Model RGBV3100 Mulching Blower Vacuum before starting or operating this equipment. Blower/Vacuum Tube Vacuum bag THIS PRODUCT IS COVERED BY ONE OR MORE Hardware Pack US PATENTS, OTHER PATENTS PENDING.
  • Page 3 THE ENGINE EXHAUST FROM THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and Washington. All U.S. Forest Land and the state of California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that certain internal combustion engines operated on forest brush and/or grass-covered...
  • Page 4 Thepurpose of safety symbols isto attractyour ANGER: Failure to obey a safety warning wil ! attention to possible dangers. Thesafety symbols, a nd result in serious injury to yourself or to others. theirexplanations, deserve yourcareful attention and Always follow the safety precautions to reduce understanding.
  • Page 5 • Use the unit only in daylight or good artificial light. • Never point the Blower in the direction of people or pets, or in the direction of windows. Always direct the • Keep outside surfaces free from oil and fuel. blowing debris away from people, animals, and windows.
  • Page 6 SAFETY AND INTERNATIONAL SYMBOLS This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information. SYMBOL MEANING SYMBOL MEANING • ON/OFF STOP CONTROL ON / START / RUN Indicates danger, warning, or...
  • Page 7 APPLICATION Throttle Control As a blower; • Cleaning of yards, garages, driveways, porches, patios, around walls, fences, etc. As a vacuum; • Picking up leaves, light debris, etc. Fuel Cap Starter Rope Grip On/Off Stoic Blower/Vacuum Tube Vacuum Inlet Blower Outlet Vacuum Bag Blower/Vacuum Mode _...
  • Page 8 ATTACHING AND REMOVING Removing BLOWER/VACUUM TUBE NOTE: It may be necessary to remove the Blower/Vacuum Tube to clear a blocked tube or impeller. the blower/vacuum tube and vacuum bag mustl ,_WARNING: To avoid serious personal injury, be used when operating this unit stop the engine and allow the impeller to stop Attaching ARNING:...
  • Page 9 ATTACHING AND REMOVING THE VACUUM INSTALLING THE HARNESS Attaching 1. Attach the vacuum bag to the vacuum bag hook on never attempt to start the unit when standing I WARNING: To avoid serious personal injury, the blower/vacuum tube (Fig. 3) and the unit clipped to the shoulder strap.
  • Page 10 OIL AND FUEL MIXING INSTRUCTIONS Thoroughly mix the proper ratio of 2-cycle engine oil with unleaded gasoline in a separate fuel can. Use a 32:1 Old and/or improperly mixed fuel are the main reasons fuel/oil ratio. Do not mix them directly in the engine fuel for the unit not running properly.
  • Page 11 STARTING INSTRUCTIONS WARNING: Avoid accidental starting. Be in the starting position whenever pulling the Position (C) starter rope. The operator and unit must be in a stable position while starting. Full Choke Position (A) Also, Do not set unit on any surface except a clean, hard area while starting.
  • Page 12 STOPPING INSTRUCTIONS NOTE: If the engine floods while trying to start, place the choke control in the RUN (C IH) position. Move Move the throttle control to the idle position (-4111_) the throttle control to the fast position ( _ ) (Fig.
  • Page 13 OPERATING AS A BLOWER Use the blower around buildings and for other normal cleaning (Fig. 15). Start engine. See Starting/Stopping Instructions. Set the blower/vacuum mode change-over lever to the up position (Blower Mode) (Fig. 13). NOTE: Never use the unit with the lever in the halfway position.
  • Page 14 OPERATING AS A VACUUM WARNING: As a vacuum, the unit is designed Start engine. See Starting/Stopping Instructions. to pick up dry material such as leaves, grass, small twigs and bits of paper. To avoid serious Set the blower/vacuum mode change-over lever to personal injury, do not attempt to vacuum wet the down position (Vacuum Mode) (Fig.
  • Page 15 EMPTY THE VACUUM tabs WARNING: To avoid serious personal injury, never unzip or remove the vacuum bag without first turning the unit off. PRESS IN NOTE: Empty the bag after each use to avoid deterioration and obstructing air flow, which will reduce the performance of the vacuum.
  • Page 16 AIR FILTER MAINTENANCE Wash the filter in detergent and water (Fig. 22). Rinse the filter thoroughly. Squeeze out excess water. Removing the Air Filter/Muffler Cover Allow it to dry completely. always turn the unit off and allow it to cool before ARNING: To avoid serious personal injury, ,you clean or perform any maintenance on it.
  • Page 17 SPARK ARRESTOR MAINTENANCE Place exhaust gasket against muffler's back side. Align exhaust gasket bolt holes with bolt holes in Remove air filter/muffler cover. See Removing the muffler. While holding exhaust gasket in place, insert Air Filter/Muffler Cover. bolts into muffler's front side. (Eig. 25). Locate muffler front and the two (2) bolts securing it Spark to the engine.
  • Page 18 CARBURETOR SETTING Idle Speed Adjuster The idle speed adjuster of the engine is adjustable though the Air filter/muffler cover (Fig 27). NOTE: Careless adjustments can seriously damage your unit. An authorized service dealer should make carburetor adjustments. Check Fuel Mixture Old and/or improperly mixed fuel is usually the reason for the unit not running properly.
  • Page 19 CLEANING THE UNIT STORAGE Store the unit indoors, away from moisture and harmful substances such as fertilizers and solvents. injury, always turn the unit off and allow it Never store the unit with petrol (gasoline) in the tank to cool before you clean or perform any ARNING: TO avoid serious personal maintenance on it.
  • Page 20 CAUSE ACTION Fill fuel tank Empty fuel tank Primer bulb wasn't pressed enough Press primer bulb fully and slowly 5-7 times Engine flooded Use starting procedure with choke control in the RUN position, Pg. 11 Drain fuel tank / Add fresh fuel mixture Old or improperly mixed fuel Fouled spark plug Replace or clean the spark plug...
  • Page 21 Engine Type ..............Air-Cooled, 2-Cycle Displacement ................31 cc Operating ..............6,600-8,000 Idle Speed RPM ..............3,800-4,200 Ignition Type ................. Electronic On/Off Stop Control ............Momentary Rocker Switch Spark Plug Gap .............. 0.020 inch (0.5 mm) Lubrication ..............Fuel/Oil Mixture Fuel/Oil Ratio ................
  • Page 23 EPA Emission Control Warranty Statement Your Warranty Rights and Obligations The Environmental Protection Agency and MTD SOUTHWEST INC (MTD) are pleased to explain the emission control system warranty on your 2002 and later small off-road engine. New small off-road engines must be designed, built and equipped to meet stringent anti-smog standards.
  • Page 24 MTD's authorized channels of export distribution. Chandler, AZ 85226 U.S.A. MTD reserves the right to change or improve the design of any RYOBI Product without assuming any obligation modify any product previously manufactured. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. FOR QUESTIONS CALL 1-800-345-8746 IN U.S.
