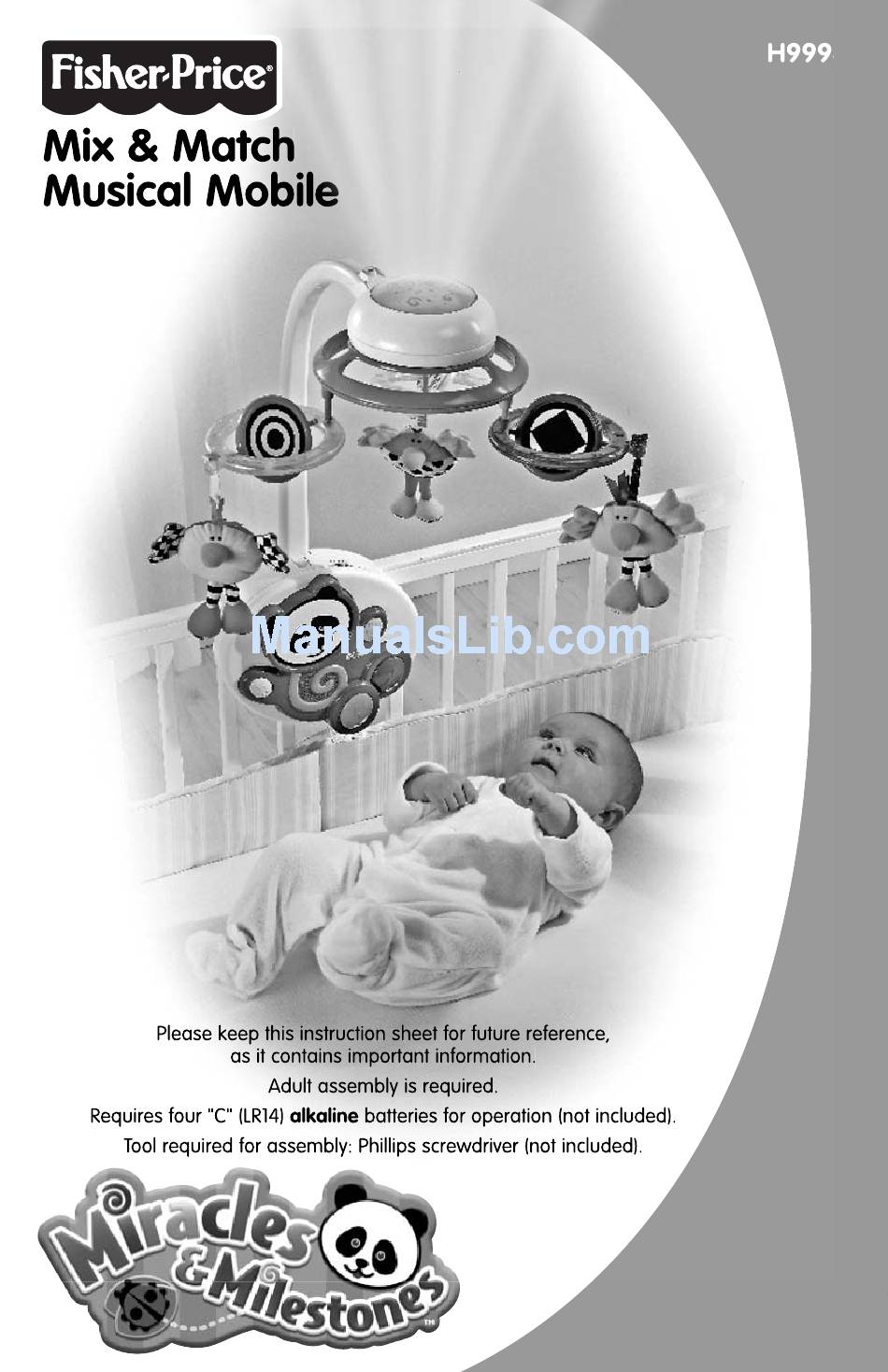

H9998
Mix & Match
Musical Mobile
Please keep this instruction sheet for future reference,
as it contains important information.
Adult assembly is required.
Requires four "C" (LR14) alkaline batteries for operation (not included).
Tool required for assembly: Phillips screwdriver (not included).
www.fi sher-price.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fisher-Price MIRACLES&MILESTONE H9998
Summary of Contents for Fisher-Price MIRACLES&MILESTONE H9998
- Page 1 H9998 Mix & Match Musical Mobile Please keep this instruction sheet for future reference, as it contains important information. Adult assembly is required. Requires four "C" (LR14) alkaline batteries for operation (not included). Tool required for assembly: Phillips screwdriver (not included). www.fi...
- Page 2 3 Soft Toys Frame Note: Tighten and loosen all screws with a Phillips screwdriver. Do not overtighten. • Possible entanglement injury. Keep out of baby's reach. • Remove mobile portion from crib or playpen when baby begins to push up on hands and knees. This toy contains small parts in its unassembled state.
-
Page 3: Battery Installation
Battery Compartment Door • Locate the battery compartment door on the back of the base. • Loosen the screws in the battery compartment door and remove the battery compartment door • Insert four "C" (LR14) alkaline batteries. Hint: We recommend using alkaline batteries for longer life. •... -
Page 4: Battery Safety Information
Battery Safety Information In exceptional circumstances, batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage: • Do not mix old and new batteries or batteries of different types: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium). •... - Page 5 Assembly • Fit the crib adapter to • Tighten the three screws Crib Adapter • Fit the peg on a disc onto Disc • Tighten the screw in the • Repeat this procedure to Frame the base. in the crib adapter. one of the posts on the frame, as shown.
- Page 6 Assembly • Fit the dome into the end of the arm. • Tighten the screw in Dome the dome. • "Snap" the frame to the underside of the dome, as shown. Dome Frame...
- Page 7 Assembly • Slide the arm into the opening in top of the base. • Tighten the screw in the arm. You can attach the soft toys to either the mobile (over baby's head) or to the base (inside the crib). Mobile Attachment •...
- Page 8 Base To prevent entrapment of baby's head, keep distance between the bottom of the product and the crib mattress Bottom of Toy At least 7 inches Crib Attachment Crib Top Rail Clamp WARNING to at least 7 inches. Mattress • Fit the base on the crib top rail, so that the threaded peg extends outside the crib.
- Page 9 Lights, Sounds and Gentle Motions Enjoy projected lights on baby's ceiling, soft music and gentle motions. Press to turn lights on or off. Press to choose lullabies. Locate the mode switch on the top of the base. Slide the switch to one of the following positions: Enjoy about 10 minutes of soft lights, motions and music at higher volume.
- Page 10 Change to a Crib Side Music Box When baby outgrows the mobile, follow these steps to convert to a music box with ceiling projection. Bottom View • Slide the latches on the underside of the dome and pull to remove the frame.
- Page 11 Change to a Crib Side Music Box • Loosen the screw in the dome and remove the dome from the arm. Set the arm aside. • Slide the dome into the slot in the top of the base so that the dome faces away from the crib.
-
Page 12: Fcc Statement (United States Only)
ASIA - Mattel East Asia Ltd, Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2006 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.
