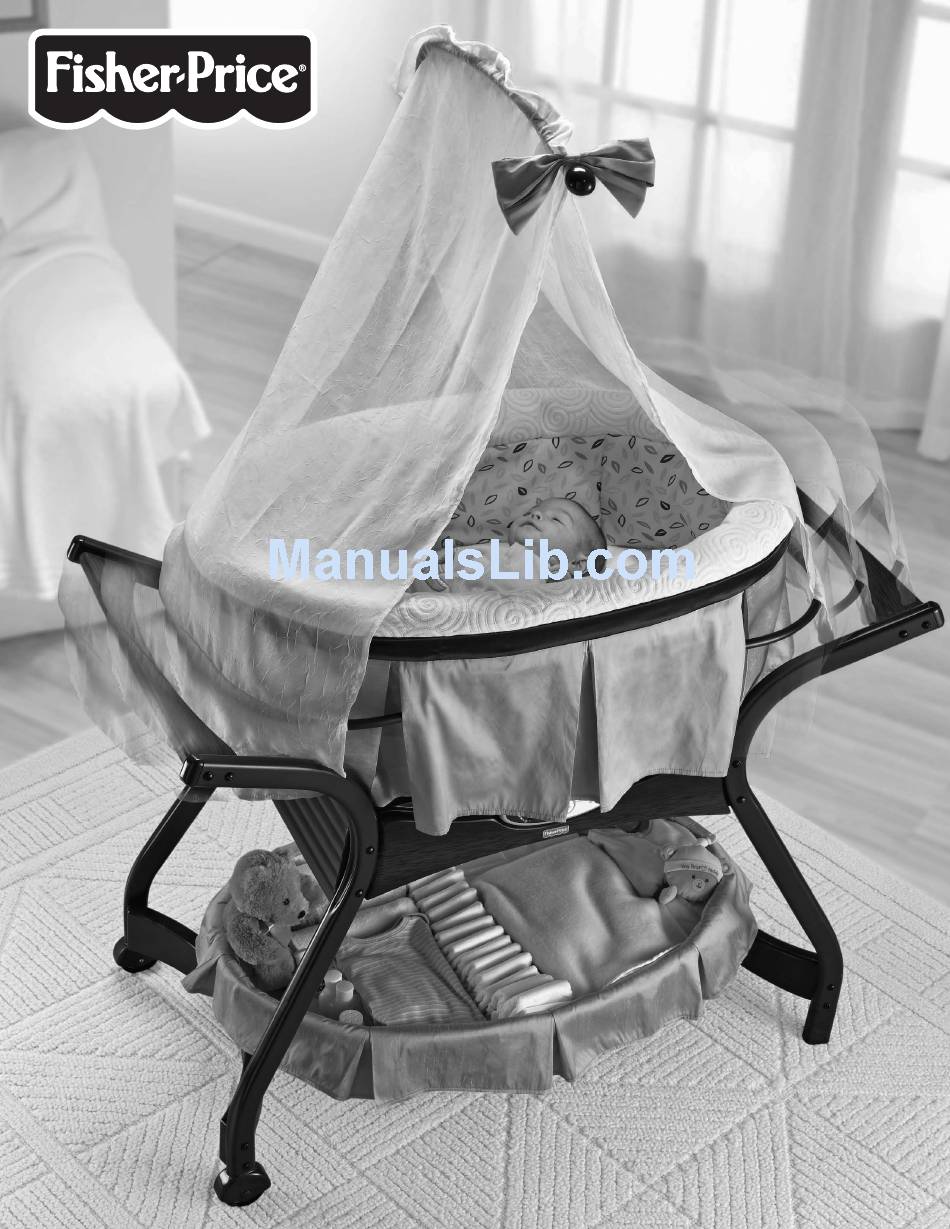

- Page 1 L7836 L7836 www.fisher-price.com www.fisher-price.com...
- Page 2 WARNING Failure to follow these warnings and the instructions could result in serious injury or death. • SUFFOCATION HAZARD - Infants can suffocate: - in gaps between an extra pad and the side of the product. - on soft bedding - NEVER add a mattress, pillow, comforter, or padding. Use ONLY the pad provided by Fisher-Price ® • FALL HAZARD - To prevent falls, DO NOT use this product when infant begins to push up on hands and knees or has reached 25 lbs (11.3 kg), whichever comes first. • Strings can cause strangulation! NEVER place items with a string around a child’s neck such as hood strings or pacifier cords. NEVER suspend strings over product or attach strings to toys.
- Page 3 IMPORTANT! Please remove all parts from the package and identify them before assembly. Some parts may be packed in the bassinet/storage basket. Storage Basket Storage Basket Bottom Bassinet with Canopy Sheet Handles 2 Braces Parts Legs Lower Canopy Tube 2 Large Diameter Tubes #8 x M6 x 40 mm Screw – 0 Note: Tighten or loosen the screws with a Phillips screwdriver or an Allen wrench. Do not over-tighten the screws. Allen Wrench Base Legs with Wheels 2 Small Diameter Tubes...
- Page 4 CAUTION This package contains small parts in its unassembled state. Adult assembly is required. IMPORTANT! Before assembly and each use, inspect this product for damaged hardware, loose joints, torn fabrics, missing parts or sharp edges. DO NOT use if any parts are missing or broken. Contact Fisher-Price for replacement parts and instructions if ® needed. Never substitute parts. Leg with Wheel Base Hint: There are numbered labels on each leg and in each corner of the base. You will match the number on each leg to the number in each corner on the base.
- Page 5 Storage Basket Supports Storage Basket Bottom • Place the storage basket bottom on a flat surface. • Align the hole in each storage basket support with the holes in the storage basket bottom. • Fit the groove in a storage basket support onto the storage basket bottom. • Repeat this procedure to attach the other five storage basket supports to the storage basket bottom. • Insert a #8 x " screw into each storage basket support and tighten with a Phillips screwdriver. Assembly Storage Basket Brace • Slide the storage basket onto the braces, as shown. • Insert two #8 x " screws into the storage basket supports on each end of the storage basket. Tighten the screws with a Phillips screwdriver. • Position the storage basket skirt over and around the top edge of the storage basket.
- Page 6 Large Diameter Tubes Bassinet • Carefully turn the bassinet over and place on a flat surface. • Locate the large diameter tubes. • While pressing a button on a large diameter tube, insert it into a socket on one end of the bassinet. Push the tube until you hear a "click". Hint: The large diameter tubes will only fit in the large diameter sockets on the bassinet. If the tubes do not seem to fit, try another socket on the bassinet. • Repeat this procedure to assemble the other large diameter tube to the bassinet.
- Page 7 Hole Handle Hole • Position a handle so that the curved edge is down. • Fit a handle to the upper end of two legs, as shown. • Insert an M6 x 40 mm screw into the hole in the top of each leg. Tighten each screw with the Allen wrench. • Repeat this procedure to assemble the other handle to the assembly. Assembly Ring Ring • Locate the ring on one side of the bassinet. • While pressing the button on the end of the lower canopy tube, insert it into the ring on the bassinet Hint: If the lower canopy tube does not seem to fit into the ring, turn it over and try again! • Insert the end of the lower canopy tube into the socket in the bassinet . Push the tube until you hear a "click". Pull up on...
- Page 8 Upper Canopy Tube Lower Canopy Tube PRESS PRESS • Lift the upper canopy tube and smooth the canopy around the upper canopy tube. • While pressing the button on the lower canopy tube, fit the upper canopy tube onto the lower canopy tube. Push until you hear a "click". • Pull up on the upper canopy tube to be sure it is secure. Assembly • Fit the pad into the slot in the sheet. • Place the pad with sheet into the bassinet. Sheet Pad with Sheet...
-
Page 9: Battery Installation
Battery Compartment 1.5V x 4 "D" (LR0) • Locate the battery compartment on the back of the base. Hint: Align the notch in the base with the screw for easier access to the battery compartment. • Loosen the screws in the battery compartment door with a Phillips screwdriver. • Insert four “D” (LR20) alkaline batteries into the battery compartment. • Replace the battery compartment door and tighten the screws. Note: Low battery power may cause product movement to slow, sound to become faint or product to turn off all together. If this should happen, replace the batteries with four alkaline "D" (LR20) batteries. • P rotect the environment by not disposing of this product with household waste (2002/96/EC). Check your local authority for recycling advice and facilities (Europe only). Battery Installation Battery Safety Information In exceptional circumstances, batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid... - Page 10 WARNING Failure to follow these warnings and the instructions could result in serious injury or death. • SUFFOCATION HAZARD - Infants can suffocate: - in gaps between an extra pad and the side of the product. - on soft bedding - NEVER add a mattress, pillow, comforter, or padding. Use ONLY the pad provided by Fisher-Price ® • FALL HAZARD - To prevent falls, DO NOT use this product when infant begins to push up on hands and knees or has reached 25 lbs (11.3 kg), whichever comes first. • Strings can cause strangulation! NEVER place items with a string around a child’s neck such as hood strings or pacifier cords. NEVER suspend strings over product or attach strings to toys.
- Page 11 Gliding Bassinet Music and Sounds Power/Volume Switch Music and Sounds Buttons Glider • Turn the power/speed dial to begin gliding. Hint: In most cases, a slower setting works best for a smaller child, while a faster setting works best for a larger child. If gliding stops while using a slow setting, try a faster setting. Give the seat a light push to start the gliding motion again.
- Page 12 Delegación Tlalpan, C.P. 14020, México, D.F. R.F.C. MME-920701-NB3. CHILE Mattel Chile, S.A., Avenida Américo Vespucio 501-B, Quilicura, Santiago, Chile. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052, U.S.A. ©2008 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.
