Operator's Manual
LAWN & GARDEN EQUIPMENT
• k
Guia de Instalaci6n Rapida
Model
Number
Description
107.289850
m
TRACTOR-PGT9500
30/54" CRAFTSMAN
2WD
EYE PROTECTION
BAND CUTTER
WRENCHES
7/16"
....
9/16"
_
112-
15/16-
15/16-
CLOTH
(checking oil)
TIRE PRESSURE
GAUGE
WORK GLOVES
CUTTING SAW
(optional)
STRAP/ROPE
LOCKING PLIERS
MEASURING TOOL
(4 inch stiff cardboard)
mower
blade
MARKING PEN
Uncrating
I
READ THE OPERATOR'S
MANUAL
BEFORE
OPERATING
THE UNIT.
Engines
emit carbon
monoxide.
DO NOT run in enclosed
area.
IMPORTANT
NOTE: When cutting crate from
bottom skid, use caution around tractor tires.
1750738
Revision A
Advertisement
Table of Contents
Related Manuals for Craftsman PGT9500 107.289850
Summary of Contents for Craftsman PGT9500 107.289850

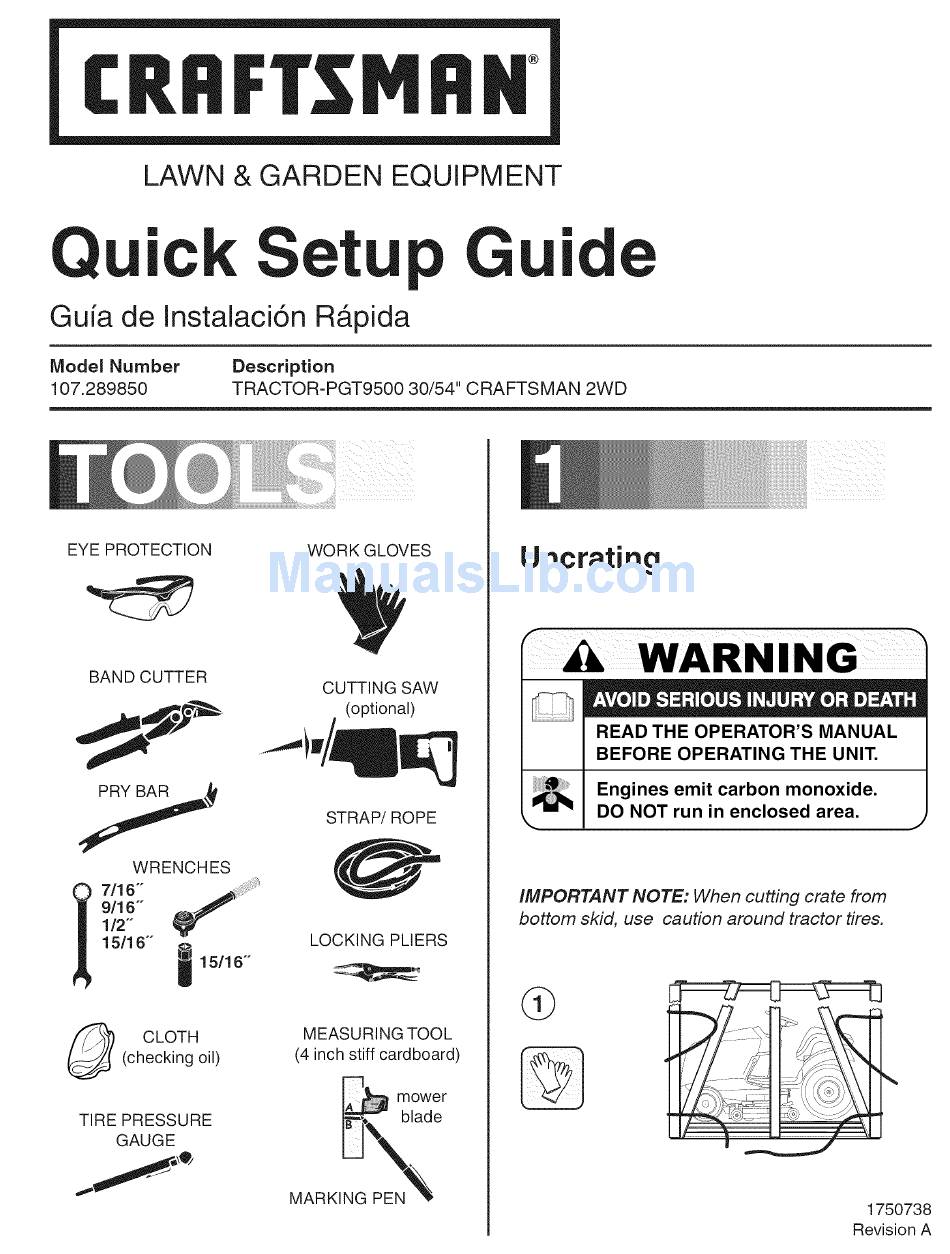

- Page 1 LAWN & GARDEN EQUIPMENT • k Guia de Instalaci6n Rapida Model Number Description 107.289850 TRACTOR-PGT9500 30/54" CRAFTSMAN EYE PROTECTION WORK GLOVES Uncrating BAND CUTTER CUTTING SAW (optional) READ THE OPERATOR'S MANUAL BEFORE OPERATING THE UNIT. Engines emit carbon monoxide. DO NOT run in enclosed area.
-
