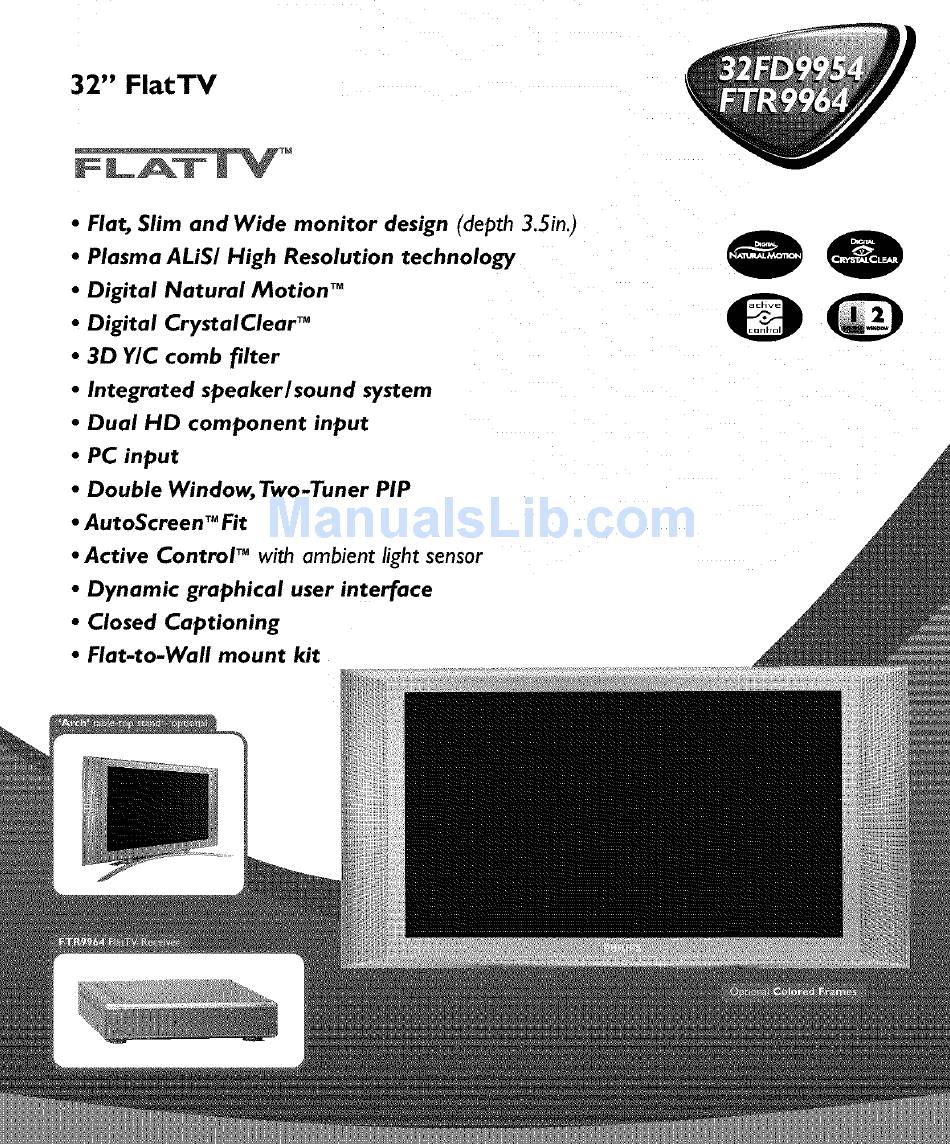

: 48 _x40 ftx20 _ in Auto Screen Fit,Auto Sur{,Auto Pit tu re, AUm Sound, A Divis{o_ o5 Phillps Electronics North http:l/www, philips.com _ce£ver carton :255 x 85 x 187S in. EasyTu no,Active Cant rol, Inen_'dible Su m0u nd and America Corp.
Page 3
MountingWall Bracket Note: the enclosed template can be used for general positioning only (f,g. 1). Mounting to sheetrock wall Note: Bracket can only be used with standard 16" spaced wood wall studs. fig.1 Bracket must be positioned so that the bracket is fastened firmly to studs at each end.
Page 4
Mounting to concrete wall Determine desired location to mount Display Unit. Use the enclosed template for alignment purposes. (fig. 1) With the Wall Bracket held in place, ensure it is properly leveled. Then, mark where the four holes must be drilled. (fig. 4) Remove the Wall Bracket, and using a 5/8"...
Page 5
While holding the plastic pull ring, slide the plastic retaining sleeve towards the wall until it fits into the hole in the wall. This will hold the toggle bolt in the wall while theWall Bracket is mounted (refer Fig. 4 to Figure 4).
Page 6
With a 1/2" drill bit, drill the four holes. A smaller pilot hole may be required if the 1/2" drill bit bends the metal stud instead of piercing Fig. 3 Hinge the plastic legs of the toggle bolt into the channel of the metal end of the toggle bolt so it can fit into the 1/2"...
Page 8
Once your PHILIPS purchase is registered, you're eligible to receive all the privileges of owning a PHILIPSproduct. So complete and return the Warranty Registration Card enclosed with your purchase at once, and take advantage of these important benefts. Know these...
IMPORTANT SAFETY INSTRUCTIONS Read before operating equipment Read these instructions. Damage Requiring Service -The appliance should be serviced by qualified service personnel when: Keep these instructions. The power supply cord or the plug has been damaged; or Heed all warnings. Obieets have fallen, or liquid has been spilled into the Follow all instructions.
Unpacking and wall mounting instructions For the unpacking instructions follow the illustrated steps printed on the packaging (outside and inside). For the wall mounting instructions follow the illustrated steps O to O printed on the separate template and in the supplied booklet.
C Use of the remote control press repeatedly to select your Computer connected to the VGA I or 2 connector or to the OVI.O connector. to switch to standby or on again AVI, AV2, AV3 press to select the peripherals connected to the connector indicated on the monitor.
( Use of the menus and the menu system Press MENU button remote control to summon different menu headers. Press cursor left/right move cursor horizontally through menu headers. Press cursor down to access menu. in case of a slider, move cursor left/right adjust.
SD video-mode Picture 2 menu Zoom Select Zoom On to activate the zoom function. You may also activate the zoom function with the ZOOM ON/OFF button on the remote control. If no zoom is active, press the cursor left/right, up/down to select which part of the screen will be zoomed.
Sound menu Volume This control allows you to adjust the volume level of the sound from the speakers. Bass Bass attenuates or amplifies the low-frequency response of the sound from the loudspeakers. Treble Treble attenuates or amplifies the high-frequency response of the sound from the loudspeakers.
Connect Peripheral Equipment You may connect 3 possibleVGA sources (VGAI, VGA2 or DVI.D) and 3 possible video sources (AVl, AV2 and AV3) to the monitor. The following diagrams show you where you can connect your peripheral equipment. Note: in case the monitor is operating in combination with a TV receiver box (TV mode), the AV inputs on the monitor will be disabled and the VGA2 connector becomes an output.
Page 17
High Definition equipment with VGA connector Connect theVGA output of your equipment to the VGA2 connector• Connect the audio cables to the equipment's AUDIO L and R sockets and to the VGA2AUDIO L and R sockets on the monitor. NoLe:you should select HD IN for VGA2in the Setup menu (See p, 8) Digital DVI output of your PC (DVI-D) or DVD player...
Page 18
Up to an altitude of 6562 ft above sea- level,the display is functioning fine. Philips is paying a lot of attention to Do not hang up the monitor above a Operating the set at a higher altitude, the produce environmentally-friendly in green central heating or other heating sources.
